Neutrik | NL4MPR - SpeakON 4P Chassis Connector Female Black

Neutrik | NL4MPR

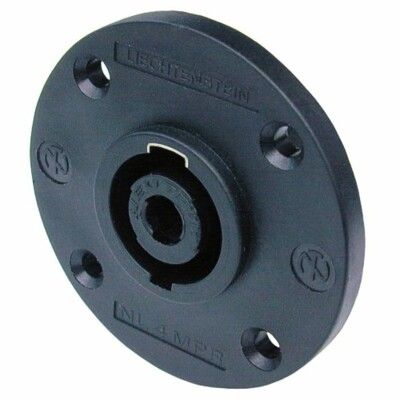

4 pole chassis connector, black round G-size flange, countersunk thru holes, 3/16" flat tabs

The speakON panel mount connectors are the standard chassis connectors for loudspeaker / amplifier interconnections. They feature a unique metal locking system, making contact only once fully locked. The speakON receptacles are robust, versatile and easy to terminate.

Features

• Current rating 30 A rms
• Glass reinforced materials make it extremely robust and dependable
• Precise keyway for secure mating
• Accurate twist lock latching system
• Metal insert in locking area
• Airtight design - optimized for speaker applications

• Product: NL4MPR
• Connection Type: speakON
• Gender: male

Electrical

• Contact resistance: ≤ 3 mΩ (after lifetime)
• Dielectric strength: 4 kVdc (peak)
• Insulation resistance: > 1 GΩ (after dampheat)
• Rated current per contact: 30 A rms continuous
• Rated current per contact: 40 A audiosignal, duty cycle 50 %
• Rated voltage: 250 V AC
• Attention: speakON is NOT to be used as an AC mains or power supply connector!

Mechanical

• Lifetime: > 5000 mating cycles
• Wiresize:
• Locking device: Quick Lock
• Chassis shape: round G-size flange
• Layout: four thru holes

Material

• Contact plating: 4 µm Ag
• Contacts: Bronze (CuSn6)
• Shell: Polyamide (PA 6 30 % GR) black

Environmental

• Flammability: UL 94 HB
• Solderability: Complies with IEC 68-2-20
• Temperature range: -30 °C to +80 °C
