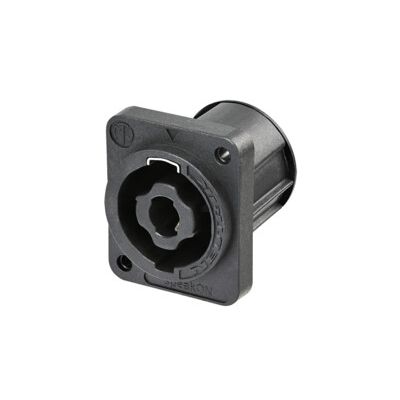

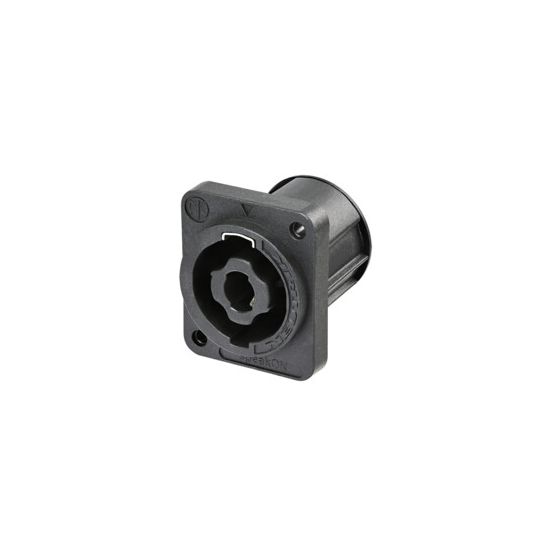

Neutrik | NL4MDXX-V-2 - 4 pole speakON chassis conn male

Neutrik | NL4MDXX-V-2

This connector is fully compliant to the device standard IEC 62368-1, due to its component certification according to IEC 61984.

4 pole chassis connector, black D-size flange, mirrored self tapping screw holes (A-screw), vertical PCB mount.

The speakON panel mount connectors are the standard chassis connectors for loudspeaker / amplifier interconnections. They feature a unique metal locking system, making contact only once fully locked. The speakON receptacles are robust, versatile and easy to terminate.

Features

• IEC 61984 certified > IEC 62368-1 compliant
• Glass reinforced V-0 materials make it extremely robust and dependable
• Precise keyway for secure mating
• Accurate twist lock latching system
• Metal insert in locking area

• Product: NL4MDXX-V-2
• Gender: Male

• Contact resistance: ≤ 2 mΩ
• Dielectric strength: 2.8 kVac
• Insulation resistance: > 0.1 GΩ (after dampheat)
• Rated current per contact: 25 A rms continuous (audio rating significantly higher, depending on signal)
• Rated voltage: 250 V AC
• Attention: speakON is NOT to be used as an AC mains or power supply connector!

• Lifetime: > 5000 mating cycles
• Wiring: Vertical PCB mount
• Locking device: Quick Lock
• Mounting direction: Rear mounting
• Chassis shape: D
• Layout: Mirrored hole position, self tapping screw holes (A-Screw)

• Contact plating: Ag
• Locking element: Stainless Steel
• Shell: Polyamide (PA 6.6)
• Contacts: Copper Alloy
• Shell coating: Black KTL

• Flammability: UL 94 V-0
• Temperature range: -30 °C to +80 °C
