Neutrik | NE8FDV-B-TOP - EtherCON D Chassis Female

Neutrik | NE8FDV-B-TOP - EtherCON D Chassis Female

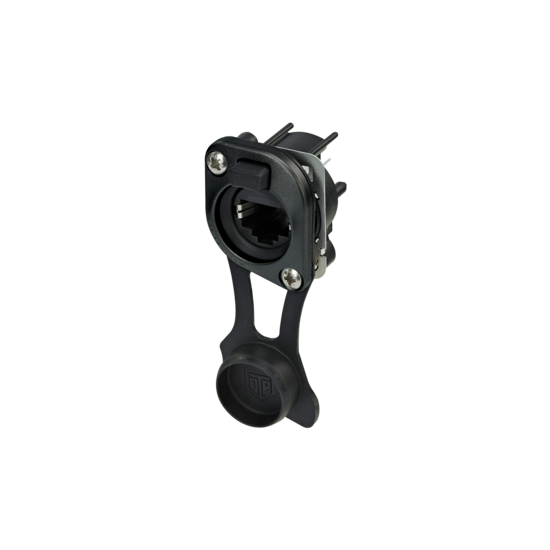

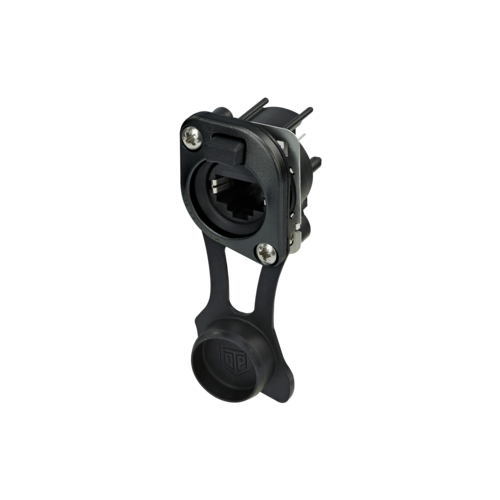

Vertical PCB panel mount RJ45 receptacle, combined with sealing kit SE8FD-TOP, max. panel thickness 4 mm, mounting screws included.

The etherCON series is a ruggedized and lockable RJ45 connector system, optimized for pro audio, video and lighting network applications with IP65 rating. The chassis connectors are shaped to fit into standardized panels out of the entertainment industry. The D-series offers the most rugged design of the etherCON series and is perfectly suitable for panel mount and the installer market.

Attention: Does not intermate with CAT6 cable connector NE8MC6-MO and NKE6S* cables.

Features

• IP rating: IP65 (in combination with etherCON TOP Connector or sealing cap closed)
• Features: Uses high impact UV-resistant and gasket materials
• Compatibility: Useable with any standard RJ45 plug
• Category: CAT5e / Class D according to TIA/EIA 568C and ISO/IEC 11801
• Locking system: Approved latch lock system
• Grounding: Ground panel connection
• Mounting: Mountable from the front of the panel
• PoE support: PoE type 4 class 8 (100W) acc. IEEE 802.3bt

Product

• Title: NE8FDV-B-TOP
• Type: Chassis
• Connection Type: etherCON
• Gender: Female

Electrical

• Contact resistance: < 50 mΩ
• Dielectric strength: 1 kVdc
• Frequency range: 1 – 100 MHz
• Insulation resistance: > 0.5 GΩ
• Rated current per contact: 1.5 A
• Rated voltage: ≤ 57 V
• Transmission performance: CAT5e acc. to TIA/EIA 568C channel specifications, CLASS D acc. to ISO/IEC 11801 channel specifications
• Power over Ethernet: PoE type 4 class 8 (100W) acc. IEEE 802.3bt

Mechanical

• Insertion force: ≤ 20 N
• Withdrawal force: ≤ 20 N
• Lifetime: > 1000 mating cycles
• Panel thickness: 2 mm – 4 mm, 0.08” – 0.16”
• Wiring: Vertical PCB mount
• Locking device: Latch lock
• Chassis shape: D
