Neutrik - NE8FDH-C5E - ETHERCON D-SER.CHAS.CON. H C5E

Neutrik | NE8FDH-C5E - EtherCON Chassis D Connector Female

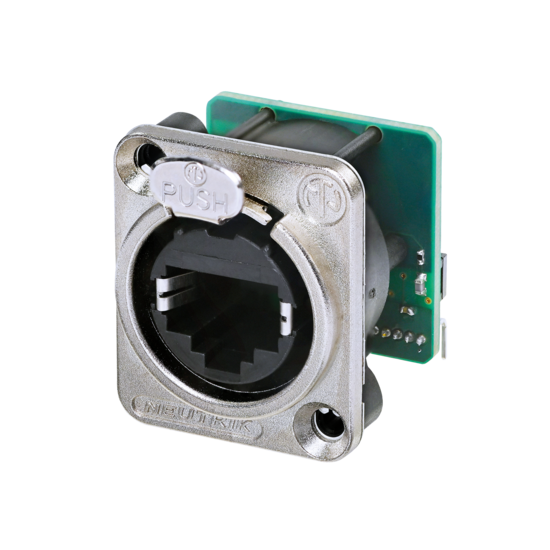

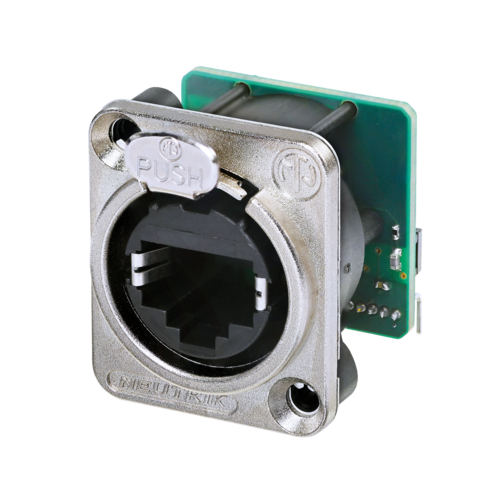

Horizontal C5e component compliant PCB panel mount RJ45 receptacle, D-shape metal flange with latch lock, max. panel thickness 4 mm, mounting screws not included.

The etherCON Series is a ruggedized and lockable RJ45 connector system, optimized for pro audio, video and lightning network applications. The chassis connectors are shaped to fit into standardized panels out of the entertainment industry.
The D-Series offers the most rugged design of the etherCON series and is perfectly suitable for panel mount and the installer market.

Attention! Does not intermate with CAT6 cable connector NE8MC6-MO and NKE6S* cables.

• Accommodates NE8MC* or any standard RJ45 plug
• CAT5e / Class D according to TIA/EIA 568C and ISO/IEC 11801
• Approved latch lock system
• Mountable from the front or rear of the panel
• Ground-panel connection
• PoE type 4 class 8 (100W) acc. IEEE 802.3bt

• Product: NE8FDH-C5e
• Gender: Female

• Contact resistance: < 50 mΩ
• Dielectric strength: 1 kVdc
• Frequency range: 1 - 100 MHz
• Insulation resistance: > 0.5 GΩ
• Rated current per contact: 1.5 A
• Rated voltage: ≤ 57 V
• Transmission performance: CAT5e acc. to TIA/EIA 568C channel specifications
• CLASS D acc. to ISO/IEC 11801 channel specifications
• Power over Ethernet: PoE type 4 class 8 (100W) acc. IEEE 802.3bt

• Insertion force: ≤ 20 N
• Withdrawal force: ≤ 20 N
• Lifetime: > 1000 mating cycles
• Panel thickness: max. 4 mm 0.16'
• Wiresize: Horizontal PCB mount
• Locking device: Latch lock
• Chassis shape: D

• Contact plating: 0.2 µm Au over Ni plating
• Contacts: Bronze (CuSn8)
• Insert: PBTP 15 % GR
• Shell: Zinc diecast (ZnAl4Cu1)
• Shell plating: Nickel
• Locking element plating: Nickel

• Flammability: UL 94 V-0
• Solderability: Complies with IEC 68-2-20
• Temperature range: -30 °C to +80 °C
• Standard compliance: ISO/IEC 11801-1 Ed. 1.0 (2017-11)
• IEC 60603-7-3 Ed.2.0 (2010-04)
• IEC 60512-99-002 Ed.2.0 (2022-01)
• IEC 60512-9-3 (2011-06)
