Neutrik | NC3FDM3LBAG-1 - XLR Chassis D Conn. 3 Pole Female

Neutrik | NC3FDM3LBAG-1 - XLR Chassis D Conn. 3 Pole Female

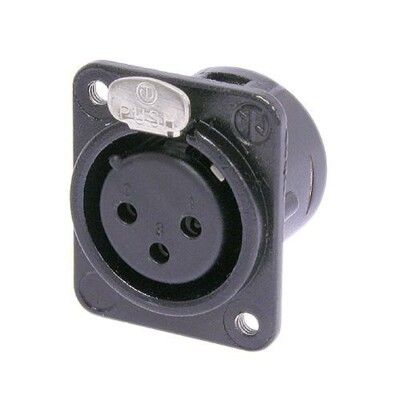

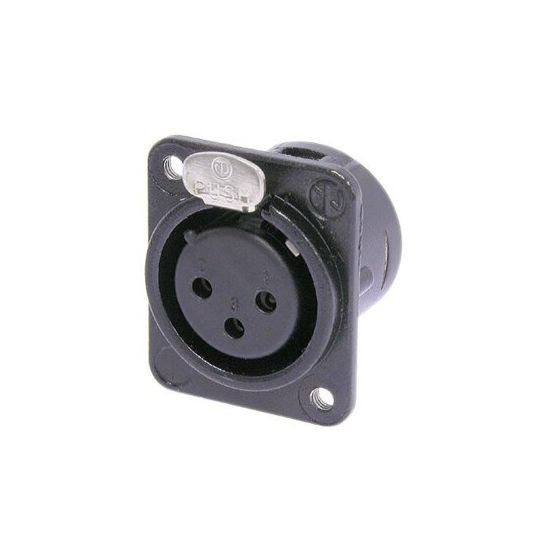

3 pole female receptacle, solder cups, black metal housing, silver contacts, M3 mounting holes.

Universal D-size metal body XLR panel mount series. UL recognized component.

• Robust "D" metal shell
• Standardized D sized 24 mm panel cutout
• Solder cups on 3 - 7 pole version

Product: NC3FDM3LBAG-1
Connection Type: XLR
Gender: female

Electrical

• Capacitance between contacts: ≤ 4 pF
• Contact resistance: ≤ 5 mΩ
• Dielectric strength: 1,5 kVdc
• Insulation resistance: > 10 GΩ (initial)
• Rated current per contact: 16 A
• Rated voltage: < 50 V

Mechanical

• Insertion force: ≤ 20 N
• Withdrawal force: ≤ 20 N
• Lifetime: > 1000 mating cycles
• Wiresize: max. 2.5 mm²
• Wiresize: max. 14 AWG
• Wiring: Solder contacts
• Locking device: Latch lock
• Mounting direction: Rear mounting
• Chassis shape: D
• Mounting: Mounting holes with M3 threads

Material

• Contact plating: 2 µm Ag over 2 µm Ni
• Contacts: Bronze (CuSn8)
• Insert: Polyamide (PA 6.6 30 % GR)
• Locking element: Steel Ck67
• Locking element plating: Nickel
• Shell: Zinc diecast (ZnAl4Cu1)
• Shell plating: Black chromium

Environmental

• Approvals: UL
• Flammability: UL 94 HB
• Standard compliance: IEC 61076-2-103
• Protection class: IP 40
• Solderability: Complies with IEC 68-2-20
• Temperature range: -30 °C to +80 °C
