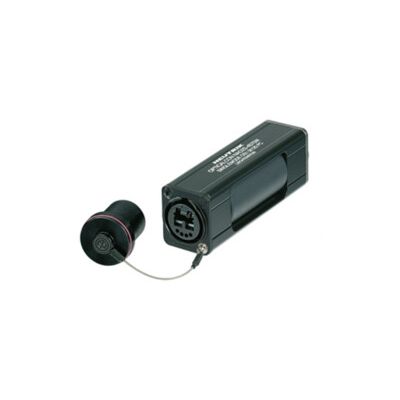

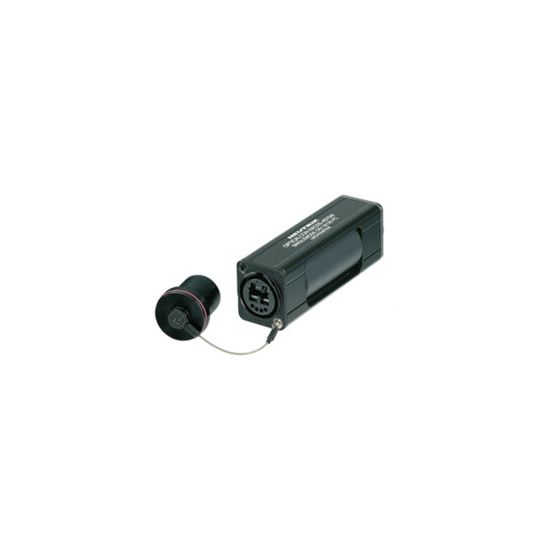

Neutrik | NAO2M-H1W-A - opticalCON DUO coupler MM black

Product: NAO2*-H1W-A
Connection Type: Adapter
Gender: female

Electrical

• Contact resistance: < 7 mΩ
• Dielectric strength: 1,5 kVdc
• Insulation resistance: > 2 GΩ (initial)
• Rated current per contact: 6 - 10 A (Contact 1+4 10 A, Contact 2+3 6 A)
• Rated voltage: < 50 V (1)

Mechanical

• Insertion force: < 45 N
• Withdrawal force: < 45 N
• Lifetime (typ.): 1000 mating cycles
• Locking device: Push-Pull

Material

• Contact plating: 0.2 µm Au over 2 µm Ni
• Contacts: Bronze (CuSn6)
• Insert: Polyamide (PA 6, PBT 30 % GR, PBT 50 % GR)
• Shell: AlMgSi 0.5, black plated
• Split sleeve: ceramics

Environmental

• Temperature range: -30 °C to +80 °C
• Protection class: IP65

Optical

• Insertion loss: < 0.4 dB / connection
• Optical connector: LC-Duplex
