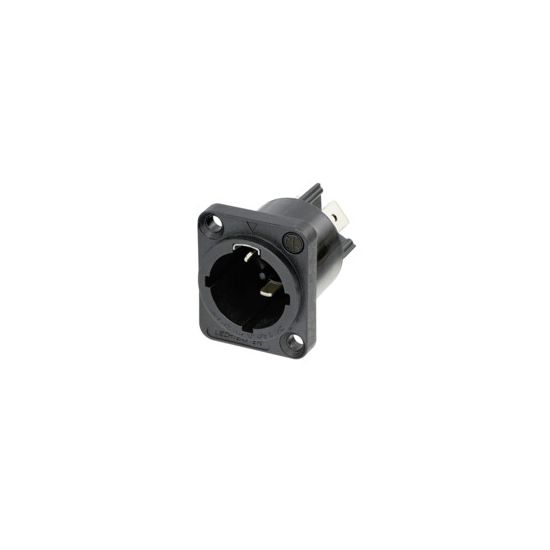

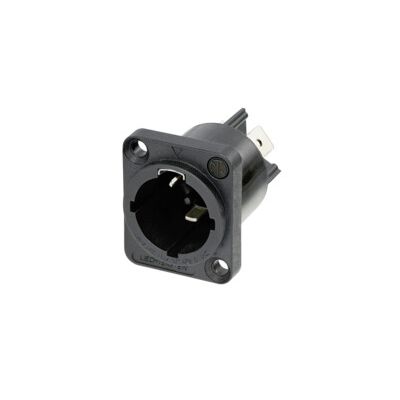

Neutrik | NAC3MPX-TOP

Appliance inlet connector, 1/4" flat tab terminals

The powerCON TRUE1 TOP is a locking 16 A true mains connector for outdoor applications. It replaces appliance couplers wherever a very rugged solution in combination with a locking device is needed in order to guarantee a safe power connection.

The powerCON TRUE1 TOP is a connector with breaking capacity (CBC), i.e. it can be connected or disconnected under load or live.

Features

• Heavy duty sealed power connector for harsh and demanding environment
• IP65, UL50E enclosure type4 rating in combination with SCNAC-MPX(mated or with closed cap)
• Uses high impact UV-resistant materials
• True mains connector with breaking capacity (CBC)
• Lockable 16 A single phase connector (USA: 20 A)
• Easy and reliable twist lock system
• Extremely robust and reliable
• Unique Neutrik cable retention
• ENEC certified according to IEC 60320
• UL498 certified

• Product: NAC3MPX-TOP
• Connection Type: powerCON TRUE1 TOP

• Contact resistance: ≤ 2 mΩ
• Dielectric strength: 4 kVdc / 2.8 kVac
• Insulation resistance: > 1 GΩ (after damp heat test)
• Number of electrical contacts: 2 + PE
• Rating Europe: EN 60320-1: 16 A 250 V AC
• Rating USA: UL 498: 20 A 250 V AC

• Lifetime: > 5000 mating cycles
• Wire size: 2.5 mm²
• Wire size: 12 AWG

• Contact plating: 2 µm Ag
• Locking element: Stainless steel
• Shell: Polyamide (PA 6.6)
• Contacts: Spring Copper (CuSn0.2)

• Flammability: UL 94 V-0
• Protection class: IP65, UL50E enclosure type 4 rating in combination with SCNAC-MPX (mated or with closed cap)
• Temperature range: -30 °C to +80 °C according to IEC 61984
• Temperature range: -5 °C to +40 °C according to IEC 60320-1
