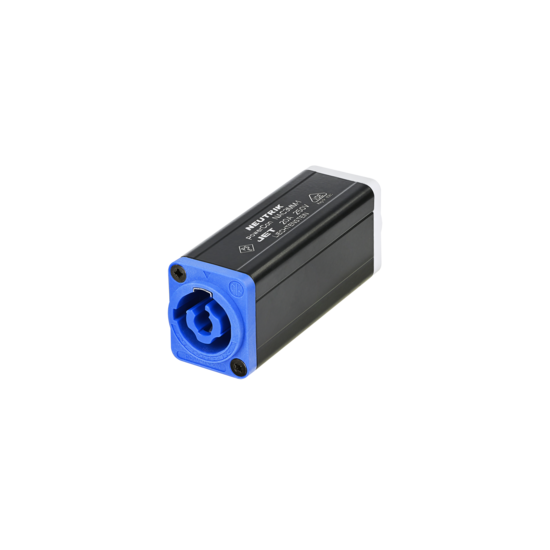

Neutrik | NAC3MM-1 - PowerCON NAC3MPXXA - NAC3MPXXB coupler

Neutrik | NAC3MM-1

powerCON NAC3MPXXA (power in) - powerCON NAC3MPXXB (power out), CBC coupler for linking power cables with NAC3FXXA/B.

• Product: NAC3MM-1
• Connection Type: Adapter
• Gender: Male

• Contact resistance: ≤ 3 mΩ
• Dielectric strength: 4 kVdc
• Insulation resistance: > 0.1 GΩ (after damp heat test IEC 68-2-30)
• Rated current per contact: 16 A rms
• Rated voltage: 250 V AC

• Lifetime: > 1000 mating cycles
• Locking device: Quick Lock

• Contact plating: 2 µm Ag
• Locking element: Steel Ck67
• Shell: Polyamide (PA 6.6 30 % GR)
• Contacts: Bronze (CuNi1Si0.2)

• Flammability: UL 94 V-0
• Protection class: IP 20 (mated)
• Safety requirements: EN/IEC 61984
• Solderability: Complies with IEC 68-2-20
• Temperature range: -30 °C to +80 °C
