Martin - BreakOut Cable PDE-Power-DMX-Ethernet

Martin - BreakOut Cable PDE-Power-DMX-Ethernet

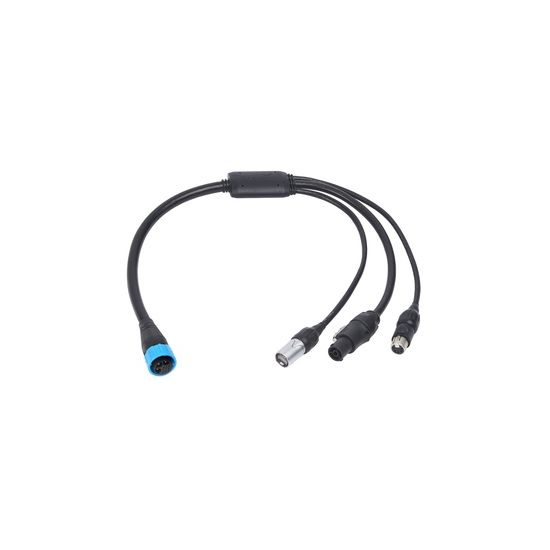

The Martin PDE BreakOut Cable splits Power, DMX & Ethernet signals out from the single connector and cable system as used by the Martin VDO Atomic family of fixtures.

The cable is fully IP65 rated for outdoor use and features robust connectors.

Features

• Martin PDE Hybrid input
• powerCON TRUE1 TOP power output
• XLR 5 TOP DMX output
• etherCON TOP Ethernet output
• IP65 rated

Physical

• Length: 500 mm (19.7 in.)
• Weight: 325 g (0.52 lbs.)

Construction

• Housing: PVC
• Color: Black
• Protection rating: IP65
• Cable Jacket: PVC

Installation

• Location: Indoor or temporary outdoor use
• Orientation: Any

Connections

• AC Power, DMX, and Network input: PDE Hybrid Connector (IP65)
• AC Power out: Neutrik powerCON TRUE1 TOP (IP65)
• Ethernet out: Neutrik etherCON TOP (IP65)
• DMX out: Neutrik XLR 5-pin Female TOP (IP65)
• All connections hot plugging compatible

Electrical

• AC power: 100-240V AC nominal, 50/60Hz

Thermal:

• • Maximum ambient temperature (Ta max.): 75°C
  • Minimum ambient temperature (Ta min.): -15°C

• Environmental:

  • RoHS: Compliant
  • REACH: Compliant
