L-Acoustics - X12

L-Acoustics - X12

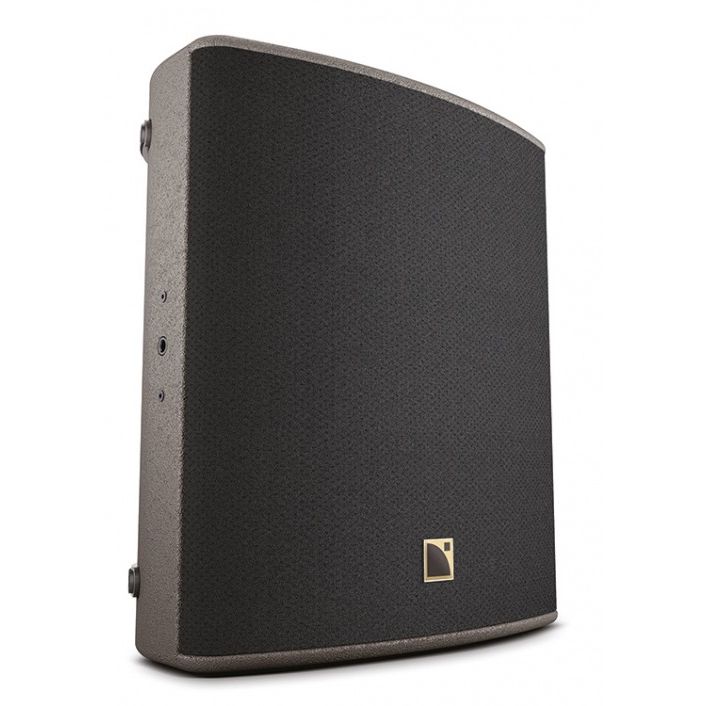

In the L-Acoustics coaxial X series, the X12 is the multipurpose passive enclosure. It operates from 59 Hz to 20 kHz.

The X12 features a 3’’ diaphragm compression driver coaxiallyloaded by a 12’’ low frequency transducer in a bass-reflex enclosure with laminar vents. The internal passive crossover network uses custom filters.

The coaxial transducer arrangement and its ellipsoid acoustic design produces a 90° x 60° directivity pattern with a smooth tonal response free of secondary lobes over the entire frequency range. As a result, the X12 cabinet design makes it perfectly suited to all short throw sound reinforcement applications.

The X12 provides a stage monitoring angle setting of 35° with regard to vertical or 55° thanks to its built-in risers. With a cabinet combining the properties of birch and beech plywood, X12 low weight and elegance makes for an easy integration in any situation. Ergonomic handles for a solid grip and efficient handling. The X12 can be pole-mounted using the integrated socket or flown and tilted in various orientations using its rigging accessories.

The amplified controllers L-Drive parameters ensure the linearization and protection of the transducers.

• Description: Passive 2-way coaxial enclosure, controlled and amplified by LA4X / LA8
• Usable bandwidth (-10 dB): 59 Hz - 20 kHz ([X12][ preset)
• Maximum SPL: 136 dB ([X12] preset)
• Nominal directivity: Vertical: 90°
  Horizontal: 60°
• Monitoring angle: 35° without risers
  55° with risers
• Transducers: LF: 1 x 12" neodymium, bass-reflex, laminar vents
  HF: 1 x 3" neodymium compression driver, ellipsoid waveguide
• Nominal impedance: 8 Ω
• Connectors: IN: SpeakON^®
  LINK: SpeakON^®
• Rigging and handling: 2 x handles
  DIN580-compatible M8 threaded insert
  4 x M10 threaded inserts
  2 x 35 mm pole sockets
• Weight (net): 20 kg / 44.1 lbs
• Cabinet: First grade Baltic birch and beech plywood
• Finish: Dark grey brown Pantone^® 426C
  Pure white RAL^® 9010
  Custom RAL^® code on special order
• IP: IP43
