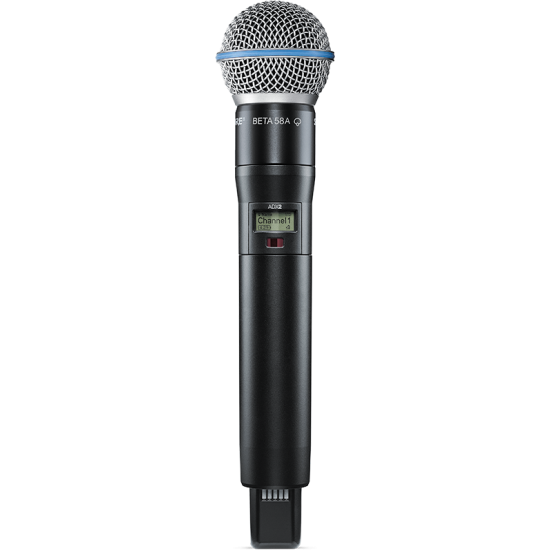

Shure | ADX2/B58 - G56 (470-636 MHz) - Handheld

Shure - ADX2/B58 - G56 (470-636 MHz)

ADX2/B58, like all ADX transmitters, sets the stage for exceptional performance, with wide tuning up to 184 MHz, interference protection, advanced rechargeability, streamlined design, and ShowLink remote control for real-time parameter adjustments right from the booth.

Features

• Ability to transmit RF signal on two discrete carriers
• Optional 50mW High Power mode for driving increased power on a single frequency
• Durable, moisture-resistant, lightweight metal case in black finish
• Up to 6.5 hours of runtime with SB920A rechargeable battery when transmitting on two RF carriers (up to 9 hours battery life when transmitting on a single RF carrier)
• External contacts for docked charging with optional fully covered radome
• Diversity ShowLink enabled for remote transmitter control and automatic interference avoidance
• Two transmission modes: Standard for optimal coverage and new High Density for maximum system channel count and robust coverage
• Encryption-enabled, secure transmission

• Gain Offset Range: –12 to 21 dB (in 1 dB steps)
• Battery Type: SB920 Rechargeable Lithium-Ion
• Battery Run Time@10 mW: up to 9 hours
• Dimensions: 10.0 × 2.0 in
• (L × Dia.): (254 × 51 mm)
• Weight: 11.9 oz (338 g) wihtout battery
• Housing Cast: Aluminum
• Configuration: Unbalanced
• Maximum Input Level: 145 dB SPL, typical (SM58)
• 1 kHz at 1% THD: Note: dependent on microphone type
• Antenna Type: Integrated Single-Band Helical
• Occupied Bandwidth: <200 kHz
• Modulation Type: Shure Axient Digital Propietary
• Power: 2 mW, 10 mW, 20 mW, 40 mW Varies by region. See Frequency Range and Output Power Table.
• Specific Absorption Rate (SAR): <0.19 W/kg
