Sennheiser - XSW 1-ME2-B

Sennheiser - XSW 1-ME2-B

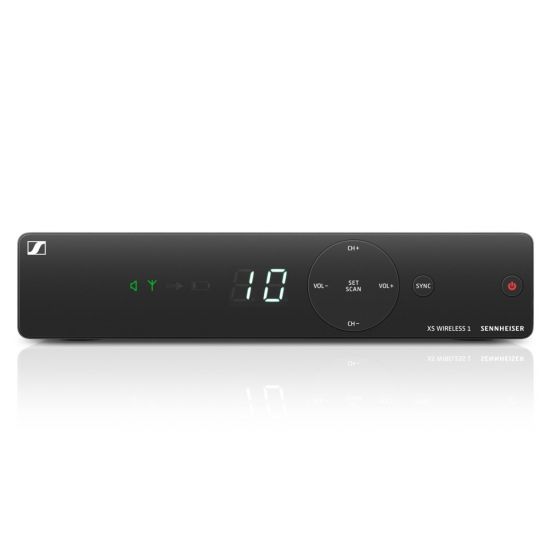

Inspire your audience. Go for XS WIRLESS 1 and rely on a solid wireless transmission with up to 10 compatible channels in a stable UHF band. The XS WIRELESS 1 LAVALIER MIC SET is an easy to use all-in- one wireless system for presenters and moderators, excellent for a powerful and inspiring presentation. The set includes an intuitive stationary receiver for quick set-up and hassle-free handling, as well as a lightweight bodypack transmitter and an unobstrusive clip-on microphone.

• Compact bodypack transmitter, unobstrusive clip-on microphone
• Antenna-switching diversity reception
• Integrated antennas
• Automatic frequency management and synchronization via remote channel for easy setup
• Selectable UHF frequencies within a large bandwidth
• Up to 10 compatible channels

Specifications

Receivers

• Dimensions: approx. 200 x 42 x 127 mm
• Weight: approx. 340g
• Power supply: 12 V DC nom. / 300 mA
• AF frequency response: 50 to 16,000 Hz (–3 dB)

Transmitter

• Dimensions: approx. 71 x 96 x 28 mm
• Weight: approx. 95g
• Power supply: 2 AA size batteries, 1.5 V
• Adjustment Range Transmitter: 0 to -30 dB, adjustable in 10 dB steps
• Microphone: condenser
• THD, total harmonic distortion: ≤ 0.9%
• Pick-up pattern: omni-directional
• Signal-to-noise ratio: ≥ 103 dBA
• RF output power: 10 mW
• Switching bandwidth: up to 24 MHz
• Operating time: approx. 10 hrs
• Modulation: wideband FM
• Output voltage: '1/4“ (6.3 mm) jack socket (unbalanced): +6 dBu, XLR socket (balanced): +12 dBu
• Housing: rugged ABS housing
• Diversity reception: antenna switching diversity via internal antennas
• Frequency: 8 frequency banks, each with up to 10 factory-preset channels
• Frequency range
• • A: 548-572 MHz, GB: 606-630 MHz
  • B: 614-638 MHz, C: 766-790 MHz
  • D: 794-806 MHz
  • E: 821-832 MHz, 863-865 MHz
  • K: 925-937.5 MHz
• Sensitivity: < 3 μV at 52 dB(A)rms S/N
• SPL for peak deviation: 130 dB
• Squelch: adjustable from 3 dBμV to 28 dBμV (combined with pilot tone)
• Synchronization: 2.4 GHz, Low Power OQPSK (only active during synchronization)
• Input sensitivity: 1.5 mV / Pa
• Audio adjustment range: 45 dB, adjustable in 5-dB steps
• Line / Mic level: 20 dB, switchable
• Temperature Range: operation: 0°C to +40°C, storage: –20°C to +70°C
• Receiver Principle: double superheterodyne
