Sennheiser - ADP UHF Antenna (470 - 1075 MHZ)

€ 239,00 Excl. BTW
Beschikbaarheid:
Op aanvraag
Art. code
SE-37.0537

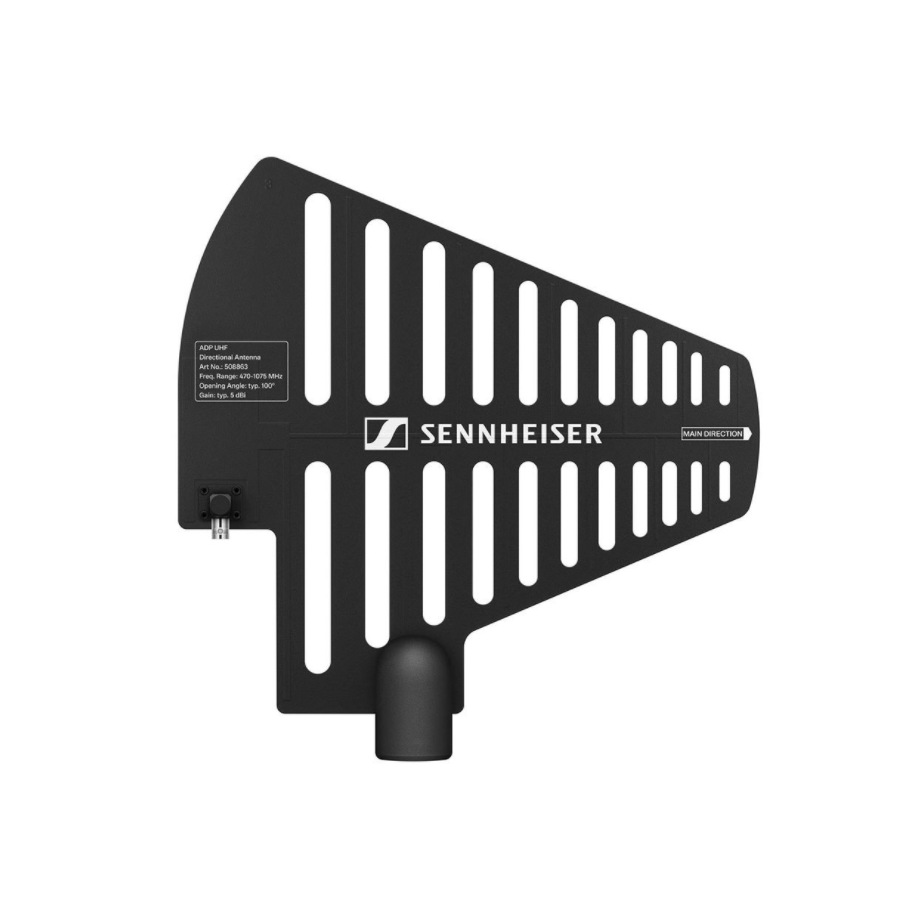

Sennheiser - ADP UHF Antenna (470 - 1075 MHZ)

Passive directional antenna for use with Evolution Wireless Digital systems. The ADP UHF passive directional antenna is the perfect addition for enhancing the wireless performance of your Evolution Wireless Digital system. The ⅝" and ⅜" threads make it easy to mount on any mic stand. The ADP UHF can be connected to the EW-D EM receiver, the EW-D AB antenna booster or EW-D ASA antenna splitter.

Features

  • UHF transmission greatly enhances range, reliability and scalability
  • Built-in ⅝" and ⅜" threads allow for easy mic stand mounting
  • Frequency range - 470 – 1075 MHz
  • Apex angle (-3 dB) - approx. 100°
  • Front-to-back ratio - >14 dB
  • Gain - typ. 5 dBi
  • Impedance - 50 Ω
  • Connection - BNC female, no DC path
  • Threads for tripod mounting - 3/8" and 5/8"
  • Dimensions 319 x 310 mm
  • Weight Approx. 1100 g (2.43 lbs)
  • Operating temperature range - -10 °C - +55 °C (14 °F - 131 °F)
  • Storage temperature range - -20 °C - +85 °C (-4 °F - 185 °F)
  • Relative humidity - max. 95 % (non-condensing)
Meer informatie
Conditie Nieuw
Merk Sennheiser
