RGBlink | RGB20X POE TLY - PTZ Camera with 20x Optical Zoom

Bruto prijs:

€ 923,08 Excl. BTW

Uw prijs:

€ 350,00 Excl. BTW

Uw korting: 62%

Laatste voorraad:
2 stuks

Art. code

RG-68.0002

GRATIS VERZENDING

Binnen Benelux (v.a. €750)

Beschrijving

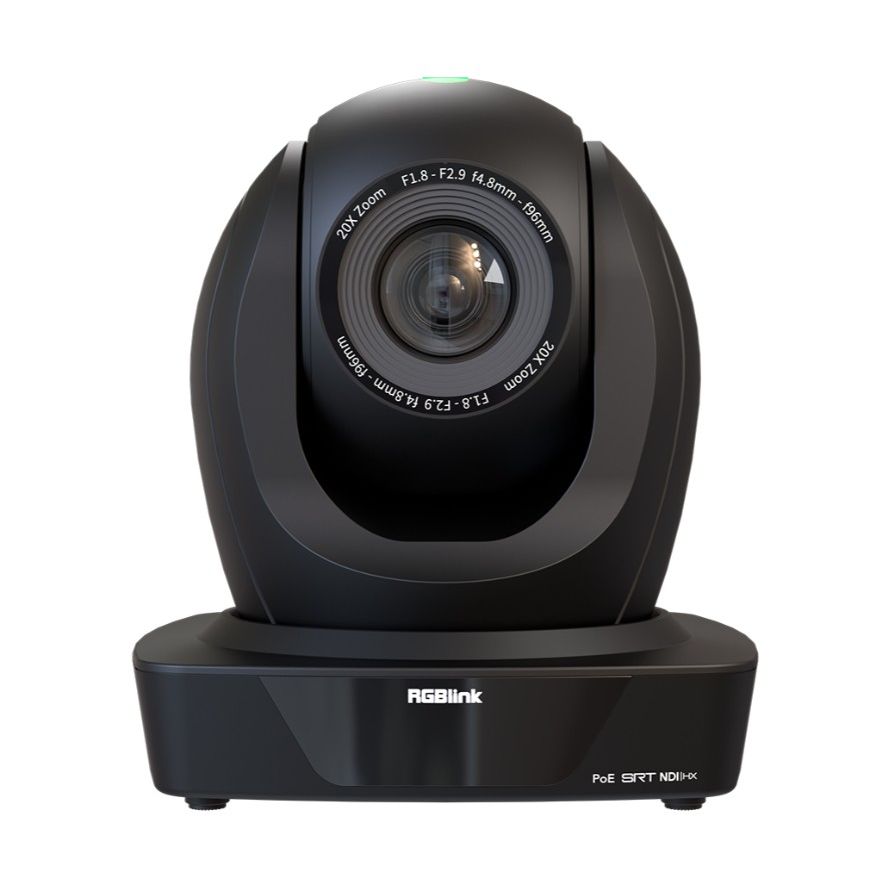

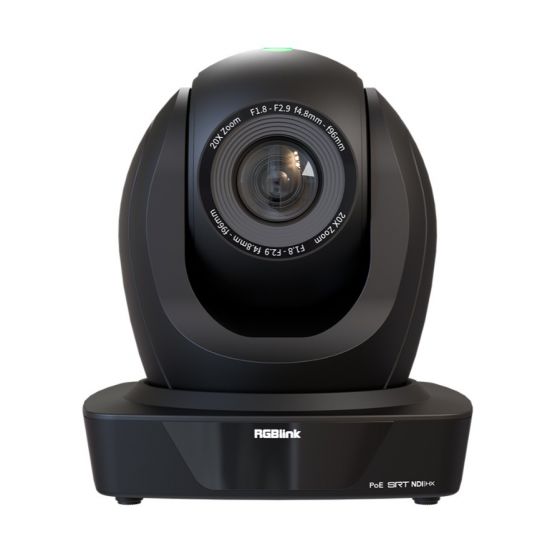

RGBlink | RGB20X POE TLY - PTZ Camera with 20x Optical Zoom

Add whole new dimensions to capturing video presentations with RGBlink vue PTZ cameras.

Featuring advanced an ISP image processor and a 2 mega pixel sensor, vue cameras are available in a range models across 12X, 20X & 30X optical zoom and a range of output options from HDMI & SDI to H.264, H.265 & NDI.

Pan, Tilt, Zoom to capture all the action – get in even closer with 10X digital zoom, and the best video with auto focus, dynamic level adjustment (WDR) and 2D/3D Dynamic Noise Reduction (DNR) all at up to 60fps.

All vue models feature the unique TALLY crown light indicator, integrated right into the housing for 360-degree viewing. The innovative and patented RGBlink vue camera design is at home in every environment.

Key features

High speed optical zoom
RTSP/RTMP/SRT encoding output
High performance in low light scenarios with Wide Dynamic Range
H.265/H.264 dual stream output adapted to different network environments
Full 1920×1080p HD resolutions up to 60 frames per second
Pan and Tilt Control
12X/20X/30X optical zoom
Low-power sleep function
Applicable to meeting, live streaming, church, classroom and more
Support TALLY
Support PoE

Specificaties

Interface
3G SDI Output: 1 × BNC
HDMI Output: 1 × HDMI-A
USB: 1 × USB-A
LAN: 1 × RJ45
Audio IN: 1 × 3.5mm Stereo Jack

Control
RS232 IN/OUT: 2 × DIN8
RS485: 1 × 4-pin Terminal
Power: 1 × DC12V Jack

Performance – Camera
Optical Zoom (12X): f = 4.1–49.2 mm
Optical Zoom (20X): f = 4.8–96 mm
Optical Zoom (30X): f = 5.2–148.4 mm
View Angle (12X): 6.57°–70.28°
View Angle (20X): 3.45°–60.04°
View Angle (30X): 2.14°–58.1°
Aperture (12X): F1.8–F2.68
Aperture (20X): F1.8–F2.9
Aperture (30X): F1.3–F4.8
Digital Zoom: 10×
Minimum Illumination: 0.5 Lux (F1.8, AGC ON)
DNR: 2D & 3D DNR
White Balance: Auto / Manual / One Push / 3000K / 3500K / 4000K / 4500K / 5000K / 5500K / 6000K / 6500K / 7000K
Focus: Auto / Manual
Aperture / Electronic Shutter: Auto / Manual
BLC: ON / OFF
WDR: OFF / Dynamic Level Adjustment
Video Adjustment: Brightness / Color / Saturation / Contrast / Sharpness / B/W Mode / Gamma Curve
SNR: > 55 dB
Effective Pixels: 2.07M, 16:9

Pan & Tilt
Pan/Tilt Movement: -170° to +170° / -30° to +90°
Pan/Tilt Speed: 0.1–60°/s (Pan), 0.1–30°/s (Tilt)
Preset Speed / Quantity: Pan: 60°/s, Tilt: 30°/s; up to 255 presets (10 via remote control)
360° TALLY: Full 360° view indicator

Compression & Output
Audio Compression: AAC / MP3 / G.711A
Video Compression: H.264 / H.265 / Dual Streaming Output
Output Resolutions: 720p @ 50 / 59.94 / 60, 1080p @ 25 / 29.97 / 30 / 50 / 59.94 / 60, 1080i @ 50 / 59.94 / 60

Control Protocols
Supported Protocols: VISCA / Pelco-D / Pelco-P / ONVIF
Baud Rates: 115200 / 9600 / 4800 / 2400 bps
Network Protocols: RTSP / RTMP / SRT / ONVIF

Standards
SDI Compliance: SMPTE 425M (Level A & B), SMPTE 424M, SMPTE 292M, SMPTE 259M-C, DVB-ASI

Power
Input Voltage: DC 12V / 1.5A
Max Power Consumption: 12W

Environment
Operating Temperature: -10°C to 50°C
Humidity: 20% – 80%

Physical
Net Weight: 1.7 kg
Dimensions: 180 mm (front) × 188 mm (side) × 198 mm (height)

Meer informatie

Meer informatie
Merk	RGBlink
