RGBlink - PTZ Camera with 12X Optical Zoom - NDI

RGBlink - PTZ Camera - 12X Optical Zoom - NDI

Features

• Superb High-definition Image by 1/2.8 inch high quality CMOS sensor
• Leading Auto Focus Algorithm Technology
• Low Noise and High SNR
• Wide-range, Quiet and Quick Pan/Tilt Mechanism
• Multiple Audio/Video Compression
• Multiple Network Protocol
• RS-232 Cascade Function
• Wide Application
• Low-power Sleep Function

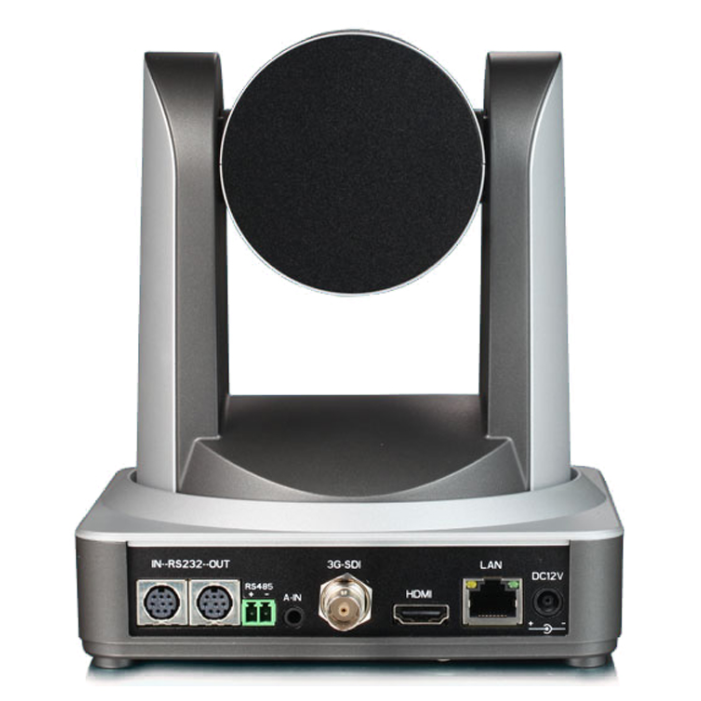

Connectors

• Output
  • HDMI: 1×HMDI-A
  • SDI: 1×HMDI-A
• Communication
  • LAN: 1×RJ45
  • RS232: In/Out 2×DIN 8
  • RS485: 2 Pin Connector
• Audio: In 1×3.5mm Stereo Jack
• Power: 1×DC Jack

Performance

• Camera
  • Optical Zoom: 12X f＝3.9～46.1mm
  • View Angle: 6.3°(tele) 72.5°(wide)
  • AV: F1.8 – F2.4
  • Digital Zoom: 10X
  • Minimum Illumination: 0.1Lux
  • DNR: 2D & 3D DNR
  • White Balance: Auto / Manual/ One Push/ 3000K/ 4000K/5000K/6500K
  • Focus/Aperture/Electronic Shutter: Auto/Manual
  • BLC: ON/OFF
  • WDR: OFF/ Dynamic level adjustment
  • Video Adjustment: Brightness,Color,Saturation,Contrast, Sharpness,B/W mode,Gamma curve
  • SNR: >55dB
• Output Resolutions: HDMI | SDI SMPTE 720p@25/29.97/30/50/60 | 1080i@50/59.94/60 | 1080p@25/30/50/59.94/60
• Video Compression Format: H.264, H.265,Dual stream output
• Control Protocol: VISCA/Pelco-D/Pelco-P;Baud Rate:115200/9600/4800/2400bps
• Network Protocol: RTSP, RTMP, ONVIF, GB/T28181, NDI
• Supported Standards:
  • HDMI: 1.3
  • SDI: SMPTE 425M (Level A & B) | SMPTE 424M | SMPTE 292M | SMPTE 259M-C | DVB-ASI

Power

• Input Voltage: DC12V/1.5A
• Max Power: 12W

Environment

• Temperature: -10℃～+50℃
• Humidity: 20%～80%

Physical

• Weight: Net 1.4kg
• Dimension: Net 150mm×150mm×167.5mm
