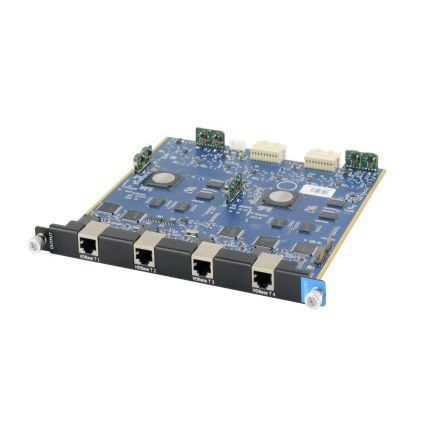

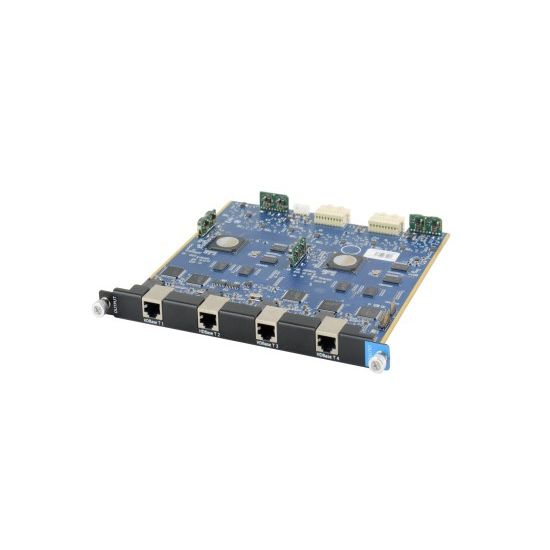

RGBlink | HDBase T output module

RGBlink | HDBase T output module

• Transmit AV signals via Cat5e or Cat6
• Max Transmission Distance up to 100m
• Bitrate up to 10.2Gbps

Connectors
• Output: 4 × RJ45

Performance
• Output Resolutions:
 – SMPTE:
  720p @ 50 / 59.94 / 60
  1080i @ 50 / 59.94 / 60
  1080p @ 23.98 / 24 / 25 / 29.97 / 30 / 50 / 59.94 / 60
 – VESA:
  800×600 @ 60 / 75 / 85
  1024×768 @ 60 / 75 / 85
  1280×768 @ 60
  1280×800 @ 60
  1280×1024 @ 60 / 75 / 85
  1360×768 @ 60
  1366×768 @ 60
  1400×900 @ 60
  1600×1050 @ 60
  1600×1200 @ 60
  1680×1050 @ 60
  1920×1080 @ 60
  1920×1200 @ 60
  2048×1152 @ 60
  2560×812 @ 60
  2560×816 @ 60

Supported Standard
• HDBaseT 1.0

Physical
• Weight: 0.2 kg
• Dimensions: 216 mm × 220 mm × 20 mm
