Epson - EB-L520u

Epson - EB-L520U

Featuring 5,200 lumens high-brightness capability, along with Full HD, WUXGA, 16:6 wide screen, support for 4K input and detail enhancement technology, it gives users brighter, more vivid displays of up to 500”.

Providing more premium features than you would typically expect to find in this display class, the EB-L520U delivers edge-blending and geometric correction to achieve one seamless large-format display. And for multimedia content, you can playback content without any lagging, and create playlists and set schedules directly from USB memory, all thanks to H.264 advanced video coding and the Epson Content Manager.

Flexibility is another hallmark of this display solution - a split-screen function allows two or four images from different sources to be combined in one large display; wired or optional wireless1 with support for Miracast1 makes connectivity simple and straightforward; and HDBaseT content can be shared and distributed without compromising on quality.

Thanks to the renowned market leading2 reliability of Epson laser displays, this fit and forget solution eliminates the need for regular maintenance. And for added confidence the EB-L520U comes with a standard 3-year warranty to provide lasting peace of mind.

Technology

• Projection System: 3LCD Technology, RGB liquid crystal shutter
• LCD Panel: 0.67 inch with C2 Fine


• Color Light Output: 5,200 Lumen - 3,640 Lumen (economy) (In accordance with IDMS15.4)
• White Light Output: 5,200 Lumen - 3,640 Lumen (economy) (In accordance with ISO 21118:2020)
• Resolution: WUXGA
• Resolution Enhancement: Full HD
• Aspect Ratio: 16:10
• On-Screen Pixel Count: 2,304,000
• Contrast Ratio: 5,000,000:1
• Light Source: Laser
• Laser Light Source Durability: 20,000 hours (High), 30,000 hours (Eco)
• Keystone Correction: Manual vertical: ± 30°, Manual horizontal: ± 30°
• Colour Video Processing: 10 Bits
• 2D Vertical Refresh Rate: 192 Hz - 240 Hz
• Colour Reproduction: Up to 1.07 billion colours

Optical

• Throw Ratio: 1.35 - 2.20:1
• Zoom: Manual, Factor: 1 - 1.6
• Projection Lens Zoom Ratio: 1.35 - 2.2:1
• Lens: Optical
• Screen Size: 50 inches - 500 inches
• Projection Lens F Number: 1.5 - 1.7
• Projection Lens Focal Length: 20 mm - 31.8 mm
• Projection Lens Focus: Manual
• Offset: 27:1

Connectivity

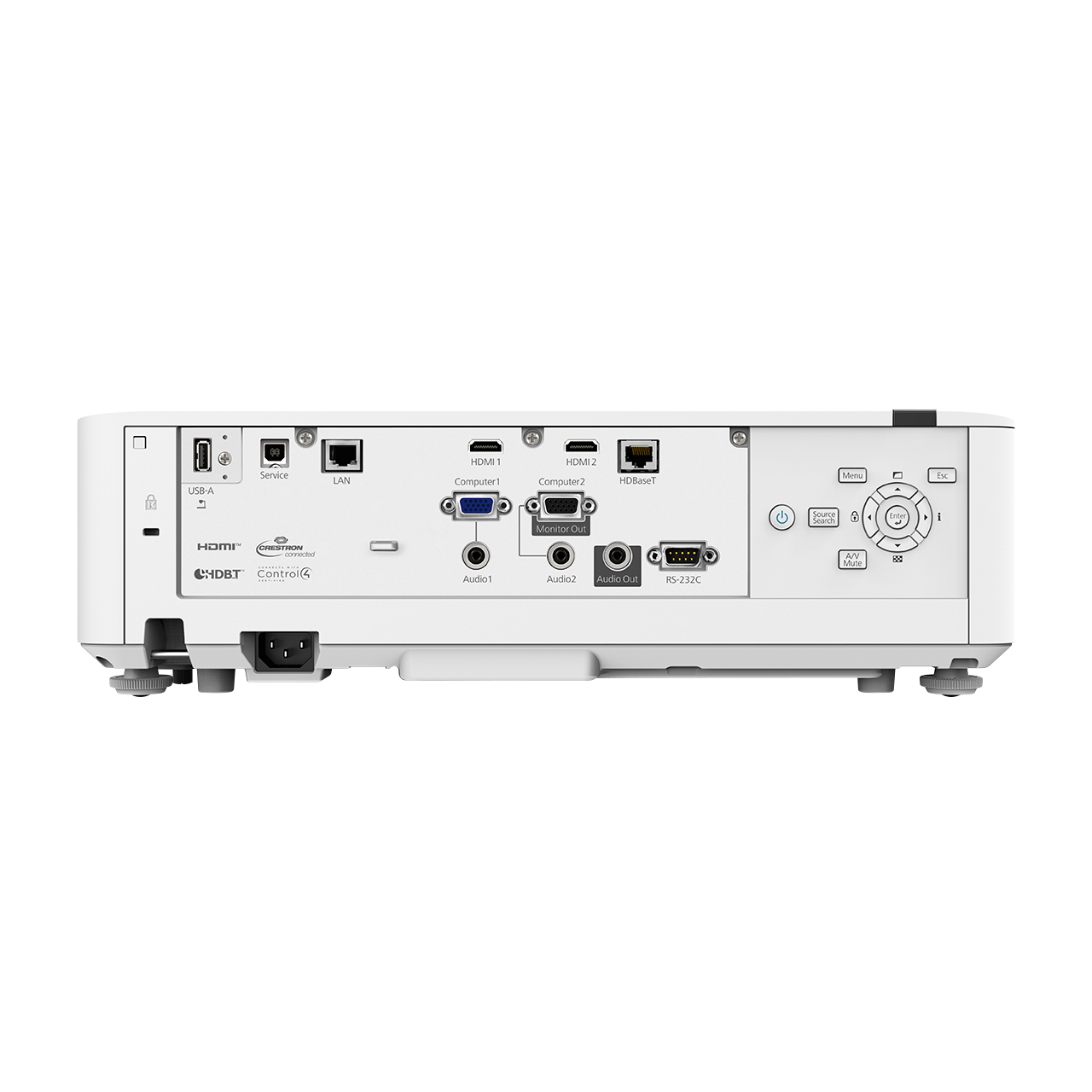

• Interfaces:

  • RS-232C
  • VGA in (2x)
  • VGA out
  • HDMI in (2x)
  • HDBaseT
  • Miracast (optional)
  • Jack plug out
  • Jack plug in (2x)
  • USB 2.0-A
  • USB 2.0
  • Ethernet interface (100 Base-TX / 10 Base-T)
  • Wireless LAN IEEE 802.11a/b/g/n/ac (optional)

• Epson iProjection App: Ad-Hoc / Infrastructure

Advanced Features

• Security:

  • Kensington lock
  • Padlock
  • Security cable hole
  • Wireless LAN unit lock

• 2D Colour Modes:

  • Dynamic
  • Cinema
  • Presentation
  • sRGB
  • DICOM SIM

• Other Features:

  • 21:9 aspect ratio support
  • A/V mute
  • Arc Correction
  • Built-in speaker
  • CEC compatible
  • Easy OSD pre-setting
  • Edge Blending
  • Long light source life
  • PC Free
  • Quick Corner
  • Screen share
  • Source function
  • Ultra-wide display (16:6)
  • iProjection App

• Video Colour Modes:

  • Cinema
  • Dynamic
  • Presentation
  • sRGB
  • DICOM SIM

• Projector Control:

  • AMX
  • Crestron
  • Control4
  • Crestron Integrated Partner
  • Extron IP Link
  • Extron XTP
  • AMX Device Discovery
  • Control4 Simple Device Discovery Protocol

General

• Power Consumption:

  • 234 Watt (Normal On-Mode)
  • 164 Watt (Eco On-Mode)
  • 293 Watt (Normal Peak-mode)
  • 223 Watt (Eco Peak-Mode)
  • 0.3 Watt (Energy saving standby)

• Supply Voltage: AC 100 V - 240 V, 50 Hz - 60 Hz

• Product Dimensions: 440 x 122 x 304 mm (Width x Depth x Height)

• Product Weight: 7.7 kg

• Noise Level:

  • Normal: 31 dB (A)
  • Economy: 23 dB (A)

• Supported Temperature: Storage: -10°C - 60°C

• Supported Humidity: Operation: 20% - 80%, Storage: 10% - 90%

• Included Software: EasyMP Multi PC Projection

• Options:

  • Air filter
  • Ceiling mount
  • Document camera
  • External Speaker
  • HDBaseT Transmitter
  • Safety wire set
  • Suspension adapter
  • WP System - ELPWP10
  • Wireless LAN unit
  • Wireless transmitter - ELPWT01

• Loudspeaker: 10 Watt

• Room Type / Application:

  • Boardroom
  • Home Cinema
  • Home Office
  • Large Meeting Room / Auditorium
  • Meeting Room / Classroom
  • Signage / Retail
  • Visitor Attraction

• Positioning:

  • Ceiling Mounted
  • Desktop
  • Floor
  • Wall Mounted

• Colour: White

• TCO Certified:
  For further information, visit TCO Certified
