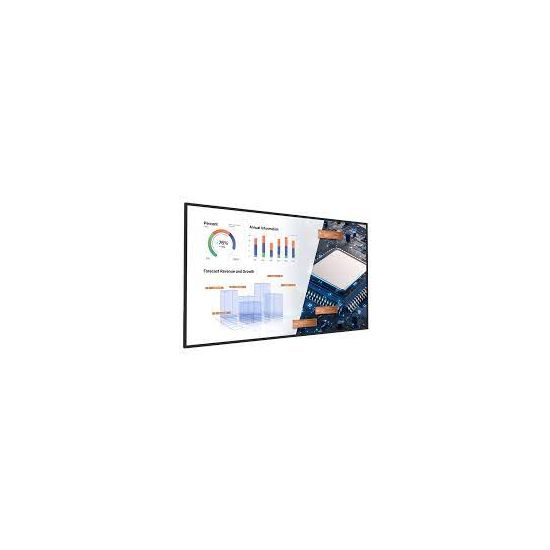

BenQ - ST6502S - 4K UHD 65-inch Smart Signage

BenQ - ST6502S - 4K UHD 65-inch Smart Signage

The ST02S upgrades enterprise, corporate and organisational conference capabilities while maintaining superb return on investment. Visuals come across in 4K ultra HD with vivid colours and sharp contrast on thin-bezel screens, putting an end to vague, blurry image quality that detracts from the impact and sheer productivity of teleconferencing.

True 4K UHD Details

The ST02S is engineered to give users a more expansive canvas to showcase presentations, designs, ideas, and plans.

Easy-to-Go Stand

It enables smart signage solutions with versatility on a whole new level. With removable wheels, the easy-to-go stands let you quickly move the signage from one meeting room to another, to maximise usability, reduce complexity and save on unnecessary costs.

BenQ ST02S series compatible with top video conferencing solutions

Start video meetings with a simple click on the ST02S. The OPS slot-in PC is fully compatible with top video conferencing solutions such as Zoom Rooms, Microsoft Teams, Google Meet, and Cisco Webex. Also, TeamViewer Meeting is pre-installed on all ST series displays.

All Ready for “Bring Your Own Device” with InstaShare

Two-way mirroring and two-way touch control, plus up to four split screens supported - that’s got you covered on your favourite personal devices, so go ahead and BYOD.

Built-In Android OS

Saves users the need for an external device as a source for an operating system, which means more gets done directly on digital signage for increased efficacy and users’ convenience.

Plug and Play

Let’s you access and play multimedia files directly from a USB flash drive without requiring a PC connection or complicated set-up.

Match your Corporate Image

The ST02S has a friendly interface, allowing you to switch and customise the default wallpaper to show your corporate image.

Panel

• Screen size: 65''
• Panel type: ADS
• Active area: 1428.5 × 803.5 mm
• Aspect ratio: 16:9
• Brightness without glass (typical): 400 nits
• Contrast ratio (typical): 1200:1
• Color depth: 8-bit
• Response time: 8 ms
• Color gamut: 72% NTSC
• Operation hours: 18 hours / 7 days
• Orientation: Landscape
• Light life (typical): 30,000 hrs

System

• CPU: A73 × 2 + A53 × 2
• GPU: Mali-G51MP2
• Memory | Storage: 3GB I 16GB

Connectivity

• HDMI (in | out): 3 × HDMI 2.0 | No
• DVI (in | out): 1 | 0
• VGA (in | out): 1 | 0
• 3.5 mm Line in (1): PC Audio × 1
• 3.5 mm Line out: Earphone × 1
• USB-A: 1011.0 × 599.2 × 97.4 mm (39.8 × 23.6 × 3.8 inch)
• Micro SD reader: 1
• Slot-in PC (OPS): 1
• Ethernet LAN: 10 / 100 Mbps (Android) × 1

Built-in peripherals

• Speaker: 2 × 10 W

Power

• Power: AC 100-240V 50/60Hz
• Maximum Power Consumption (Watt): 300 W
• Standby power consumption: <0.5 W
• Typical power consumption: 155 W

Physical

• Dimensions (W x H x D): 1462.3 x 837.3 x 68.9 mm (56.1 × 32.9 × 2.7 inch)
• Mount (screws): VESA 600 × 400 mm (4 × M8 × 15L)

Environment

• Operating temperature: 0°C ~ 40°C
• Storage temperature: -20°C ~ 60°C
• Storage humidity: 10% ~ 80% RH Non-Condensing
• Operating humidity: 10% ~ 80% RH non-condensing

Software

• Wireless screen sharing: InstaShare 1 (BenQ App Store)
• Device management: DMS
• Broadcast system: X-Sign Broadcast
• Content management: X-Sign

Accessories

• Cables: HDMI (1.5 m | 4.9 ft)
• Remote control: 1
• Power cord: WW: × 5 (EU/UK/US/MX/TW) ; BQP × 5( EU/UK/AU/JP/IN) ; BQP × 1 (CN)
