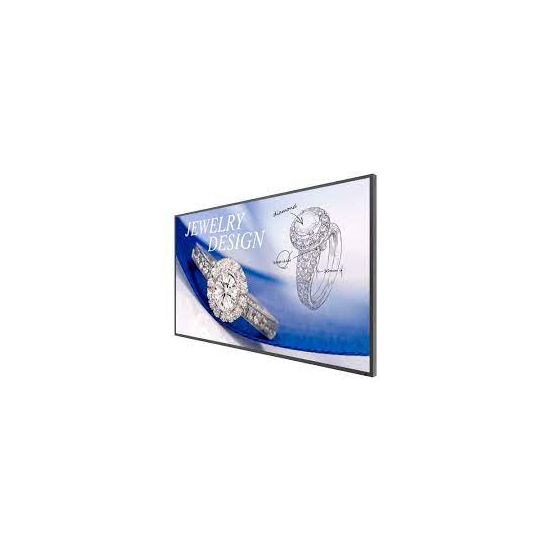

BenQ - ST4302S - 4K UHD 43-inch Smart Signage

BenQ - ST4302S - 4K UHD 43-inch Smart Signage

All-in-One Smart Signage with Ultra-Thin Bezels

• View vivid images on a 4K UHD display
• Ready-to-use with its built-in Android™ OS
• Flip the display for portrait or landscape viewing
• Easily create content using custom X-Sign templates

4K UHD Clarity

Enjoy crisp and colorful images with the ST series. 4K UHD resolution brings excellent clarity and readability to any space.

Built-In Android OS

Use the built-in Android OS to access files, display content and start presentations without connecting other devices.

Panel

• Screen size: 43''
• Panel type: IPS
• Active area: 941.2× 529.4 mm
• Aspect ratio: 16:9
• Brightness without glass (typical): 400 nits
• Contrast ratio (typical): 1200:1
• Color depth: 8-bit
• Response time: 8 ms
• Color gamut: 72% NTSC
• Operation hours: 18 hours / 7 days
• Orientation: Landscape and Portrait
• Light life (typical): 30,000 hrs

System

• CPU: A73 × 2 + A53 × 2
• GPU: Mali-G51MP2
• Memory | Storage: 3GB I 16GB
• OS: Android 8.0

Connectivity

• HDMI (in | out): 2 × HDMI 2.0 | No
• DVI (in | out): 1 | 0
• VGA (in | out): 1 | 0
• 3.5 mm Line in (1): PC Audio × 1
• 3.5 mm Line out: Earphone × 1
• USB-A: 1011.0 x 599.2 x 97.4 mm (39.8 x 23.6 x 3.8 inch
• Micro SD reader: 1
• Ethernet LAN: 10 / 100 Mbps (Android) × 1

Built-in peripherals

• Speaker: 2 × 10 W

Power

• Power:  AC 100-240V 50/60Hz
• Maximum Power Consumption (Watt): 185 W
• Standby power consumption: <0.5 W
• Typical power consumption: 134 W

Physical

• Dimensions ( W x H x D): 973.0 x 561.2 x 63.5 mm (38.3 x 22.1 x 2.5 inch)
• Weight: 10.7 kg
• Mount (screws): VESA 200 x 200 mm (4 x M6 x 15L)

Environment

• Operating temperature: 0°C ~ 40°C
• Storage temperature: -20°C ~ 60°C
• Storage humidity: 20% ~ 90% RH Non-Condensing
• Operating humidity: 20% ~ 90% RH Non-Condensing

Software

• Wireless screen sharing: InstaShare 1 (BenQ App Store)
• Device management: DMS
• Broadcast system: X-Sign Broadcast
• Content management: X-Sign
