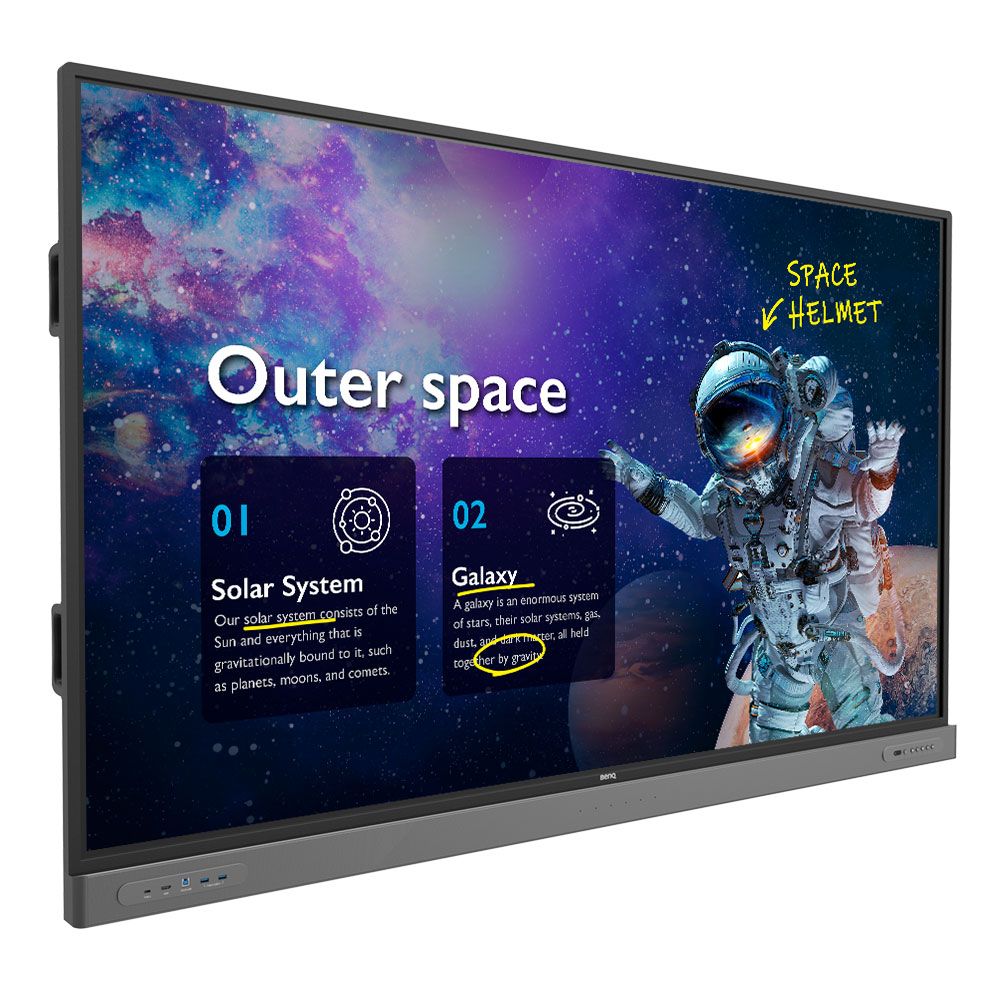

BenQ - RM8603 - 86-inch Master Series Education Display

BenQ - RM8603 - 86-inch Master Series Education Display

Masterfully designed
Excite and inspire your students through immersive hands-on lessons while protecting their health—all on one interactive display.

Defend against the spread of germs
Reduce surface transmission in the classroom with ClassroomCare® germ-resistant screens. The touchscreen is made with a TÜV-certified nano-ionic silver formula that is 99.9% effective against common germs.

All-round protection
Since pens are often shared, they become potential vectors of germs. The RM03 is the only interactive display that comes with germ-resistant pens for extended protection.

Enhanced eye comfort
RM03 displays come with a low blue light filter and flicker-free technology for reduced eye strain and a comfortable viewing experience. Anti-glare screens additionally ensure that display content is seen clearly from anywhere in the classroom.

Teach your way
Deliver lessons and manage classes the way you’re used to with the BenQ Board Master. Share your laptop screen and control it from the BenQ Board or use the many built-in features. Access your files on the cloud and enjoy a wide range of dynamic teaching tools.

Teach freely
Enjoy the flexibility of teaching from anywhere in the room. With InstaShare 2, you can easily share your laptop, tablet, or smartphone screen onto the BenQ Board. Control your device right from the display to navigate lesson material without having to go back and forth.

Panel

• Screen size: 86-inch
• Panel type: IPS
• Active area: 1895.0 x 1096.0 mm
• Aspect ratio: 16:9
• Brightness without glass (typical): 450 nits
• Contrast ratio (typical): 1200:1
• Dynamic contrast ratio: 30,000:1
• Color depth: 10-bit
• Response time: 8 ms
• Color gamut: 72% NTSC
• Operation hours: 18 hours / 7 days
• Orientation: Landscape
• Light life (typical): 50,000 hrs

Glass

• Hardness: 9H tempered
• Germ-resistant coating: Nano-iconic silver
• Anti-glare coating: Yes

Touch screen

• Touch technology: Infraded touch
• Touch points: up to 40
• Touch Output: <10 ms

System

• CPU: A73 x 4
• GPU: G52 MC 2
• Memory | Storage: 8GB | 32 GB
• OS: Android 9.0

Connectivity

• HDMI (in | out): 3 x HDMI 2.0 | 1 x HDMI 2.0
• DisplayPort (in | out) 1 x 1.2 | No
• VGA (in | out): 1 | 0
• 3.5 mm Line in (1): PC Audio x 1
• 3.5 mm Line in (2): Mic x 1
• SPDIF (in | out): 0 | 1 (optical)
• USB-A: 2 x 2.0 + 5 x 3.2 Gen1
• USB-B (for touch): 14.9 | 14.9 | 14.9 | 14.9 mm (0.6 | 0.6 | 0.6 | 0.6 inch)
• USB-C: 1 x 3.0 (PD 65 W)
• sLOT-IN pc (OPS): 1
• Ethernet LAN: 10 / 100 Mnps (Android), 10 /100 / 1000 Mbp (OPS) x 1

Built-in peripherals

• Microphone: 6
• Speaker: 2 x 16 W
• Wi-Fi: USB wireless adapter (optional)

Power

• Power: AC 100-240V 50/60Hz
• Maximum Power Consumption (Watt): 375 W
• Standby power consumption: <0.5 W
• Typical power consumption: 166.2W

Physical

• Dimensions (W x H x D): 1962.4 x 1203.4  x 121.4 mm (77.3 x 47.38 x 4.8 inch)
• Shipping dimensions (W x H x D): 2160 x 1340 x 250 mm (85.00 x 52.8 x 9.8 inch)
• Mount (screws): VESA 800 x 400 mm (4 x M8 x 20L)
• Pen Tray: 1

Environment

• Operating temperature: 0°C ~ 40°C
• Storage temperature: -10°C ~ 60°C
• Storage humidity: 10% ~ 80% RH Non-Condensing
• Operating temperature: 10% ~90% RH non-condensing

Software

• Wireless screen sharing: InstaShare 2
• Account management: AMS
• Device management: DMS
• Quick acces tool: Floating Tool
• Broadcast system: X-Sign Broadcast
