Martin - BreakIn Cable Power-DMX-Ethernet to PDE

Martin - BreakIn Cable Power-DMX-Ethernet to PDE

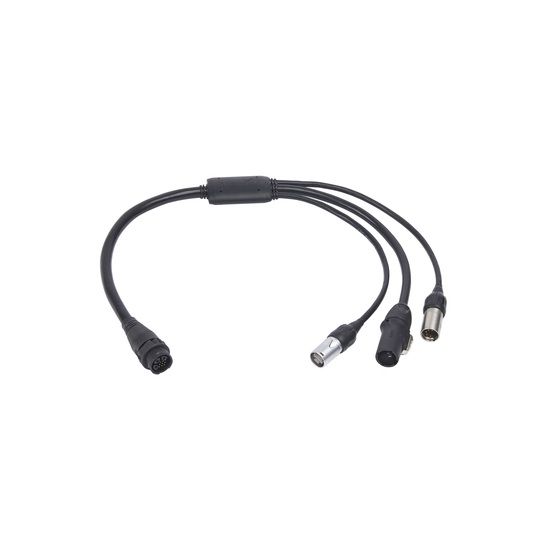

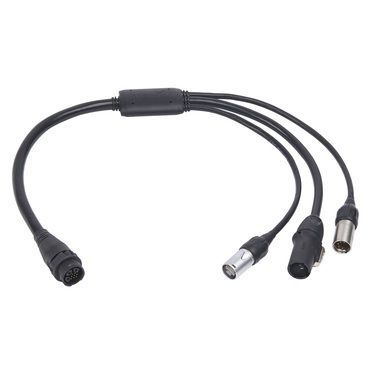

The Martin PDE BreakIn Cable merges Power, DMX & Ethernet signals into a single connector and cable system as used by the Martin VDO Atomic family of fixtures.

The cable is fully IP65 rated for outdoor use and features robust connectors.

Features:

• powerCON TRUE1 TOP power input
• XLR 5 TOP DMX input
• etherCON TOP Ethernet input
• Martin PDE Hybrid output
• IP65 rated for durability and weather resistance

Physical

• Length: 500 mm (19.7 in.)
• Weight: 325 g (0.52 lbs.)

Construction

• Housing: PVC
• Color: Black
• Protection rating: IP65
• Cable Jacket: PVC

Installation

• Location: Indoor or temporary outdoor use
• Orientation: Any

Connections

• AC power input: Neutrik powerCON TRUE1 TOP (IP65)
• Ethernet Input: Neutrik etherCON TOP (IP65)
• DMX input: Neutrik XLR 5-pin Male TOP (IP65)
• AC Power, DMX and Network out: PDE hybrid connector (IP65)
• All connections hot plugging compatible

Electrical

• AC power: 100-240V AC nominal, 50/60Hz

Thermal:

• • Maximum ambient temperature (Ta max.): 75°C
  • Minimum ambient temperature (Ta min.): -15°C

• Environmental:

  • RoHS: Compliant
  • REACH: Compliant
