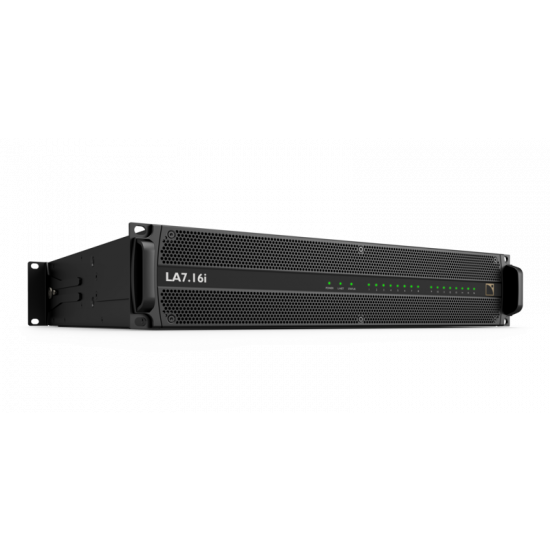

L-Acoustics - LA7.16i
CE version.
LA7.16i is a 16-channel amplified controller dedicated to permanent installations. It integrates L-SMART power management technology to dynamically match the real-time needs of the loudspeaker system being driven. LA7.16i is efficiently dimensioned for multichannel applications, distributed systems, or line sources for the finest discretization.
Its streamlined and elegant 2U chassis hides a powerful DSP engine with features for loudspeaker management, system protection, and monitoring as well as a comprehensive set of tools for system adjustment and calibration. The Milan-compliant LA7.16i supports AVB inputs with seamless network redundancy, in addition to AES/EBU and analog connections. Three GPIO and a 24 V DC backup power for the DSP card offer external control and increased reliability.
Amplification and power supply
|
Amplification class |
High-efficiency class D |
|
Output power, all channels loaded |
16 x 1100 W at 4 ohms |
|
Nominal power requirements |
16 A (200-240 V) 30 A (100-120 V) |
|
Mains connector |
32 A powerCON |
|
Power supply model |
Universal Switched Mode Power Supply (SMPS) with Power Factor Correction (PFC) |
|
Mains rating |
100 V - 240 V ±10%, 50-60 Hz |
|
External DSP backup voltage input |
24 V DC |
DSP
|
Digital Signal Processor (DSP) |
Gen.5 Dual SHARC 32-bit, floating point, 96 kHz sampling rate |
|
I/O routing |
16 x 16 routing and summation matrix |
|
Per output channel |
Built-in EQ station with 8 IIR, 4 FIR linear phase EQ filters |
Technologies
|
Loudspeaker management |
L-DRIVE advanced system protection |
|
Amplifier management |
L-SMART adaptative power management |
Latency
|
Standard latency (analog/digital inputs) |
3.84 ms |
|
Low latency (analog/digital inputs) |
1.18 ms |
Inputs
|
AVB |
16 channels from up to 16 streams (of up to 8 channels each) |
|
AES/EBU |
2 channels AES/EBU (1 x AES3) with SRC |
|
Analog |
1 channel analog |
|
Connections |
2 etherCON 1 Gb/s I/O+ control 1 male 12-point terminal block (AES3 or Ana input/link + GPIO) |
Outputs
|
Loudspeaker connections |
8 Female 4 point terminal blocks |
Circuits protection
|
Mains and power supply |
Over and under voltage / over temperature / overcurrent |
|
Power outputs |
Overcurrent / DC / short circuit / over temperature |
Interface
|
Display/indicators |
LED's only |
Remote control and monitoring
|
L-Acoustics remote control software |
LA Network Manager |
|
General purpose inputs and outputs (GPIO) |
3 in/out on 12 point terminal block |
|
Third-party management solutions |
QSC® Q-SYS / Crestron® |
Operating conditions
|
Temperature |
-5º C / 23º F to +50º C / 122º F |
Physical data
|
Height |
2U |
|
Weight |
14.5 kg / 32 lb |
| Conditie | Nieuw |
|---|---|
| Merk | L-Acoustics |
