L-Acoustics - K3i

L-Acoustics - K3i

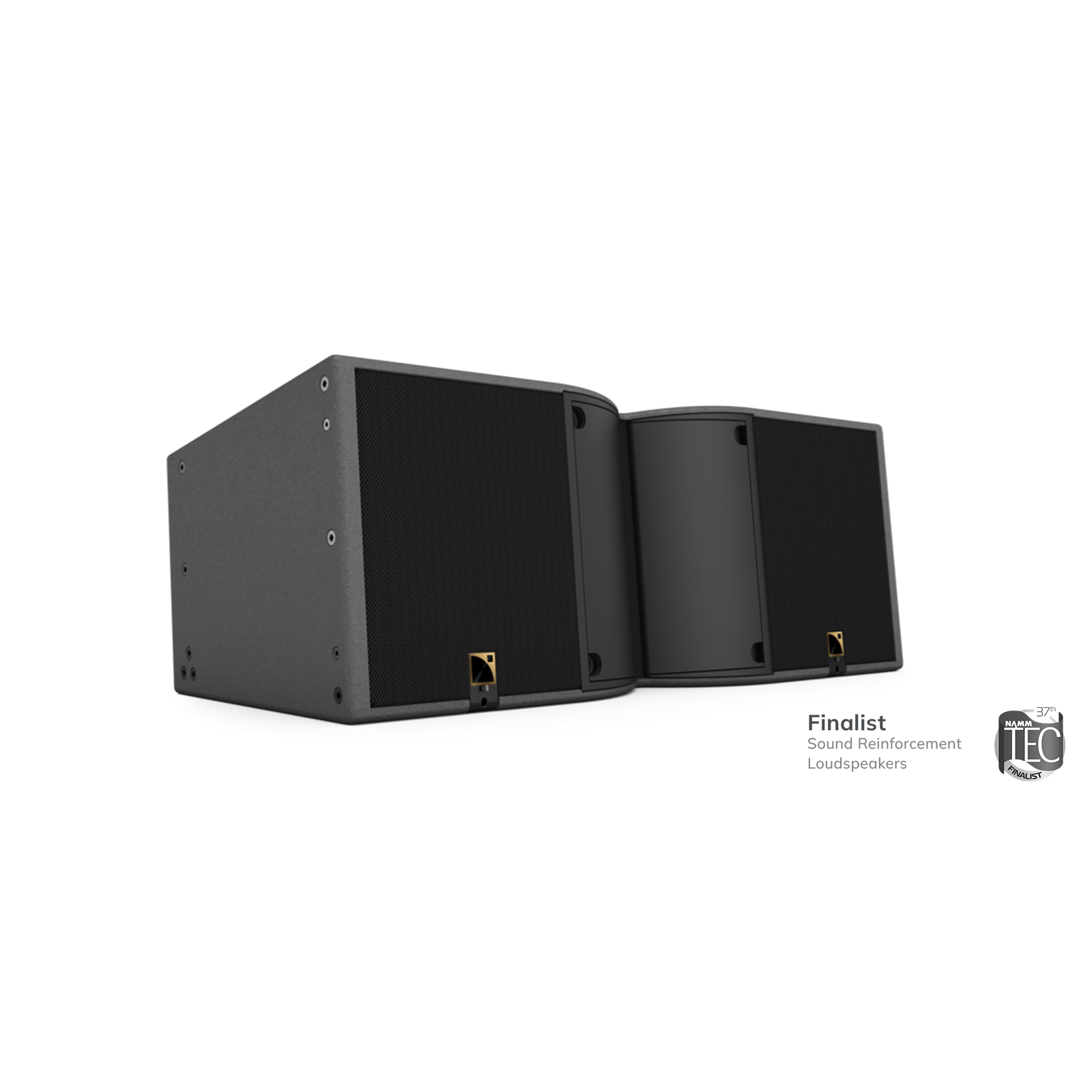

K3i is the installation version of K3, designed for long-throw installationapplications. K3i shares identical sonic performance with its touring counterpart but features a sleeker design and streamlined mounting hardware fitting integration requirements.

Housing the internationally recognized K2 performance into a compact enclosure, K3i is ideal for medium to large-scale venues that require premium-tour sound and limited footprint, such as large concert halls, clubs, congress centers and sport venues.

Inter-element angles and PanflexTM for user-adjustable horizontal directivity enable integrators, consultants and sound designers to precisely tailor the array coverage to any audience geometry.

Requiring only two channels of amplification, K3i is a high value solution that provides large-format concert sound in compact and lightweight construction to facilitate most integration scenarios. K3i is highly weatherresistant as standard and can be color-matched to melt into any venue decor, indoor or outdoor.

• Description: 2-way active WST enclosure, amplified by LA4X / LA8 / LA12X
• Usable bandwidth (-10 dB): 42 Hz - 20 kHz ([K3_70])
• Maximum SPL1: 143 dB ([K3_70])
• Nominal directivity: Vertical : depending on number of elements and array curvature Horizontal : 70° / 110° symmetric or 90° asymmetric
• Transducers: LF: 2 × 12’’ neodymium cone driver HF: 1 × 4’’ diaphragm neodymium compression driver
• Acoustical load: LF: Bass-reflex, L-Vents HF: DOSC waveguide, Panflex
• Nominal impedance: LF / HF : 8 Ω / 8 Ω
• Connectors: 4-point terminal block with push-in connection, Connector sealing plate with cable gland
• Rigging and handling: External rigging kits, M6 inserts for rigging plates and accessories, Inter-enclosure angles [deg]: 0, 1, 2, 3, 4, 5, 7.5, 10
• Weight (net): 35 kg / 77 lb
• Cabinet: Premium grade Baltic birch plywood
• Front: Coated steel grill, Acoustically neutral 3D fabric
• Rigging components: High grade steel with anti-corrosion coating
• Finish: Dark grey brown Pantone 426 C, Pure white RAL 9010, Custom RAL code on special order
• IP: IP55
