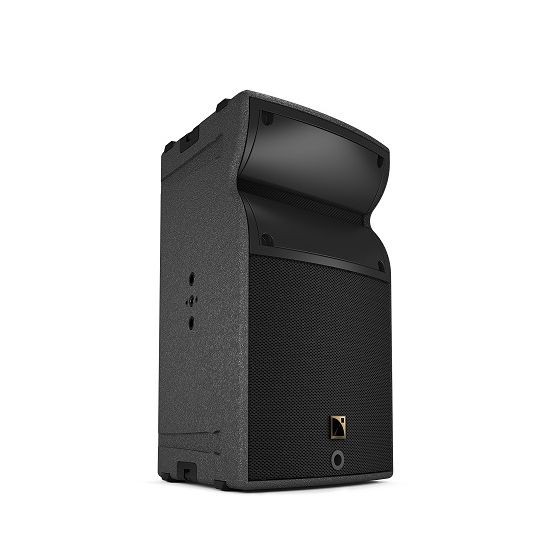

A10 Wide is a medium throw loudspeaker designed for production applications. Part of the multifunctionnal A10 family, the passive 10“ enclosure offers exceptional deployment flexibility and simplicity without compromising performance.

The 30° enclosure of A10 Wide enables a compact array to provide expansive coverage while preserving sightlines. Panflex allows users to adapt directivity to the audience geometry and ensure exceptional frequency response stability.

Combinations of A10 Wide and A10 Focus can be flown or stacked to form a vertical line source. A10 Wide can also be used individually as a configurable directivity point source for delays and pole-mounted applications.

A10 Wide deploys radially to offer extensive horizontal coverage with few elements and delivers strong LF resources adapted to live concerts. The companion subwoofer KS21 further reinforces contour and extends bandwidth to 31 Hz for demanding applications.  A10 Wide is a highly scalable solution that delivers concert level performance for small to large events or supplements a larger L-Acoustics solution as fills or delays.

Description:

• 2-way passive constant curvature WST 30°,
  amplified by LA4X / LA8 / LA12X

Usable bandwidth (-10 dB)

• 67 Hz - 20 kHz ([A10])

Maximum SPL1

• 137 dB ([A10])

Nominal directivity

• Enclosure: 30°
  Panflex: 70° / 110° symmetric or 90° asymmetric

Transducers

• LF: 1 × 10’’ neodymium cone driver
  HF: 1 × 2.5’’ diaphragm neodymium compression driver

Acoustical load

• LF: Bass-reflex, L-Vents
  HF: DOSC waveguide, Panflex

Nominal impedance

• 8 Ω

Connectors

• IN: 1 × 4-point speakON
  LINK: 1 × 4-point speakON

Rigging and handling

• Flush-fitting two-point rigging system
  1 handle, 8 corner stops and 2 ground runners

Safety 1

• DIN580-compatible M8 insert

Weight (net)

• 20 kg / 44 lb

Cabinet

• Premium grade Baltic beech and birch plywood

Front

• Coated steel grill
• Acoustically neutral 3D fabric

Rigging components

• High grade steel with anti-corrosion coating

Finish

• Dark grey brown Pantone 426 C

IP

• IP55
