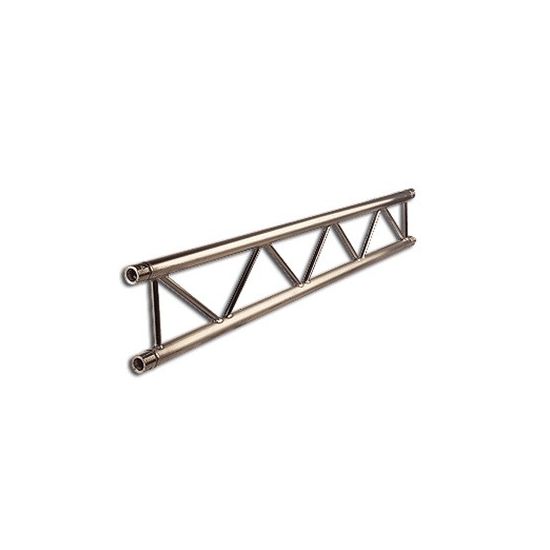

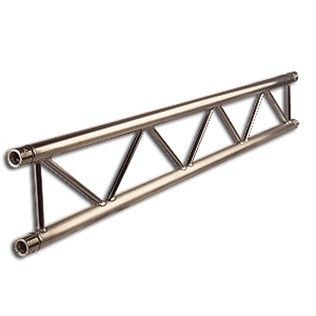

Eurotruss - FD32-050

Eurotruss - FD32 050cm

• FD32 Ladderbeam
• Ladderbeam for light loads
• Tolerance free connection with conical connector
• High Stability aluminium alloy
• Compatible with FD34
• Optimum manufacturing quality
• TuV Tested
• Available in any non-standard length and shape

FD32 straight elements lend themselves to use as span exposed to bending stress, cantilevered up to 4m; they may also be used for decorative purpose. Combined with FD34, they possess a broad range of applications. The FD32 Serie is suitable for hanging rigs in horizontal and vertical way. Made with the fast connection system and tested according to the Din 4113/VBG 70 specifications by the TuV.

• Type: FD32
• Height: 290mm
• Width: 50mm
• Weight: ~3kg/mtr
• Main tube: 50x2 mm
• Braces: 20x2 mm
• Material: AlMgSi 1 F31/EN AW 6082 T6
• Connection System: Eurotruss FD
