Eurotruss | FD33-400 - Triangle Truss Length 400cm

Eurotruss - FD33 400cm

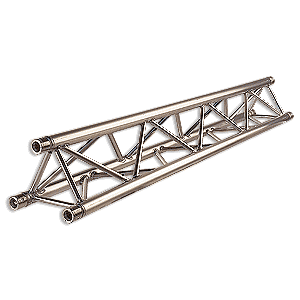

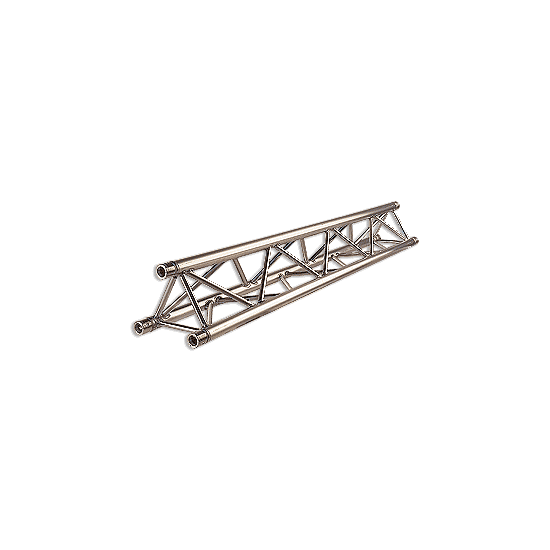

FD33, the Triangular Truss with equilateral profile geometry for larger loads. The FD33 straight elements lend themselves perfectly for making bending stress resistant spans up to 12 meters (39 feet).

Designed for high frequency usage or installations,which demands higher loading.

Made with the fast CS1 connection system.

Features

• • TüV approved
  • Also available in any non-standard length and shape
  • Tolerance free conical connector system

Technical specifications

• Height: 258 mm / 10.16 in
• Width: 290 mm / 11.42 in
• Main Tub: 50 x 2 mm / 1.97 x 0.08 in
• Braces: 20 x 2 mm / 0.79 x 0.08 in
• Weight: ~4,5 kg/m / ~3 lbs/ft
• Pin Position: Diagonal
• Material: EN AW-6082 T6
• Connection: CS1 - CON

Productcodes

• FD33-050: (50 cm)
• FD33-100: (100 cm)
• FD33-150: (150 cm)
• FD33-200: (200 cm)
• FD33-250: (250 cm)
• FD33-300: (300 cm)
• FD33-350: (350 cm)
• FD33-400: (400 cm)
• FD33-050: (50 cm)
• FD33-075: (75 cm)
• FD33-100: (100 cm)
• FD33-150: (150 cm)
• FD33-200: (200 cm)
• FD33-250: (250 cm)
• FD33-300: 300 cm)
• FD33-350: 350 cm)
• FD33-400: 400 cm)
