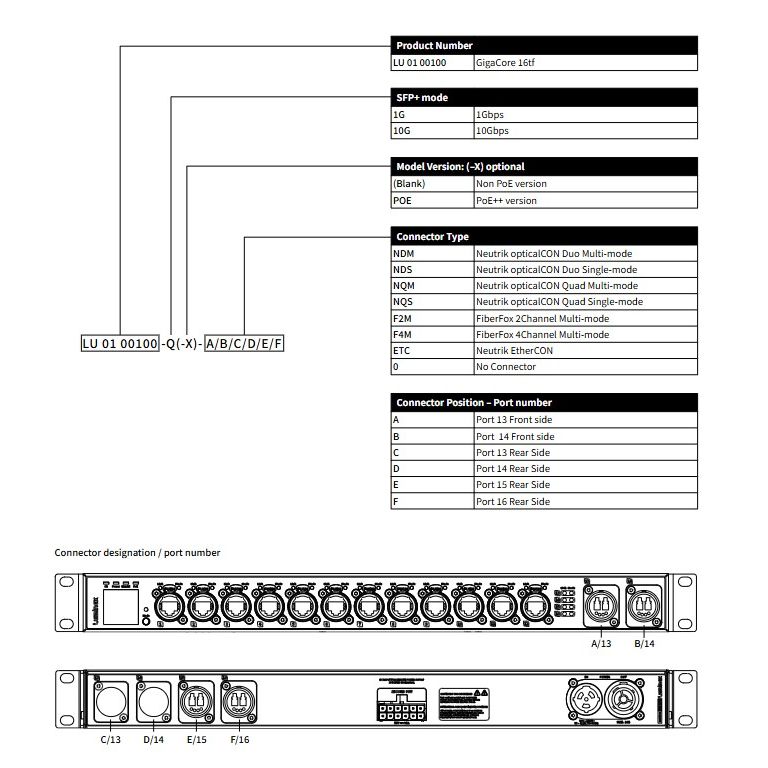

To choose the correct combinations, please refer to the second image for clarification!

The GigaCore 16tf is an up to 10 Gigabit Ethernet switch for professional touring applications in lighting, audio and videoand provides ruggedised connectivity at the front as well as at the rear of the rack to accomodate multiple edge devices in a flexible way with several fiber and copper connector options from factory.

It is designed to support the most advanced AV protocols out of the box and is the backbone for a converged network, allowing multiple applications to co-exist on the same network.

10Gb Connectivity
10Gb connectivity allows full network convergence of lighting control, audio, intercom, and video.

1Gb Connectivity
A range of 1Gb versions is available as well with identical PoE and redundancy features. For more information, please see specifications and product codes below.

PoE++
PoE++ implementation on every copper port allows you to connect any PoE device available today.

Today’s PoE standards (802.3af, 802.3at and 802.3bt) are all met.
GigaCore 16tf can directly drive almost any IP PTZ camera, network node or PoE powered loudspeaker on the market.

For optimised consistency, all GigaCore switches can be managed with a single network-wide tool: Araneo
Araneo’s online mode shows everything you need to know about the status of your GigaCore network. Data streams and topology are visualized as are the port status of every GigaCore.

Monitor your network with confidence and act before the show gets interrupted!

In offline mode, Araneo lets you plan the complete network topology and GigaCore settings in advance. Reducing network commissioning time to a mere click of a button.
Araneo Health Check proactively checks vital parameters of your network and ensures consistency throughout.

Intuitive web UI
The built-in web UI allows you to adjust the settings in an intuitive way. Assigning Groups (VLANS) to ports, creating trunks or adjusting other port- and PoE settings can be done on the fly and the status page gives you an overview of the complete switch at a glance. The toolbox page allows management of profiles and lets you upgrade firmware easily.

Features

• Easy to configure with WebUI & ARANEO
• 12 x Rugged 1Gbps front-side connectivity for flexible field deployment
• 4 x 10Gbps connection: OpticalCON, Fiberfox or EtherCON in front and/or rear
• Pre-configured for ProAV – no compromises required
• Pre-defined Groups (VLANs), Custom Groups (VLANs), and Custom Trunk technology with matching color-coded LED indicators per port
• PoE++ support on all copper ports
• Dedicated connection for the RPSU 5580, enabling redundant power or increased PoE budget

• Most suitable applications: Touring applications
• PoE: PoE++ Optional
• RLinkX (Link redundancy): Yes
• Groups (VLAN segmentation): Yes
• MultiLinkX (Link aggregation): Yes
• Profile manager: Yes
• Memory: Flash 1Gb RAM – 8Mb NOR flash 4Gb EMMC storage
• MAC address table: 16384 entries
• Address learning / Aging: Self learning, Auto aging
• Switching throughput 64 Byte: 23.81Mpps (1G version), 77.38Mpps (10G version)
• Switching capacity: 104Gbps
• Jumbo frames: MTU up to 12000
• IGMP support: Yes (V1/V2/V3)
• IGMP snooping: Yes, enabled by default
• Port sensing: Auto negotiation
• Auto crossover: MDI / MDIX
• Auto sensing: Full or Half Duplex (Gigabit is Full Duplex)
