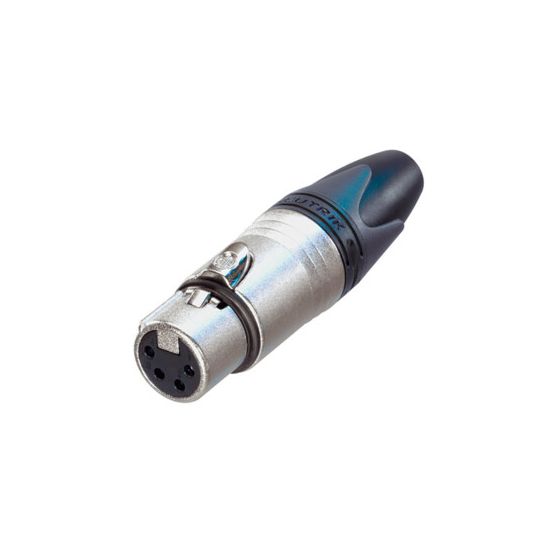

Neutrik | NC4FXX - XLR 4 Pole Cable Connector Female

Neutrik | NC4FXX - XLR 4 Pole Cable Connector Female

• Product: NC4FXX
• Connection Type: XLR
• Gender: female

• Capacitance between contacts: ≤ 7 pF
• Contact resistance: ≤ 3 mΩ
• Dielectric strength: 1,5 kVdc
• Insulation resistance: > 10 GΩ (initial)
• Rated current per contact: 10 A
• Rated voltage: < 50 V

• Cable O.D.: 3.5 - 8.0 mm
• Insertion force: ≤ 20 N
• Withdrawal force: ≤ 20 N
• Lifetime: > 1000 mating cycles
• Wiresize: max. 1.5 mm²
• Wiresize: max. 16 AWG
• Wiring: Solder contacts
• Locking device: Latch lock

• Boot: Polyurethan
• Contact plating: 2 µm Ag over 2 µm Ni
• Contacts: Brass (CuZn39Pb3)
• Insert: Polyamide (PA66)
• Locking element: Zinc diecast (ZnAl4Cu1) / Ck 67 (spring)
• Locking element plating: Nickel
• Shell: Zinc diecast (ZnAl4Cu1)
• Shell plating: Nickel
• Strain relief: Polyacetal (POM)

• Flammability: UL 94 V-0
• Standard compliance: IEC 61076-2-103
• Protec
