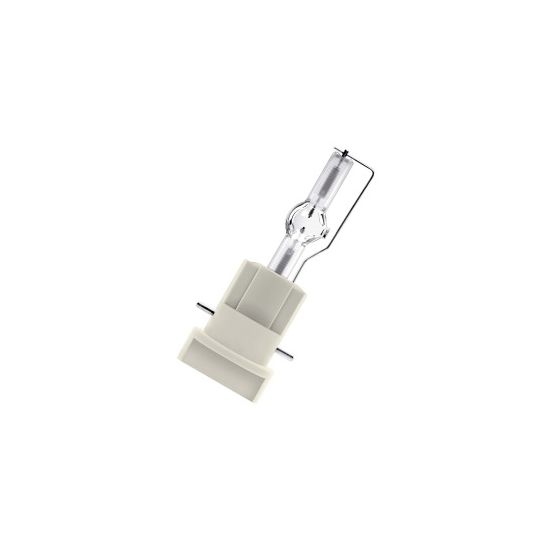

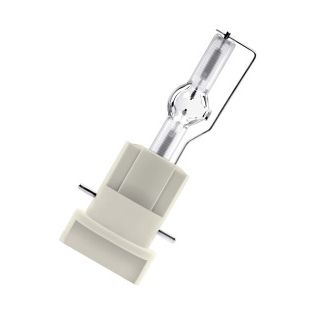

Osram | LOK-IT! 1000W/PS BRILLIANT VS1

Osram | LOK-IT! 1000W/PS BRILLIANT VS1

Features

• Power Series (PS) lamps offer even more compact Lok-it! options with enhanced performance features
• Individual performance features are color-coded for easy identification and include BRILLIANT lamps with high CRI >90 and BLUE lamps that offer 7500 K for bright white light
• Robust design with eXtreme Seal (XS) technology, allowing up to 450°C at the pinch seal
• Consistent lumen output over the life of the lamp
• Improved ceramic base allows high voltage up to 35kV
• Higher luminous efficacy than conventional HID lamps provides higher fixture efficiency
• Power series offers enhanced performance features and versatility, including BRILLIANT lamps with high CRI and BLUE lamps that offer 7500K for bright white light

• Product number (Americas): 55024
• Product name (Americas): LOKIT 1000/PS BRILLIANT 10/CS 1/SKU
• Family brand: Lok-it!
• Global order reference: Lok-it! 1000/PS Brilliant

• Nominal wattage: 1000 W
• Nominal voltage: 85 V
• Nominal current: 11.8 A

• Nominal luminous flux: 82000 lm
• Color temperature: 6000 K
• Color rendering index Ra: 95
• Light center length (LCL): 56.0 mm

• Electrode gap (cold): 5.5 mm
• Lamp base: -
• Diameter: 28.0 mm
• Length: 112.5 mm
• Product weight: 57.00 g

• Nominal lifetime: 750 hr
