Yamaha - EMX5

Yamaha - EMX5

Get Serious About Your Sound

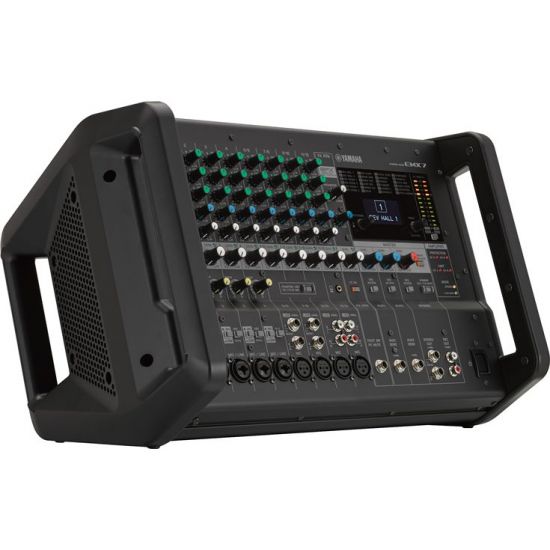

The new EMX7 and EMX5 were designed specifically for musicians, performers, or public speakers who put a premium on sound quality and convenient operation, and are ready to take their sound reinforcement to the next level. Despite their compact construction, only speakers and a microphone are required to configure a fully functioning, extremely portable, and reliable sound system with all the tools you need to mix, process, and deliver your audio just the way you want, anywhere you want.

Box-type robust and portable powered mixer featuring high efficiency power amplifier of 630W and mixer with comprehensive effects, 1-Knob Master EQ™ and built-in feedback suppressor.

• 2x 630W [4Ω], 2x 460W [8Ω] (1kHz THD+N less than 10% CEA2006)
• 2x 500W [4Ω], 2x 370W [8Ω] (1kHz THD+N less than 1% CEA2006)
• Powerful & High Efficiency Class-D Amplifier
• 12 Line Inputs (8 mono + 4 stereo)
• High-Z input (channel 4) to connect guitars or basses directly
• 1-Knob Master EQ™
• Onboard Feedback Suppressor
• Comprehensive, professional 24 different effects
• Metal chassis for extended operation and robustness
• Large handles for extreme portability and protection
• Universal power supply eliminates concern on power fluctuations
• Optional rack-mount kit available

Specifications

• OUTPUT POWER 1 kHz THD+N < 10%: 630 W + 630 W (4 Ω)
• (CEA2006): 460 W + 460 W (8 Ω)
• 1 kHz THD+N < 1%: 500 W + 500 W (4 Ω)
• (CEA2006): 370 W + 370 W (8 Ω)
• INPUT CHANNELS LINE INPUT: 12 (8 MONO + 4 STEREO)
• MIC INPUT: 8
• MONO INPUT (MIC/LINE): 4 (CH1-4)
• MONO/STEREO INPUT (MIC/LINE): 4 (CH5-12)
• STEREO INPUT (LINE): 4
• OUTPUT CHANNELS SPEAKERS: 2 [A, B]
• STEREO OUT: [L, R]
• AUX SEND: 2
• REC OUT: [L, R]
• BUS STEREO: 1
• AUX: 2 (incl. FX)
• EFFECT: 0
• USB AUDIO - USB IN/OUT: No (Used only for performing maintenance)
• PHANTOM POWER: +48 V
• POWER REQUIREMENTS: 100 - 240 V, 50 Hz/60 Hz
• POWER SUPPLY TYPE: Internal Universal Power Supply
• POWER CONSUMPTION: 45 W (Idle) / 250 W (1/8 Power)
• DIMENSIONS W x D x H: 465 mm x 325 mm x 308 mm (18.3" x 12.8" x 12.1")
• NET WEIGHT: 9.5 kg (20.9 lbs)
• INCLUDED ACCESSORIES: AC Power Code (2.5 m), Owner’s manual, Technical Specifications
• OPTIONAL ACCESSORIES: RK-EMX7 Rackmount kit, FC5 Foot Switch
• OPERATING TEMPERATURE: 0 to 40˚C

Featured Functions

• D-PRE MIC PREAMP: No
• FEEDBACK SURPPRESSOR: Yes
• 1-KNOB COMP: Yes
• SPX DIGITAL EFFECTS: Yes (24 programs. REV HALL1 / REV HALL 2 / REV ROOM 1 / REV ROOM 2 / REV STAGE 1 / REV STAGE 2 / REV PLATE / DRUM AMB / EARLY REF / GATE REV / SINGLE DLY / DELAY / VOCAL ECHO / KARAOKE / PHASER / FLANGER / CHORUS 1 / CHORUS 2 / SYMPHONIC / TREMOLO / AUTO WAH / RADIO VOICE / DISTORTION / PITCH CHANGE)

Electrical Specifications

• TOTAL HARMONIC Input to SPEAKERS: 0.1% @ 10 W (40 Hz - 20 kHz)
• DISTORTION: 0.05% @ 50 W (1 kHz)
• Input to STEREO OUT,: 0.03% @ +14 dBu (20 Hz - 20 kHz)
• AUX1 SEND, AUX2 SEND: 0.007% @ +20 dBu (1 kHz)
• FREQUENCY RESPONSE Input to SPEAKERS: +1 dB/-3 dB (40 Hz - 20 kHz), refer to the nominal output level @ 1 kHz
• Input to STEREO OUT,AUX1 SEND, AUX2 SEND: +0.5 dB/-1 dB (20 Hz - 20 kHz), refer to the nominal output level @ 1 kHz
• HUM & NOISE LEVEL Equivalent input noise: -117 dBu (20 Hz to 20 kHz)
• Residual output noise /Input to SPEAKERS: -66 dBu (40 Hz to 20 kHz, STEREO MASTER LEVEL: min)
• Residual output noise /Input to STEREO OUT,AUX1 SEND, AUX2 SEND: -80 dBu (20 Hz to 20 kHz, STEREO MASTER LEVEL: min)
• CROSSTALK: @ 1 kHz -85 dB
• INPUT CHANNEL PAD: 30 dB (CH1-4)
• FUNCTION HI-Z: Supported (CH4)
• HPH: 80 Hz, -12 dB/oct (CH1-3)
• COMP: 1 knob COMP (CH1-4)
• INPUT CHANNEL EQ High: ±15 dB (10 kHz shelving)
• Mid: ±15 dB (2.5 kHz peaking)
• Low: ±15 dB (100 Hz shelving)
• LED LEVEL METER Pre Monitor Level: 2 x 7 points LED meter (PEAK, +10, +6, 0, -6, -10, -20 dB)
• PEAK LED: LED turns on when post EQ signal reaches 3 dB below clipping level
