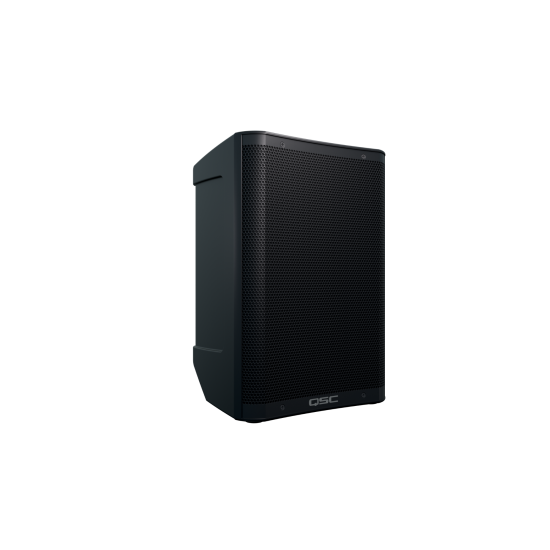

The CB10 is a compact, battery-powered loudspeaker system offering unrivaled audio performance and versatility. It features a 10-inch LF driver, 1-inch compression driver and 3-channel mixer for microphones, instruments and Bluetooth® streaming. Ideal for DJs, event professionals and musicians, it offers easy plug-and-play operation and customization via the QSC Loudspeaker Control app.

Key Features

PROFESSIONAL PA PERFORMANCE
Powerful, Compact 2-way System

440 watts of peak power (Class D)

• 10-inch woofer
• 1-inch HF compression driver
• 127 dB @ 1 m (peak SPL)

Integrated 3-Channel Mixer
Wireless Remote Control

• Two combo XLR inputs with independent Factory Presets
• QSC Loudspeaker Control App (iOS & Android) for convenient system remote control

Room Delay

• 200 ms (max) of room delay

VERSATILE

Simple to Use

• Large carry handle on the enclosure top
• Lightweight and portable
• 30 degrees tilt back (floor deployment)
• Integrated pole cup (stand deployment)

Bluetooth® 5.1 Audio

• For control and audio with True Wireless Stereo (TWS) Bluetooth

Battery and AC Power

• Up to 12 hours of battery power (rechargeable in approx. 4 hrs)
• User-installable/removable battery pack
• AC power for unlimited steady operation

Control your CB10 and all QSC Bluetooth-equipped loudspeakers right from your phone. The Loudspeaker Control app gives you instant access to essential audio controls and advanced capabilities.

• Model: CB10
• Configuration: Two-way rechargeable loudspeaker system
• LF Transducer: 254 mm (10-inch), cone
• HF Transducer: 25.4 mm (1-inch), compression driver
• Frequency Response (-6 dB): 51 Hz – 18 kHz
• Frequency Range (-10 dB): 47 Hz – 20 kHz
• Nominal Coverage Angle: 90° axisymmetric
• Maximum Rated SPL: 127 dB @ 1 m
• Amplification (Peak): Class D, 440 W
• Cooling: Convection cooling
• Backpanel Controls: 3 × rotary level potentiometers (Gain); 2 × MIC boost push-switch; 2 × 6-way contour selection rotary-switch (with custom app controls); Bluetooth switch; output select switch; AC power switch
• Loudspeaker Control App Functions: Input gain control; presets (Channels A & B); EQ; reverb (Channels A & B); ducker (Channel A); contour selection; custom output routing; Bluetooth audio configuration; firmware updates
• Footswitch Functionality: Channel mute; FX mute; channel boost
• Backpanel Indicators: 3 × input signal/clip LEDs; 2 × MIC selected LEDs; 3 × battery charge LEDs; limiter active LED; Bluetooth LED; output select LED; power/standby LED
• Connectors: 2 × locking XLR/F – 6.35 mm combo (line & mic/line input); 1 × 3.5 mm TRS stereo input; 1 × 6.35 mm TS footswitch; 1 × XLR/M mix output; 1 × locking IEC power connector
• DC Power (Battery): Rechargeable Lithium-ION 22.2 V, 4400 mAh, 97 Wh battery module (1× included)
• Battery Life: Up to 12 hours
• Battery Charging Time: Approx. 4 hours
• Battery Chemistry: Lithium Nickel Manganese Cobalt Oxide
• AC Power Input: 100–240 VAC, 50/60 Hz
• AC Power Consumption: 100 VAC 1A / 120 VAC 0.9A / 240 VAC 0.5A
• Enclosure Material: Polypropylene
• Color: Black (RAL 9011)
• Grille: Powder-coated steel with internal lining (18 gauge)
• Loudspeaker Dimensions (H × W × D): 465 × 313 × 287 mm / 18.3 × 12.3 × 11.3 in
• Carton Dimensions (H × W × D): 559 × 406 × 381 mm / 22 × 16 × 15 in
• Net Weight: 12.2 kg / 26.9 lb
• Shipping Weight: 14.5 kg / 32 lb
• Regulatory: CE, WEEE, TUV, China RoHS, RoHS II, FCC Class A
• Optional Accessories: CB10-CVR weatherized cover; CB10-BATTERY rechargeable Lithium-ION battery module
