Aurora - ASP-882A

Aurora - ASP-882A

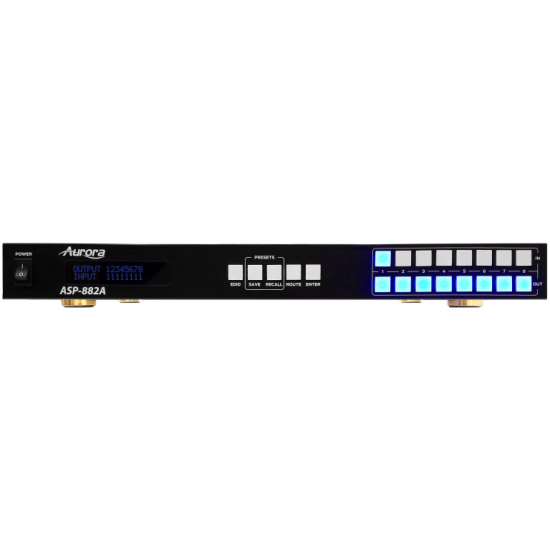

The ASP-882A is an HDMI® 2.0A 8x8 4K 60Hz matrix offering the power and flexibility you need at a cost effective price. Route Ultra High Definition video sources and multi-channel digital audio from any of the HDMI® inputs to the any of the HDMI® outputs at the same time. The front keypad and LCD display are designed for easy operation and quick status of routing. LAN and RS-232 Ports have advanced protocols allowing hot plug detection, signal detection, EDID table loading/recalling, presets, and more. The advanced protocol make the ASP-882A perfect for commercial applications with auto switching, digital signage with device detection, or residential systems with home automation.

Package Contents:

• 1x ASP-882A
• 1x 12v Desktop Power Supply
• 2x Rack Mount Ears

Specifications

Technical

• RS-232 Connector: DB-9 Female
• Front Panel: Blue Backlit LCD and Selection Keys
• Bandwidth: 600MHz
• Resolutions: 480i / 480p / 720p / 1080i / 1080p60 8-12 bit color / 3840x2160 @ 30Hz / 4Kx2K @ 30Hz / 4Kx2K @ 60Hz
• HDCP Compliant: 1.4 and 2.2
• HDMI Output Distance: 1080p up to 20m, 4K30Hz up to 10m, 4K60Hz up to 5m Note: Cable quality may impact distance
• HDMI Connector: Type A (19 Pin Female)
• RS-232 Baud Rate: 9600 8N1 DB9 Female (Pins 2-TX, 3-RX, 5-GND), Straight through Cable to PC
• LAN Port: RJ-45 (Telnet Communications)

Mechanical

• Housing: Aluminum enclosure
• Dimensions [L x W x D]: 8.66" x 17" x 1.7" [220 x 430 x 44mm]
• Weight: 7.2lbs (3.25kg)
• Mounting: 1RU Rack Mount 19” x 1.75”
• Power supply: 12v 7.5A DC
• Power consumption: 57Watts
• Operation temperature: 0~40°C [32~104°F]
• Storage temperature: -20~60°C [-4~140°F]
• Relative humidity: 20~90% RH [no condensation]
