Shure | ULXD2/B58

Shure | ULXD2/B58

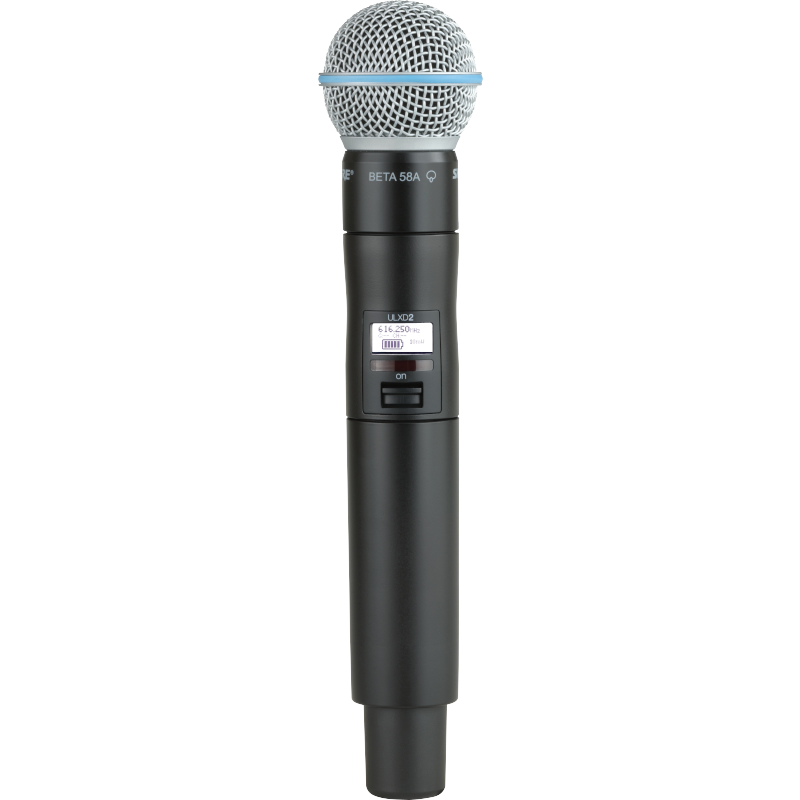

The Shure ULXD2 is a handheld wireless transmitter compatible with ULX-D Digital Wireless Systems.

• The Shure ULXD2 is a handheld wireless transmitter compatible with ULX-D Digital Wireless Systems.
• 30 Hz–20 kHz range with flat frequency response (actual response is microphone dependent)
• Interchangeable Shure microphone cartridges
• AES 256-bit encryption for applications for which secure transmission is needed
• Proprietary Shure Gain Ranging optimizes the system’s dynamic range for any input source, eliminating the need for
• transmitter gain adjustments
• Shure Lithium-Ion rechargeable battery pack provides over 9 hours of battery life, precision metering in hours and minutes, and zero memory effect
• External charging contacts for docked charging (with the SBC200 Dual Docking Charger)
• Backlit LCD with easy to navigate menu and controls
• Rugged metal construction
• Frequency and power lockout

The Shure ULXD2 is a handheld wireless transmitter compatible with ULX-D Digital Wireless Systems. With a rugged yet lightweight aluminum body and integrated antenna, the ULXD2 delivers uncompromising audio quality and RF performance, AES 256-bit encryption for secure transmission, and advanced rechargeability options for professional sound reinforcement applications.

• Product series: ULX-D
• Usage environments: Theater stage
• Optional accessories: SBRC
• Battery life (Lithium): Up to 9 h
• Battery life (Alkaline): Up to 11 h
• Audio mute: Yes
• Detachable antennas: No
• Switchable RF power: Yes
• Frequency diversity: No
• High density mode: Yes
• Interchangeable handheld capsule: Interchangeable
• Form factor: Handheld
• Charger options: Docking charger
• Operating range: N/A
• Battery life note: Frequency band and power output dependent
• Battery status: Leveled battery life indication with AA, HH:MM (hours and minutes) with rechargeable Shure battery
• Encryption: Yes (AES-256)
• Transmission: Digital in VHF, UHF, 900 MHz ISM, 1.2 GHz, 1.5 GHz, 1.8 GHz
• Weight: 289 g
• Width: 51 mm
• Height: 220.9 mm
• Depth: 51 mm
• Component: Wireless transmitter
• Color: Black
• Logic output: No
• Frequency band: G56 (470–636 MHz)
• On/Off switch: Yes
• Mute switch: No
• Status indicator: LED
