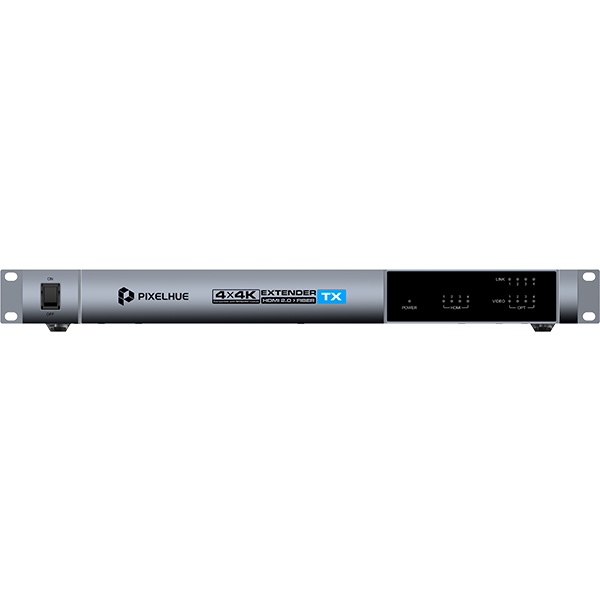

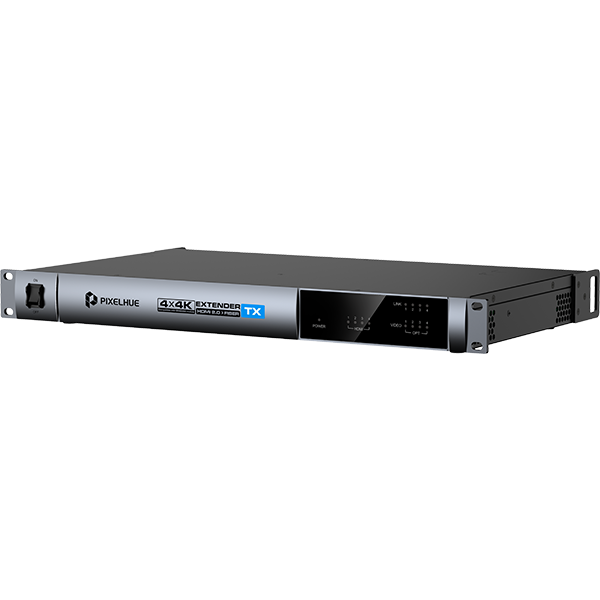

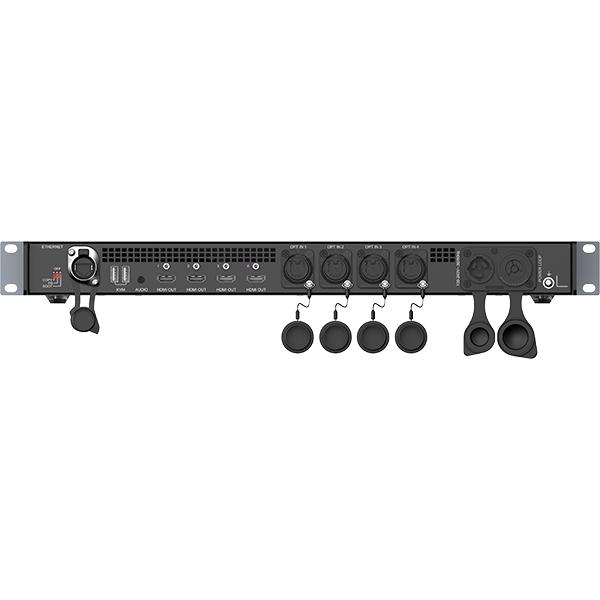

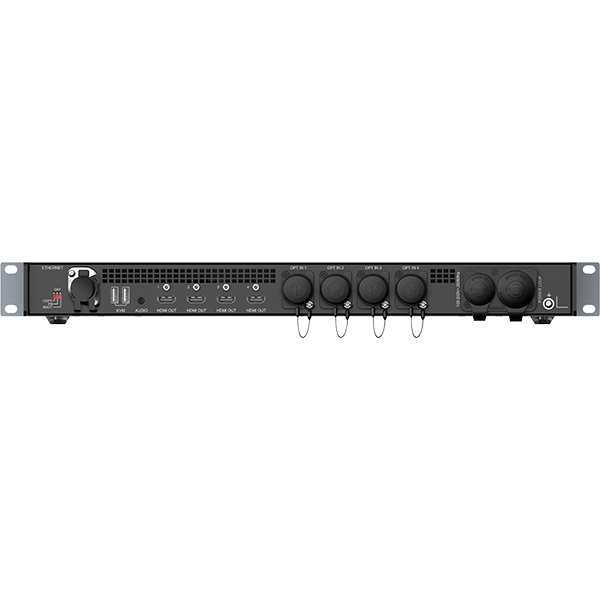

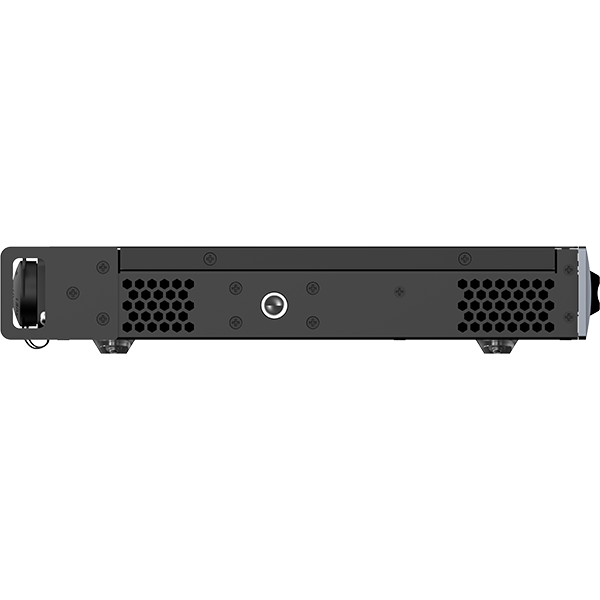

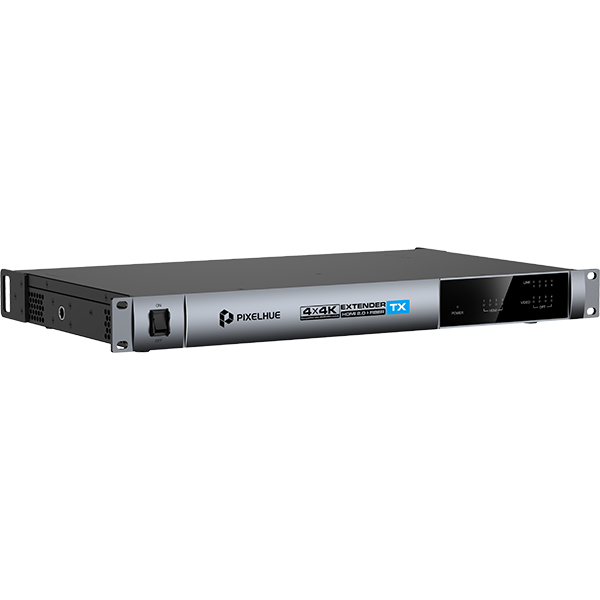

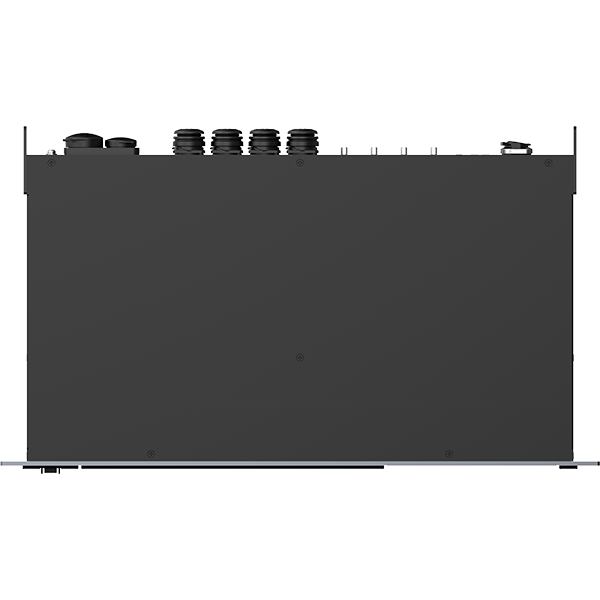

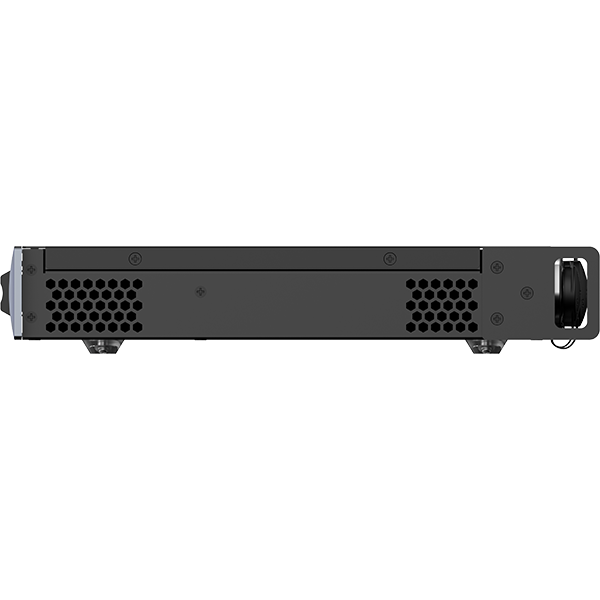

Pixelhue | EP4R Pro-S - Fiber Optic Extender

Pixelhue | EP4R Pro-S - Fiber Optic Extender

The EP4T/R Pro fiber extender employs advanced fiber optic technology to achieve lossless, long-distance transmission of audio and video signals via fiber optic. Unlike traditional cables, it effectively addresses limitations in length and signal degradation.

Featuring lossless compression technology, the EP4T/R Pro ensures optimal video signal quality, providing users with a clear and detailed visual experience. Its compact design and straightforward installation offer plug-and-play convenience, eliminating the need for complex setup. This allows users to effortlessly extend audio and video signals to their desired location.

The EP4T/R Pro is versatile and can be employed in various settings, including home theaters, conference systems, and monitoring centers. Suitable for both commercial and personal use, it delivers stable and reliable video transmission, making it an ideal choice for high-definition video transmission over long distances.

• Power: 100–240V~, 50/60Hz
• Max Power Consumption: 28 W
• Operating Temperature: −10°C to +55°C
• Operating Humidity: 5% RH to 85% RH, non-condensing
• Storage Temperature: −10°C to +60°C
• Storage Humidity: 5% to 95% RH, non-condensing
• Dimensions: 482.6 mm × 43.6 mm × 280 mm
• Noise Level (Typical at 25°C/77°F): 31 dB (A)
• Accessories: 1× Power cable, 1× Ethernet cable, 1× HDMI cable, 1× Certificate of Approval, 1× Safety Manual
• Net Weight: 3.6 kg
• Gross Weight: 6.2 kg
• Packing Size: 565 mm × 450 mm × 175 mm
• HDMI 8-bit RGB 4:4:4 / YCbCr 4:4:4: 8192×1080@60Hz / 4096×2160@60Hz
• HDMI 8-bit YCbCr 4:2:2: 4096×2160@60Hz
• HDMI 8-bit YCbCr 4:2:0: 4096×2160@60Hz
• HDMI 10-bit RGB 4:4:4 / YCbCr 4:4:4: 4096×2160@30Hz
• HDMI 10-bit YCbCr 4:2:2: 4096×2160@60Hz
• HDMI 10-bit YCbCr 4:2:0: 4096×2160@60Hz
• HDMI 12-bit YCbCr 4:2:2: 4096×2160@60Hz
• HDMI 12-bit YCbCr 4:2:0: 4096×2160@60Hz
