Pharos - TPS 5 W - Designer Touch Panel Station 5” - White

Pharos - TPS 5 W

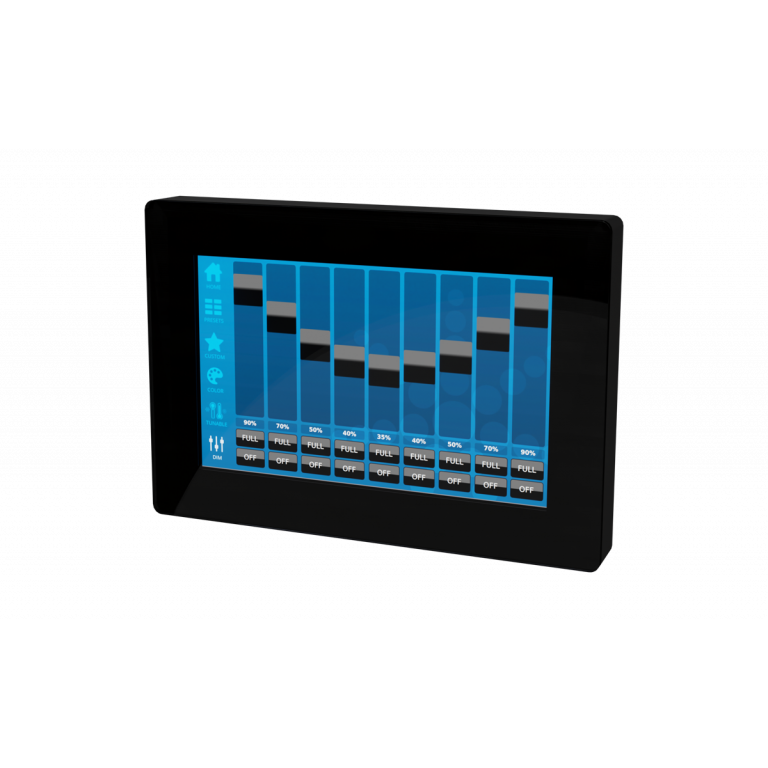

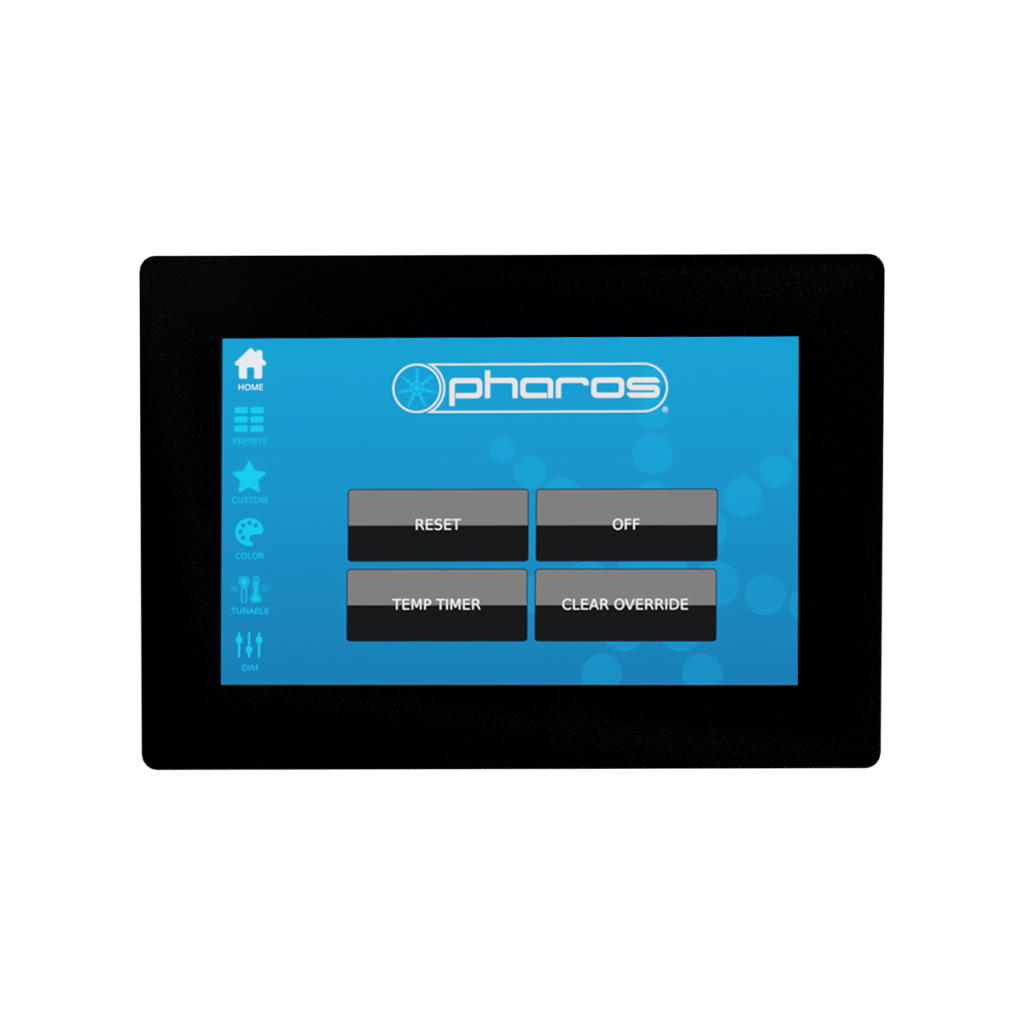

The Pharos TPS 5 (Touch Panel Station 5”) is an elegant interface with a customisable, 5” capacitive touchscreen, compatible with any Pharos Designer Controller. The front panel is a seamless, uninterrupted glass plate available in Black and in White, giving an elegant touch experience, with improvements to its core functionality, touch performance, screen resolution, and vastly superior aesthetics. And, with a unique and innovative universal mounting solution, the TPS 5 will be easy to wall mount in your installation, regardless of region.

Capabilities

• Orientation: Portrait or landscape
• Layouts: Free editable layouts
• Pages: Any number of pages, although performance may be affected by complexity and number
• Navigation: Convenient and custom navigation via configurable navigation bars
• Fonts: Custom font support, including fonts with extended character sets e.g. Arabic, Chinese, Cyrillic,
• Japanese and Korean
• Themes: Wide selection of themes available to download, or create your own with Designer’s theme editor
• Controls: A wide array of customisable buttons, sliders, colour pickers, labels, keypads and clocks
• Flexible Integration: Fully integrated with Designer Trigger, so button states, graphics, and captions can change according to any number of preset triggers
• Secure Access: Keypad for PIN-code entry; multiple user levels
• Commissioning: Commissioned with Pharos Designer 2.9 or later

Specifications

• Power PoE: (IEEE802.3af, Class 0), 7W typical
• Required: Any Pharos Designer Controller
• Configuration: Pharos Designer 2.9 or later
• Data Storage: Removable MicroSD Card (supplied)
• Temperature: 0°C to 50°C (32°F to 122°F)
• Humidity: 10-90% relative, non-condensing
• Ingress: IP40

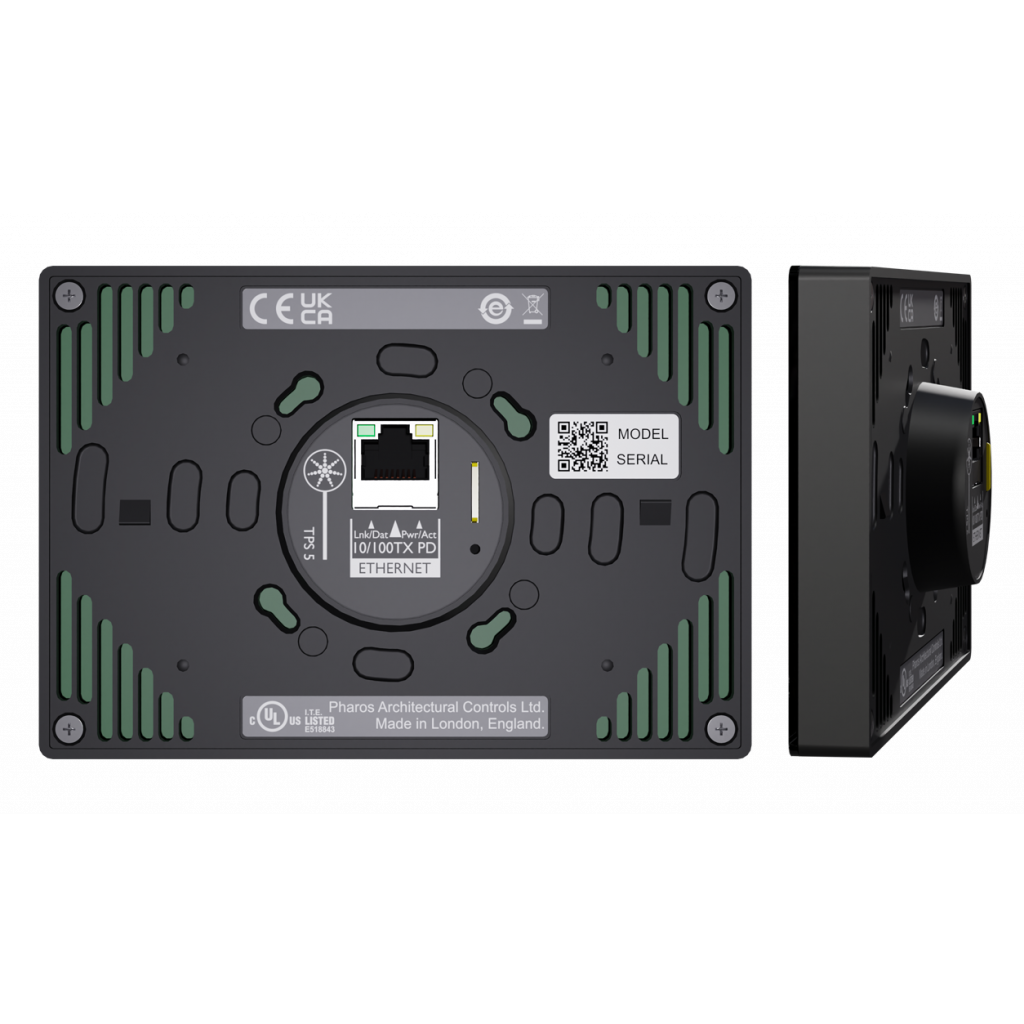

• Physical: Wall mounted, partly recessed with a custom mounting plate that supports UK 1 & 2-gang 35mm, EU 35mm or US 2.5” backbox (mounting plate included) 14 x 9.7 x 2.8 cm (5.5 x 3.8 x 1.1 in) 0.25 kg (0.6 lbs) (ex. mounting plate)
• Shipping: 19.5 x 15 x 7.5 cm (8 x 6 x 3 in), 0.5 kg (1.1 lbs)
• Recovery: Hardware watchdog and recessed reset button
