Pharos - RIO D4 - Pharos Remote DALI 4-Port Device

Pharos - RIO D4 - Pharos Remote DALI 4-Port Device (DALI x4)

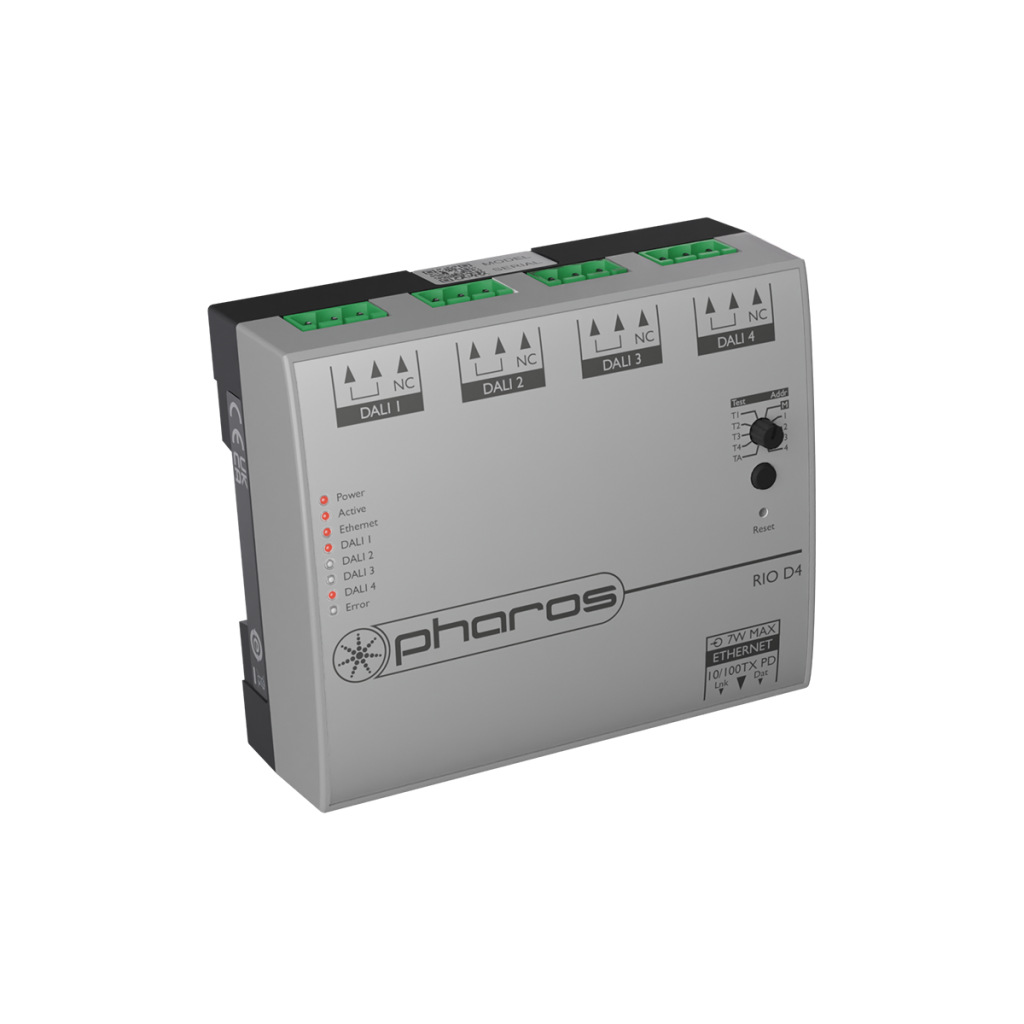

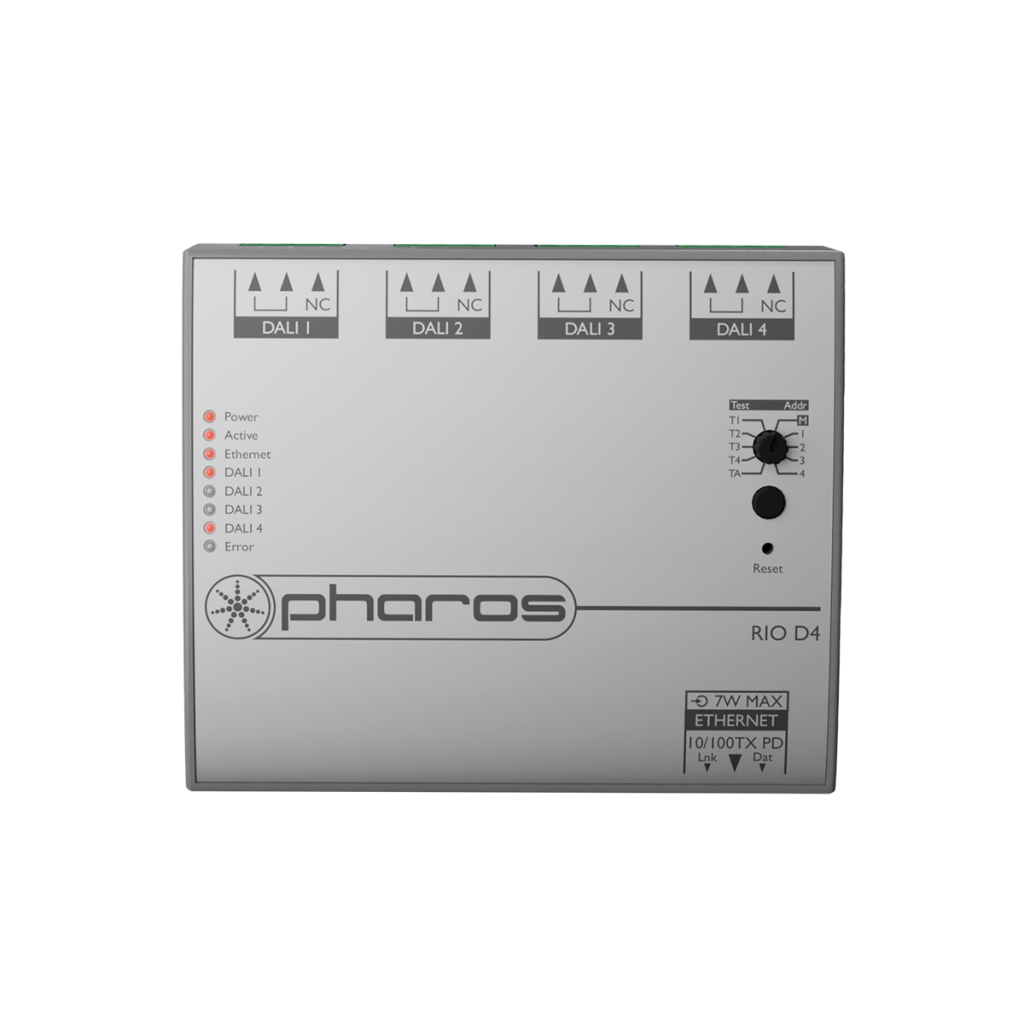

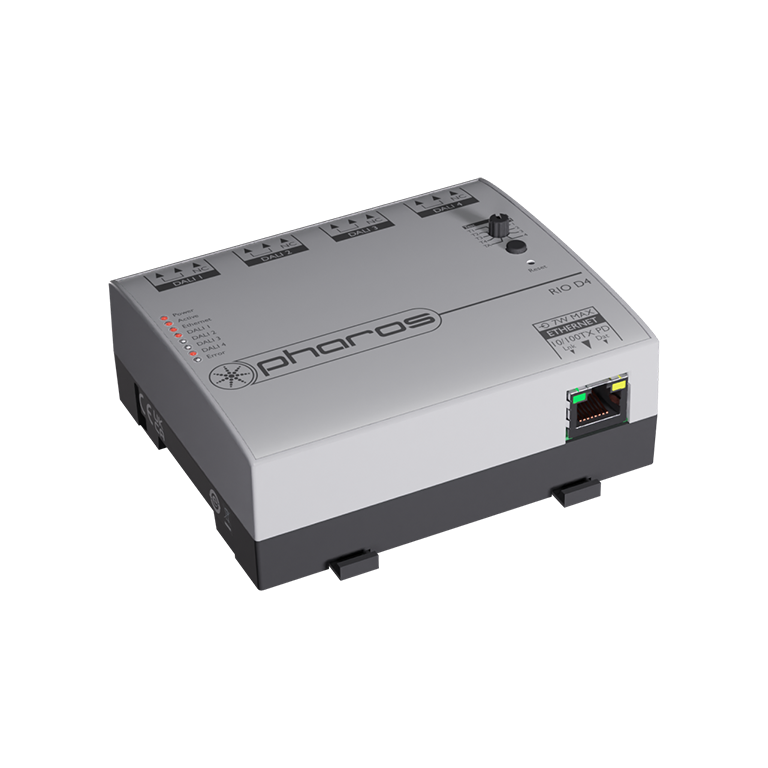

The Pharos RIO D4 (Remote DALI 4-Port) is a remote input/output device that provides a convenient and scalable way to control DALI fixtures and ballasts from Pharos controllers. Each RIO D4 supports four DALI buses, which can be used as outputs for control and for receiving DALI commands. Compact plastic enclosure with installer-friendly connectors, DIN-rail mount and PoE for deployment where it is needed, the RIO D4 is connected to a Pharos controller over an Ethernet network.

Compatible with Pharos Designer 2.14 or later

Capabilities

• DALI Control: Control for up to 64 DALI devices per port including device discovery and configuration
• DALI Receive: Receive DALI messages from other controllers such as wall panels or occupancy sensors
• Emergency Lighting: (Designer only) Schedule automatic Function and

  • Duration tests; automatic querying for battery level and
  • Lamp hours; test result and error reporting web page
• Bus Power Detection: Detect bus power status, with reporting also available in Pharos Designer.
• Scalable: Support for up to 200 Remote Devices, including RIO D4 units, shared across multiple controllers in a single
  Pharos Designer project. Device limits assigned to controllers depend on controller type – 16 for LPC 1 / TPC, 32 for LPC 2, 64 for LPC 4 and 100 for LPC X / VLC / VLC+.
• Capacity: DALI interface limits (total configured DALI ports) assigned to controllers depend on controller type – 16 for LPC 1 / TPC, 32 for LPC 2, 64 for LPC 4 and 100 for LPC X. 100 for VLC / VLC+ for triggering only.

Specifications

• Power: PoE (IEEE802.3af, Class 2), 7W max

• Required: Any Pharos Designer Controller, DALI power supply per port

• Configuration: Pharos Designer 2.13 or later

• Addressing: By rotary selector switch

• Temperature: 0°C to 50°C (32°F to 122°F)

• Humidity: 10-90% relative, non-condensing

• Ingress: IP40

• Physical: 6 unit wide DIN rail mounting enclosure (35/7.5 rail) 10.8 x 9 x 4 cm (4.2 x 3.5 x 1.6 in) 0.2 kg (0.5 lbs)

• Shipping: 19.5 x 15 x 7.5 cm (8 x 6 x 3 in), 0.4 kg (0.9 lbs)

• Recovery: Hardware watchdog and recessed reset button
