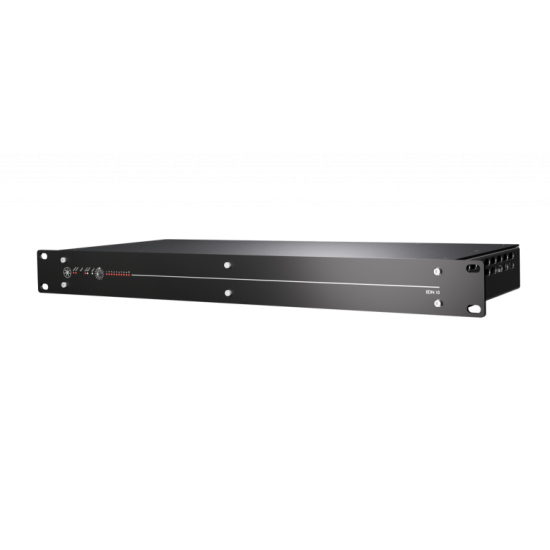

Pharos | EDN 10 - Ethernet Data Node 10
Ca. 4 weken*
Pharos | Designer EDN 10 Ethernet Data Node 10 (1+1 Ethernet, 10 DMX/RDM)
The Pharos Designer EDN (Ethernet Data Node) is a convenient and scalable gateway, providing cost-effective Ethernet-distributed DMX ports for large control projects.
The EDN is an easily configurable networking node that is specifically designed to add physical DMX ports to Pharos Designer controllers and integrates natively with the full Pharos Designer range. Have the reassurance of using Pharos hardware all the way to the fixture.
Isolation
The EDN offers up to 20 DMX512 output ports to control your fixtures. Each port is independently galvanically isolated up to 2kV, ensuring the control circuitry and each port of the EDN is protected against a multitude of electrical line faults, including earth potential rise and ground loops.
Protection
DMX ports on the EDN are “self-healing”, giving your equipment added protection from incorrect setup and energy surges, such as short circuits, power induction and AC power faults. Should an energy surge occur, it will be contained by the EDN, preventing it from flowing into other components; once the external fault is cleared, the ports “self-heal”, restoring DMX output automatically.
Integration
Built from the ground up on Pharos technology, the EDN natively interfaces with the rest of the Designer product range including Designer 2 software. Connecting it to your Designer lighting project is as simple as ensuring the EDN is on the same network as the Designer controllers. From there, Designer will detect it, giving you full control of your Ethernet network lighting solution with minimal effort.
Power Connection: IEC power connector with integrated power switch (power cable not supplied).
Compatibility: Compatible with any Pharos Designer Controller.
Configuration: Requires Pharos Designer 2.7 or later (EDN 20) and 2.8 or later (EDN 10).
Addressing: Configured via a rotary selector switch.
Operating Temperature: 0 °C to 50 °C (32 °F to 122 °F).
Humidity: 10-50% relative humidity, non-condensing.
Ingress Protection: IP20 rated for indoor use.
Port Protection: Self-healing ports withstand up to 300 V AC or 650 V peak impulse voltage.
Isolation: Ports are independently galvanically isolated up to 2 kV.
Physical Construction: 19-inch rack-mount unit, 1U.
Dimensions: 48.3 × 18.1 × 4.5 cm (19 × 7.1 × 1.8 in).
Weight: 1.6 kg (3.5 lbs).
Shipping Dimensions: 57 × 30 × 18 cm (22 × 12 × 7 in).
Shipping Weight: 3.2 kg (7 lbs).
Recovery Features: Hardware watchdog and recessed reset button.
