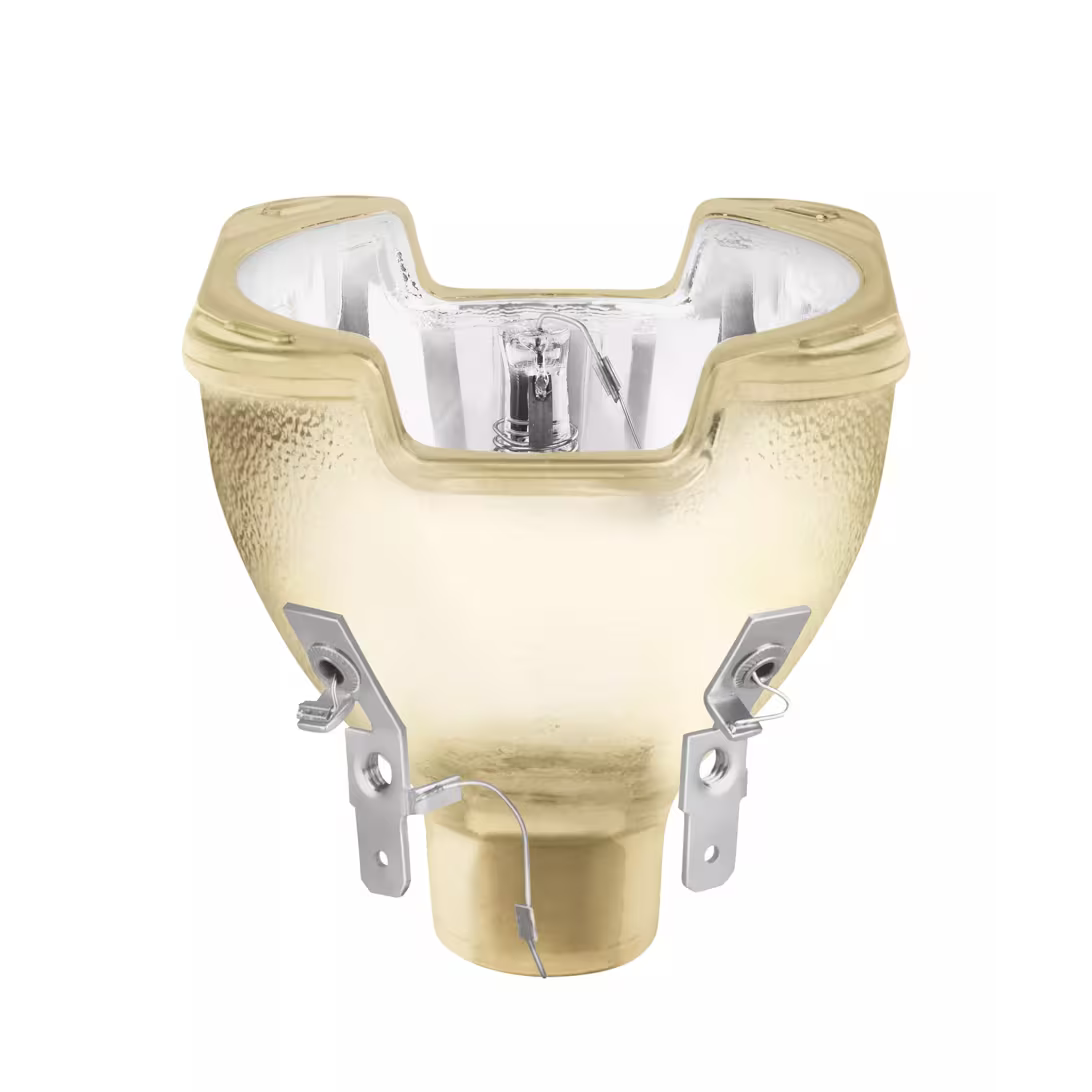

Osram | SIRIUS HRI 330W X8 2X1

Osram | SIRIUS HRI 330W X8 FS1

Features

• Lightweight and compact reflector lamps with optimized ECG
• High luminance through very short arc and high pressure
• Optimized burner design allows any burning position
• Stable light output over the entire lifetime
• Easy lamp replacement

• Product number (Americas): 54738
• Product name (Americas): SIRIUS HRI 330W X8 2/CS 1/SKU
• Family brand: SIRIUS HRI
• Category: CUSTOMIZED
• Global order reference: SIRIUS HRI 330 W X8

Electrical Data

• Nominal wattage: 330 W
• Nominal voltage: 75 V
• Nominal current: 4.4 A

Photometric Data

• Nominal luminous flux: 18000 lm
• Color temperature: 8000 K
• Color rendering index Ra: 85
• Working distance: 37.4 mm

Physical Attributes & Dimensions

• Electrode gap (cold): 1.0 mm
• Lamp base: -
• Diameter: 58.0 mm
• Diameter (in): 0.236 in
• Length: 66.0 mm
• Product weight: 100.00 g

Operating Conditions

• Burning position: Any

Lifetime Data

• Nominal lifetime: 1500 hr
