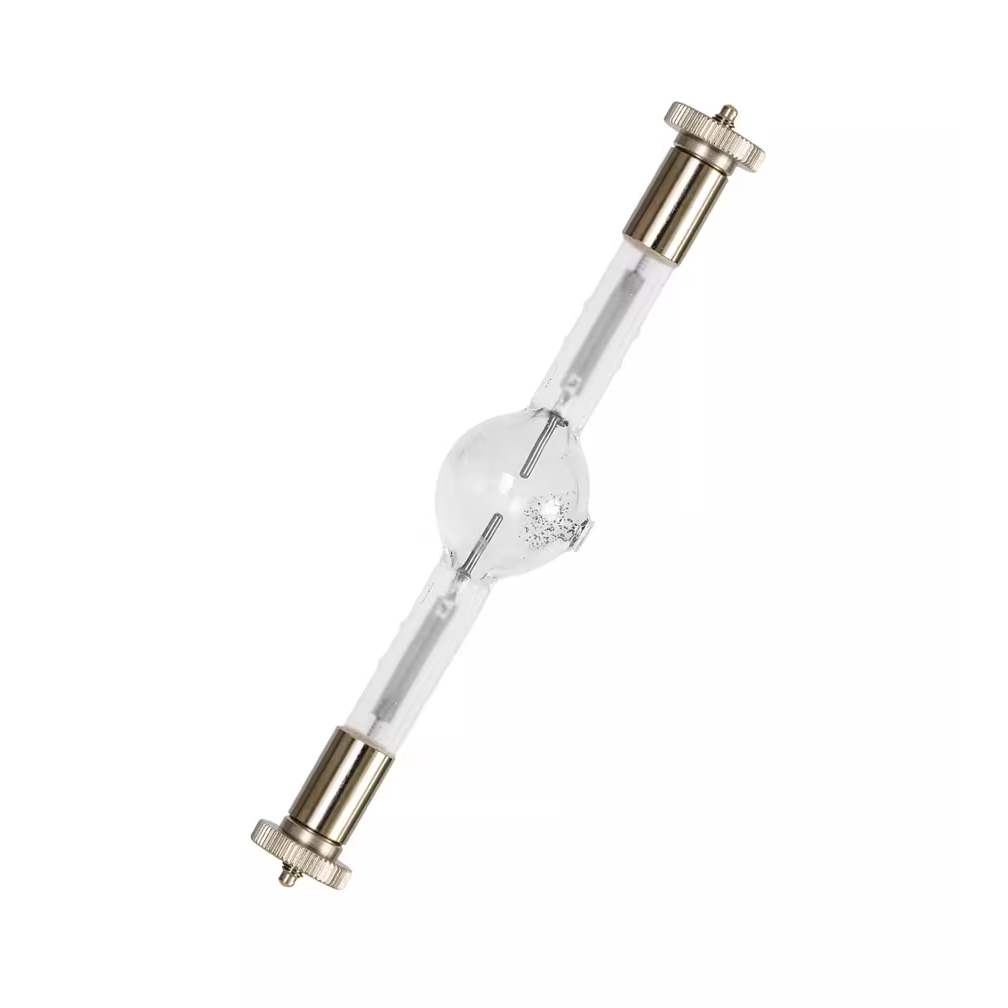

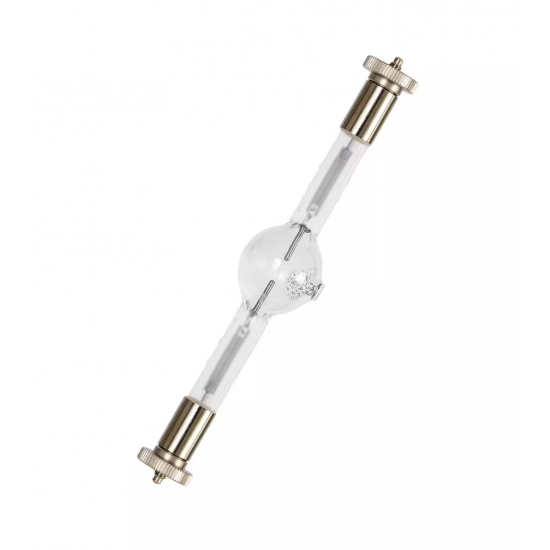

Osram | SHARXS HTI 1500W/D7/60 SFC10-4 VS1

Osram | SHARXS HTI 1500W/D7/60 SFC10-4 VS1

Features

• SHARXS lamps provide consistent lengths and bases within each SharXS family for simplified fixture designs (Baby
• SharXS - 93mm, SharXS - 136mm, Maxi SharXS - 220mm)
• Robust design with eXtreme Seal (XS) technology, allowing up to 450°C at the pinch seal
• Hot restart capability
• Natural tone of light with CRI as high as 90 for "Brilliant" types
• Pre-focus base for accurate lamp installation

• Product number (Americas): 54319
• Product name (Americas): SHARXS HTI 1500W/D7/60 10/CS 1/SKU
• Family brand: SharXS HTI
• Product remark: May be operated from 1,200…1,500 W
• Global order reference: SHARXS HTI 1500 W/D7/60

Electrical Data

• Nominal wattage: 1500 W
• Nominal voltage: 110 V
• Ignition voltage: 5.0 / 35 kVp
• Nominal current: 13.6 A

Photometric Data

• Luminance: 42000 cd/cm²
• Nominal luminous flux: 145000 lm
• Color temperature: 6000 K
• Color rendering index Ra: ›80
• Light center length (LCL): 57.5 mm

Physical Attributes & Dimensions

• Electrode gap (cold): 7.0 mm
• Diameter (in): 0.984 in
• Diameter: 24.5 mm
• Length: 136.0 mm
• Product weight: 35.00 g

Operating Conditions

• Burning position: Any
• Maximum permitted pinch temperature: 450 °C

Lifetime Data

• Nominal lifetime: 750 hr

Environmental & Regulatory Information

• Information according Art. 33 of EU Regulation (EC) 1907/2006 (REACh)
• Primary article identifier: 4008321285294
• Declaration no. in SCIP database: No declarable substances contained
• Candidate list substance 1: No declarable substances contained

Packaging information

• EAN: 4008321285294
• Unit: Piece
• Dimension (l x w x h): 100mm x 59mm x 245mm
• Weight: 126.00 g
• Volume: 1.45 dm³

Country specific information

• EAN: 4008321285294
• METEL code: OSRHTI1500D760
