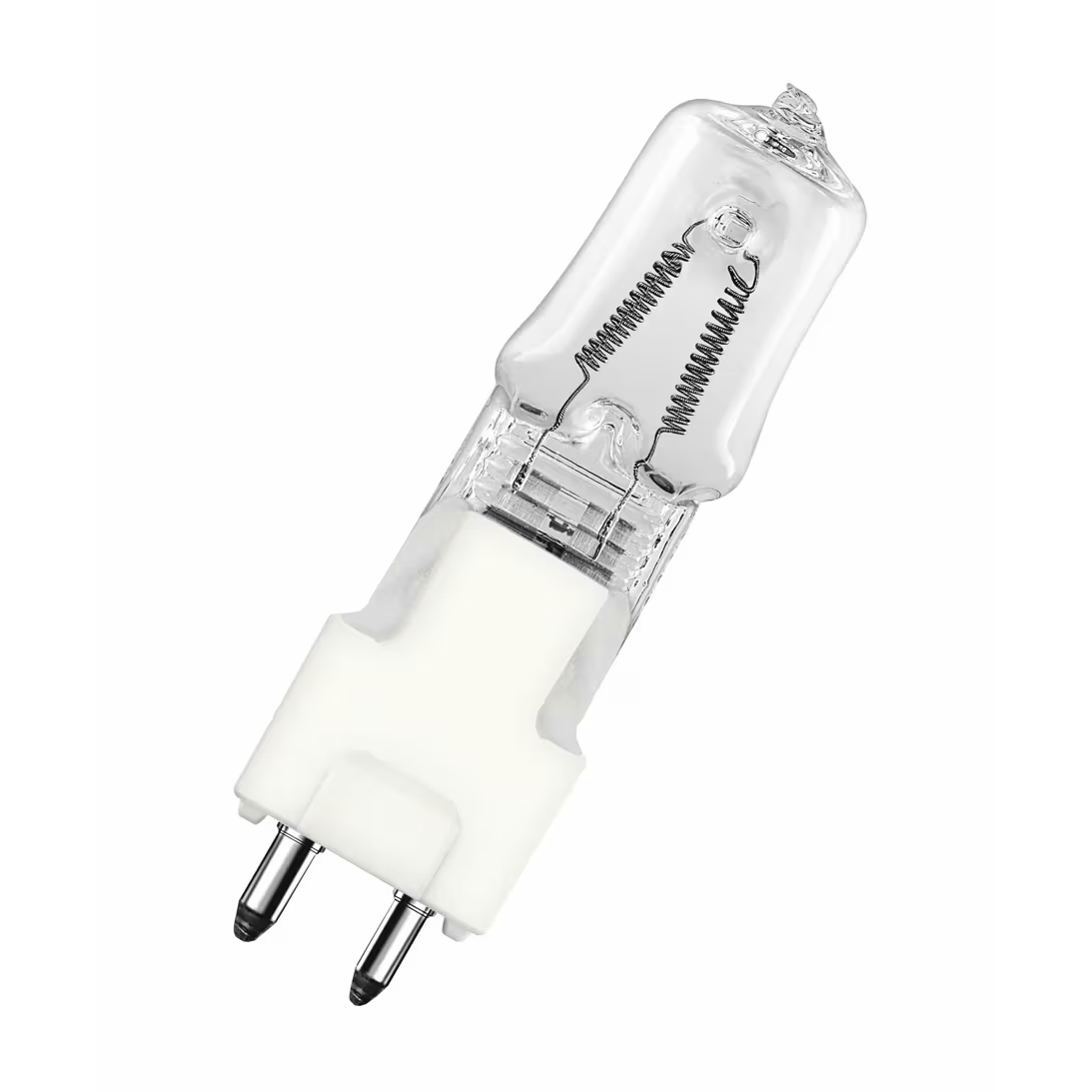

Osram | 64672 M/40 500W 230V GY9.5 12X1

Osram | 64672 M40 500W 230V GY9.5 FS1

Features

• Robust construction for lasting performance
• Consistent color over the life of the lamps
• Instant on and nearly constant luminous flux over the life of the lamp
• Broad product portfolio supporting the stage and studio markets
• Dimmable with traditional amber shift

• Product number (Americas): 54951
• Product name (Americas): 64672 M/40 500W 230V 12/CS 1/SKU
• Lamp type: SINGLE ENDED
• ANSI code: -
• LIF code: M40
• Global order reference: 64672

Electrical Data

• Nominal wattage: 500 W
• Nominal voltage: 230 V

Photometric Data

• Nominal luminous flux: 8500 lm
• Useful luminous flux (Φuse): 7905 lm
• Φuse value refers to luminous flux: 360
• Illuminated field: 12.0*11.0 mm²
• Color temperature: 2900 K
• Correlated color temperature CCT: 2883 K
• Chromaticity coordinate x: 0.446
• Chromaticity coordinate y: 0.407
• Color rendering index Ra: 100

Physical Attributes & Dimensions

• Lamp base: GY9.5
• Diameter: 22.0 mm (0.830 in)
• Length: 89.9 mm
• Product weight: 20.00 g

Operating Conditions

• Burning position: Any
• Dimmable: Yes

Lifetime Data

• Nominal lifetime: 2000 hr
