Neutrik | NLT8FXX-BAG - SpeakON TXX Connector 8 Pole Female

Neutrik | NLT8FXX-BAG - SpeakON TXX Connector 8 Pole Female

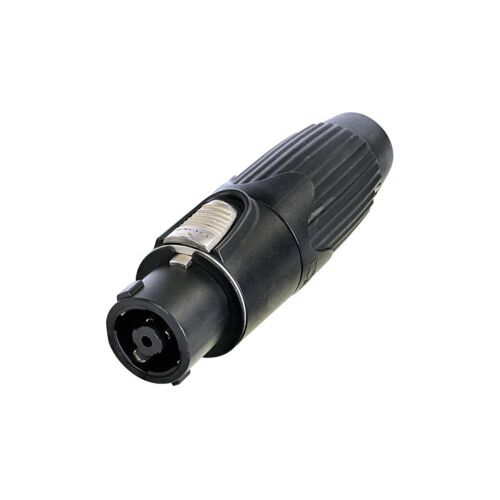

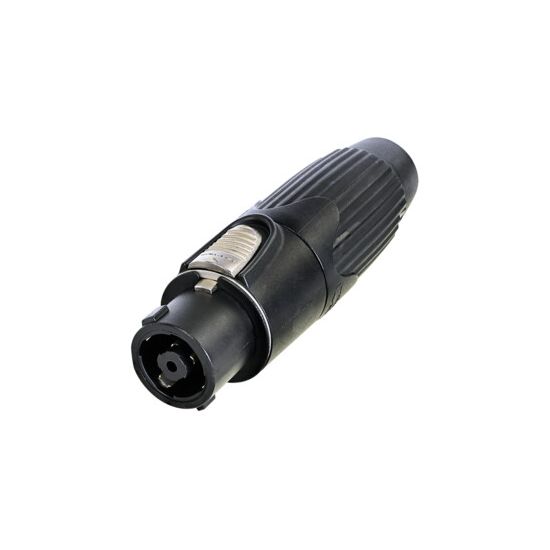

8 pole female cable connector, metal housing, chuck type strain relief, solder contacts.

This connector is accepted within audio equipment designed according to IEC 62368-1 due to its component certification according to IEC 61984.

The speakON STXX Series was especially designed for heavy duty amplifier-loudspeaker applications like professional touring. The extremely rugged and durable STXX Series features an all metal housing.

• IEC 61984 certified, thus accepted as a component of equipment acc. to IEC 62368-1
• Current rating: 30 A rms
• Extremely robust metal housing and glass reinforced V-0 material insert designed for harsh and demanding environment
• Precise “Quick Lock” system
• Compatible with complete speakON 8 pole product series

Product: NLT8FXX-BAG
Gender: Female

Electrical

• Contact resistance: < 2 mΩ
• Dielectric strength: 1.5 kVac
• Insulation resistance: > 0.1 GΩ (after dampheat)
• Rated current per contact: 30 A rms continuous (acc. to IEC 61984)
• Rated voltage: 250 V ac
• Attention: speakON is NOT to be used as a mains or power supply connector (AC / DC)!

Mechanical

• Cable O.D.: 8 - 20 mm
• Cable retention: ≥ 220 N (subject to cable O.D. and material)
• Lifetime: > 5000 mating cycles
• Wiresize: 1.5 mm² - 6 mm²
• Wiresize: 10 AWG
• Termination: Solder contacts
• Locking device: Quick Lock (latch)

Material

• Contact plating: Ag
• Contacts: Copper Alloy
• Shell: Zinc diecast, KTL coating
• Insert: Polyamide (PA 6.6)
• Locking element: Zinc diecast
• Strain relief: Polyacetal (POM)

Environmental

• Temperature range: -30 °C to +80 °C
• Flammability: UL 94 V-0
• Protection class: IP 50 (mated condition)
• Solderability: Complies with IEC 68-2-20
