Neutrik - NL4MPXX-3 - SPEAKON PANEL 4POLE

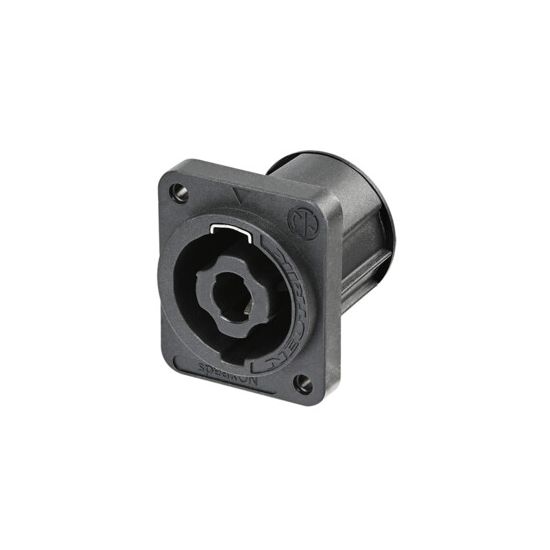

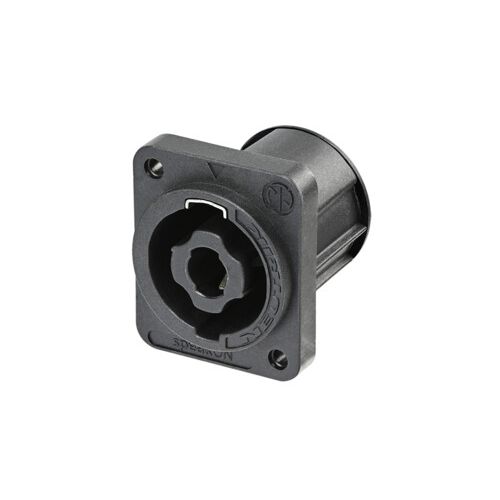

Neutrik | NL4MPXX-3 - SpeakON Chassis Connector 4 Pole Male

This connector is fully compliant to the device standard IEC 62368-1, due to its component certification according to IEC 61984.

4 pole chassis connector, black D-size flange, self tapping screw holes (A-screw), 3/16" flat tabs.

The speakON panel mount connectors are the standard chassis connectors for loudspeaker / amplifier interconnections. They feature a unique metal locking system, making contact only once fully locked. The speakON receptacles are robust, versatile and easy to terminate.

• IEC 61984 certified > IEC 62368-1 compliant
• Glass reinforced V-0 materials make it extremely robust and dependable
• Precise keyway for secure mating
• Accurate twist lock latching system
• Metal insert in locking area

Product: NL4MPXX-3
Gender: Male

Electrical

• Contact resistance: ≤ 2 mΩ
• Dielectric strength: 2.8 kVac
• Insulation resistance: >0.1 GΩ (after dampheat)
• Rated current per contact: 25 A rms continuous (audio rating significantly higher, depending on signal)
• Rated voltage: 250 V ac
• Attention: speakON is NOT to be used as an AC mains or power supply connector!

Mechanical

• Lifetime: > 5000 mating cycles
• Termination: 3/16" flat tabs (e.g. NLFASTON)
• Locking device: Quick Lock
• Mounting direction: Rear mounting
• Chassis shape: D
• Layout: Standard hole position, self tapping screw holes (A-Screw)

Material

• Contact plating: Ag
• Locking element: Stainless Steel
• Shell: Polyamide (PA 6.6)
• Contacts: Copper Alloy

Environmental

• Flammability: UL94 V-0
• Temperature range: -30 °C to +80 °C
