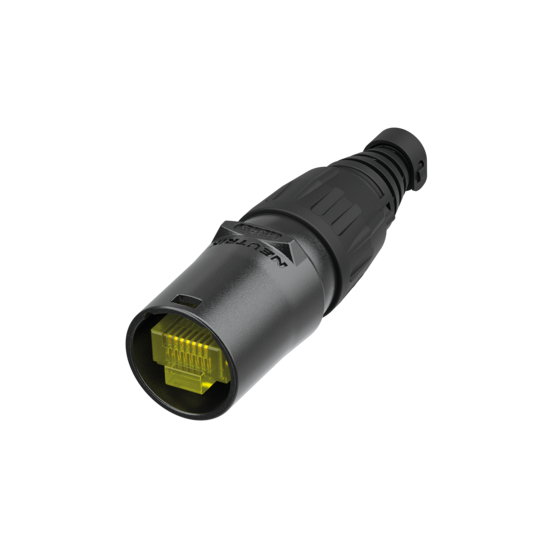

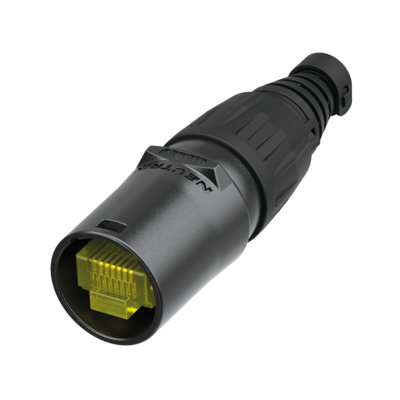

Neutrik | NE8MX-B - EtherCON Connector Male Black

Neutrik | NE8MX-B - EtherCON RJ45 Connector Male

RJ45 cable connector carrier for pre-assembled RJ45 plugs consists of black chromium shell, bushing and boot. Packed with two cable protection elements for cable diameter up to 8 mm. Cable connector carrier does not include a RJ45 plug.

The etherCON cable connector carrier upgrades a conventional RJ45 connector to an extremely robust lockable solution.

ATTENTION: Does not intermate with the CAT6 chassis connectors NE8FDY-C6 and NE8FDY-C6-B.

• The RJ45 system for harsh and demanding environment
• Cable connector carrier accepts the most common RJ45 plugs (see list at downloads)
• Rugged diecast shell and unique chuck type strain relief
• Protects Ethernet connections in a variety of commercial type applications and is designed to prevent breakage of the fragile components of standard RJ45 connectors
• Flat spot on the housing for better orientation
• Allows assembly of pre-assembled conventional RJ45 cables
• Accessories include color coded boots in 9 standard colors

Product: NE8MX-B
Gender: male
Cable connectors do not include RJ45 plug. RJ45 cable assembly must be provided by end user!

Mechanical

• Cable O.D.: 4.5 mm - 8 mm
• Insertion force: ≤ 20 N
• Withdrawal force: ≤ 20 N
• Lifetime: > 1000 mating cycles

Material

• Boot: Polyamide (PA 6)
• Shell: Zinc diecast (ZnAl4Cu1)
• Shell coating: Black KTL
• Strain relief: Polyacetal (POM)

Environmental

• Temperature range: -30 °C to +80 °C
