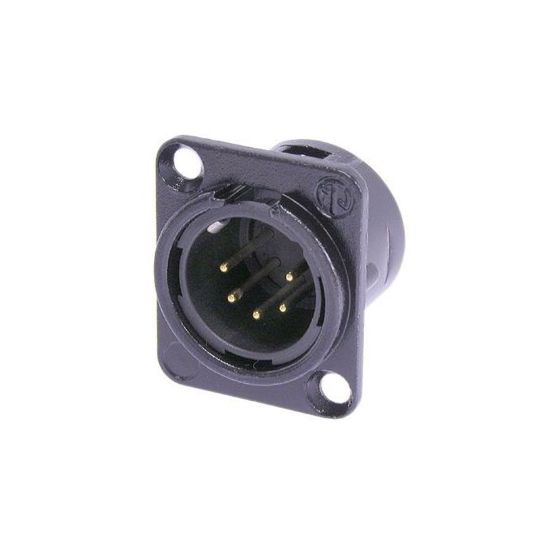

Neutrik | NC5MD-L-B-1 - XLR 5P chassis connector black Male
Neutrik | NC5MD-L-B-1 - XLR 5P chassis connector black Male

Neutrik | NC5MD-L-B-1 - XLR 5P chassis connector black Male

€ 9,22 Excl. BTW
Beschikbaarheid:
Op voorraad
Art. code
NE-81.0100

Neutrik | NC5MD-L-B-1

5 pole male receptacle, solder cups, black metal housing, gold contacts

Universal D-size metal body XLR panel mount series. UL recognized component.

Features

  • Robust "D" metal shell
  • Standardized D sized 24 mm panel cutout
  • Solder cups on 3 - 7 pole version
  • Product: NC5MD-L-B-1
  • Connection Type: XLR
  • Gender: Male
Electrical
  • Capacitance between contacts: ≤ 7 pF
  • Contact resistance: ≤ 5 mΩ
  • Dielectric strength: 1.5 kVdc
  • Insulation resistance: > 10 GΩ (initial)
  • Rated current per contact: 7.5 A
  • Rated voltage: < 50 V
Mechanical
  • Insertion force: ≤ 20 N
  • Withdrawal force: ≤ 20 N
  • Lifetime: > 1000 mating cycles
  • Wire size: max. 1.0 mm²
  • Wire size: max. 18 AWG
  • Wiring: Solder contacts
  • Locking device: Latch lock
  • Chassis shape: D
Material
  • Contact plating: 0.2 µm Au hard alloy over 2 µm Ni
  • Contacts: Brass (CuZn39Pb3)
  • Insert: Polyamide (PA66)
  • Locking element: Steel Ck67
  • Shell: Zinc diecast (ZnAl4Cu1)
  • Shell coating: Black KTL
Environmental
  • Approvals: UL
  • Flammability: UL 94 V-0
  • Standard compliance: IEC 61076-2-103
  • Protection class: IP 40
  • Solderability: Complies with IEC 68-2-20
  • Temperature range: -30 °C to +80 °C
Meer informatie
Merk Neutrik
nc5md-l-b-1 (77.70 kB)
