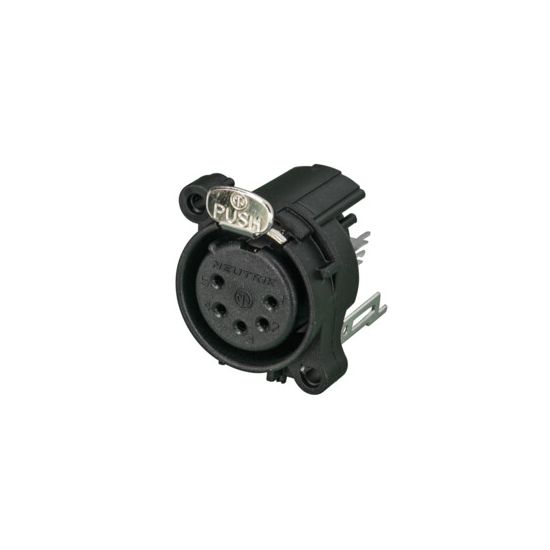

Neutrik | NC5FAV - XLR 5P vertical chassis conn black Female

Neutrik | NC5FAV

Direct replacement / successor: NC5FAV1

5 pole female XLR receptacle, grounding: separate ground contact to mating connector shell and front panel, vertical PCB mount

The 'State of the Art' receptacle. Round plastic body XLR PCB mount panel connector. These have the smallest size and highest packing density (23 mm between centres). New designed tulip type contacts with gold plating of contact area and tin plated pcb termination area.

Features

• Smallest XLR receptacles, highest packing density
• Plastic housing, steel latch lock
• Tulip type female contact
• Polished contact areas and hard gold plating
• Housing flammability UL 94 V-0

• Product: NC5FAV
• Connection Type: XLR
• Gender: Female

• Capacitance between contacts: ≤ 7 pF
• Contact resistance: ≤ 6 mΩ
• Dielectric strength: 1.5 kVdc
• Insulation resistance: > 10 GΩ (initial)
• Rated current per contact: 3 A
• Rated voltage: < 50 V
• Grounding options: Separate ground contact to mating connector shell and front panel

• Insertion force: ≤ 20 N
• Withdrawal force: ≤ 20 N
• Lifetime: > 1000 mating cycles
• Wiring: Vertical PCB mount
• Locking device: Latch lock
• Mounting direction: Rear mounting
• Chassis shape: A
• Mounting: A-Screw

• Contacts: Bronze (CuSn6)
• Insert: Polyamide (PA66)
• Locking element: Steel Ck67
• Locking element plating: Nickel
• Shell: Polyamide (PA 6.6 30 % GR)

• Flammability: UL 94 V-0
• Standard compliance: IEC 61076-2-103
• Protection class: IP 40
• Solderability: Complies with IEC 68-2-20
• Temperature range: -30 °C to +80 °C
