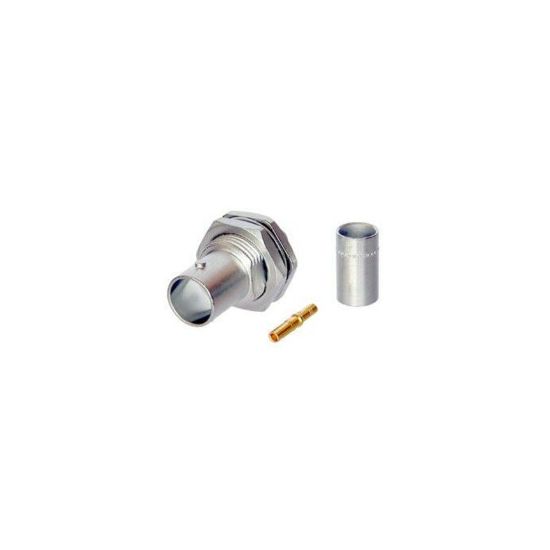

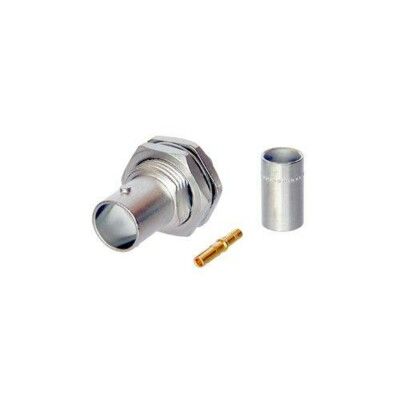

Neutrik | NBNB75GLP9 - BNC Chassis Connector Female

Neutrik | NBNB75GLP9 - BNC Chassis Conneector Female

BNC cable jack for panel mount, grounded.

Neutrik's BNC cable jacks for panel mount offer a true 75 Ω design for serial and digital (HD) signals. The machined brass connector body provides an extremely rugged and non-abrasive connection over long term use.

Suitable cables:
Belden 1505A, Belden 8241F, Canare L-4CFB, CommScope 5565, Draka 0.8/3.7 AF, Draka 755-801 (803, 804), Gepco VPM2000, Suhner S04263, Sommer 600-0451

Crimp size:
Pin: 1.6 mm (square)
Shield: 6.47 mm (hex)

• Gold plated center contact
• True 75 Ω design meets the stringent HD requirements
• Grounded panel mount

Product: NBNB75GLP9
Connection Type: BNC 75 Ω
Gender: female

Electrical

• Contact resistance: ≤ 3 mΩ (inner)
• Contact resistance: ≤ 2 mΩ (outer)
• Dielectric strength: 1,5 kVdc
• Impedance: 75 Ω
• Insulation resistance: > 5 GΩ
• Rated voltage: <50 V
• VSWR: ≤1.050/>32 dB up to 1 GHz
• VSWR: ≤1.065/>30 dB up to 2 GHz
• VSWR: ≤1.100/>26 dB up to 3 GHz

Mechanical

• Cable O.D.: 6.3 mm
• Cable retention: > 30 N (Center)
• Crimp size: 6,47 Hex crimp (shield) acc. IEC 60803 (die designation E)
• Crimp size (pin): 1,6 Square crimp (pin) acc. IEC 60803 (die designation 2)
• Insertion force: < 25 N
• Lifetime: > 1000 mating cycles
• Locking device: Bayonett
• Mounting direction: Rear mounting
• Chassis shape: 12.7 mm
• Cable anchoring: Jacket crimping

Material

• Contacts: Brass (CuZn35Pb2), 0.2 µm AuCo (Center contact)
• Insert: PTFE
• Shell: Brass (CuZn39Pb3)
• Shell plating: Optalloy®

Environmental

• Temperature range: -30 °C to +85 °C
• Contact crimpability: Complies with IEC 60803 and IEC 60352-2
