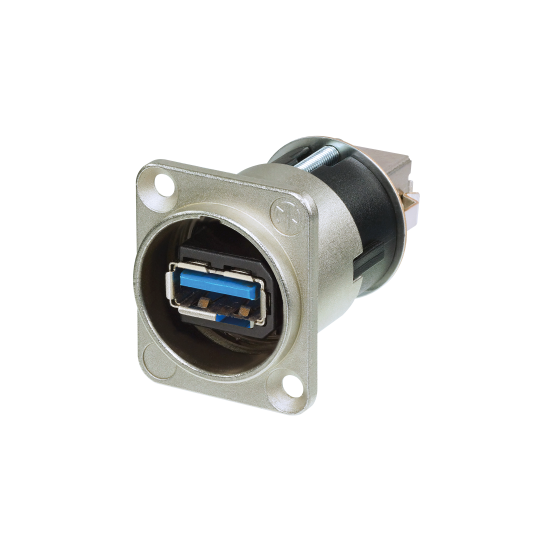

Neutrik | NAUSB3 - USB 3.0 gender changer nickel type A/B

Neutrik | NAUSB3-B

Reversible USB 3.0 gender changer (type A and B), Nickel D-housing

The NAUSB3 is a reversible USB 3.0 feed through adapter. The standardized D-shape housing of the adapter fits into conventional patch panels and offers an additional protection for the connector.

Not compatible with NKUSB-* cables.

Features

• USB 3.0 feedthrough adapter
• Reversible insert offering type A or B on front or rear end
• Standard D-shape housing
• Removable screen for chassis grounding
• Meets USB 3.0 specifications

• Title: NAUSB3
• Connection type: Adapter
• Gender: Female

Electrical

• Reading / Writing speed: > 200 MB/s

Mechanical

• Wiresize: N/A
• Mounting direction: Front mounting
• Chassis shape: D
• Lifetime: > 1000 mating cycles

Material

• Contact plating: Au
• Contacts: Bronze (CuSn)
• Insert: PBTP 15 % GR
• Shell: Zinc diecast (ZnAl4Cu1)
• Shell plating: Nickel

Environmental

• Flammability: UL 94 V-0
• Standard compliance: USB 3.0 specifications
• Temperature range: -25 °C to +85 °C
