Yamaha - DM7 Compact
Beschikbaarheid: Op voorraad
Yamaha - DM7C - Digital mixing console

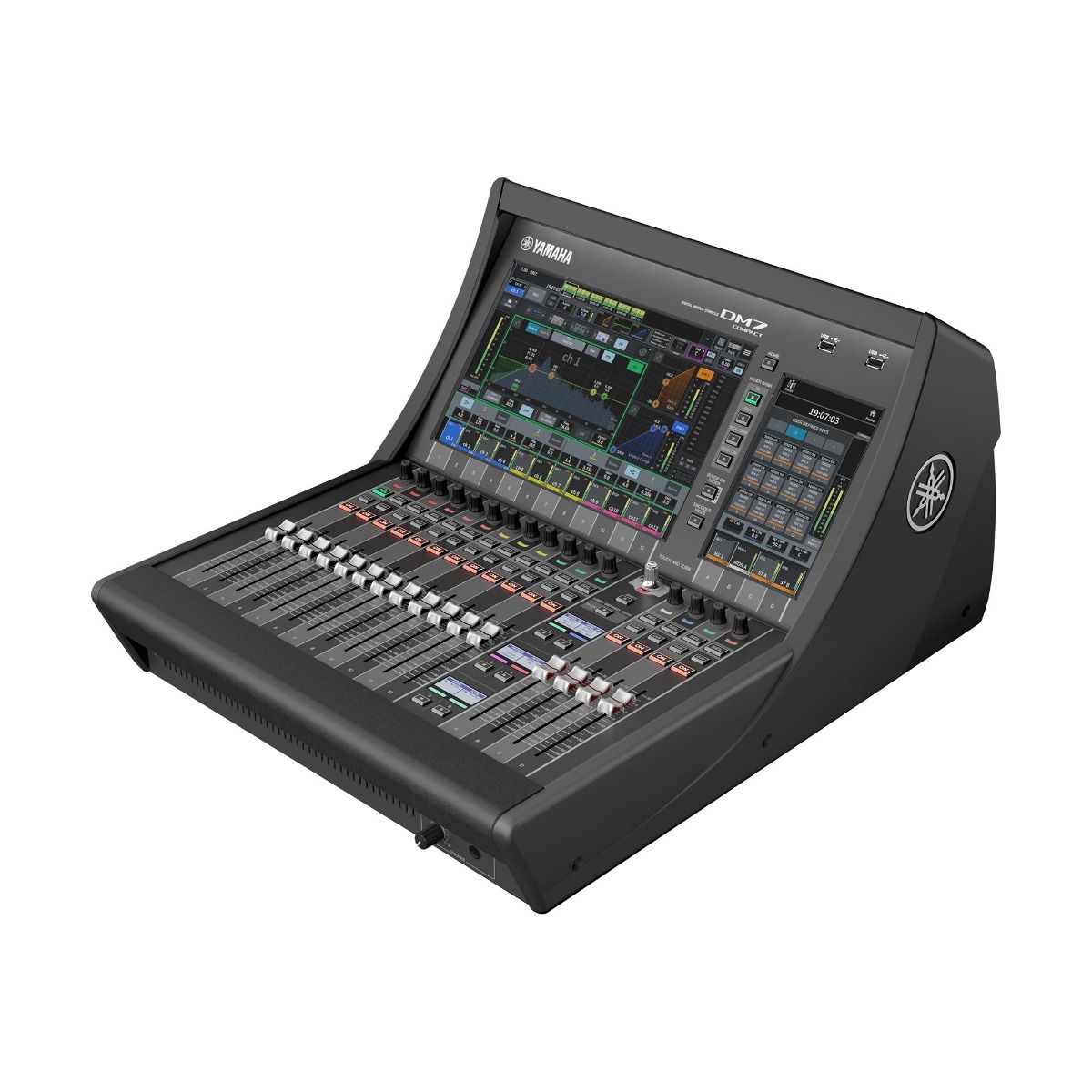

The DM7 Compact is a Dante-equipped versatile digital mixing console with unparalleled sound quality, ease of operation, and high reliability that make it perfect for a wide range of applications. The DM7 Compact is configured with 12 + 4 faders and a 1 x 12” + 1 x 7” multi-touch screen, and a rack-mountable with an optional RK1 rack mount kit.
Features:
Input mixing channels: 72 mono
Buses: 48 Mix + 12 Matrix + 2 Stereo
Display: 12.1" multi-touch screen x 1, 7" multitouch screen x 1
Faders: 16 (12 + 4)
Analog I/O: 16 inputs / 16 outputs
Dante: 144 in / 144 out
AES/EBU: 1 out
Slot: PY Slot x 1
USB Audio Interface: 18 in / 18 out
Power supply: Redundant power supply built-in
Power consumption: 240 W
Dimensions (W x H x D): 468 mm x 324 mm x 564 mm (18.5" x 12.8" x 22.2")
Net Weight: 16.5 kg (36.4 lb)
Mixing Capacity
Input Channels: 72 mono
Mix Buses: 48
Matrices: 12 (Input to Matrix supported)
Stereo Buses: 2
Mono Buses: 1 (Stereo B can be changed)
Cue Buses: 2

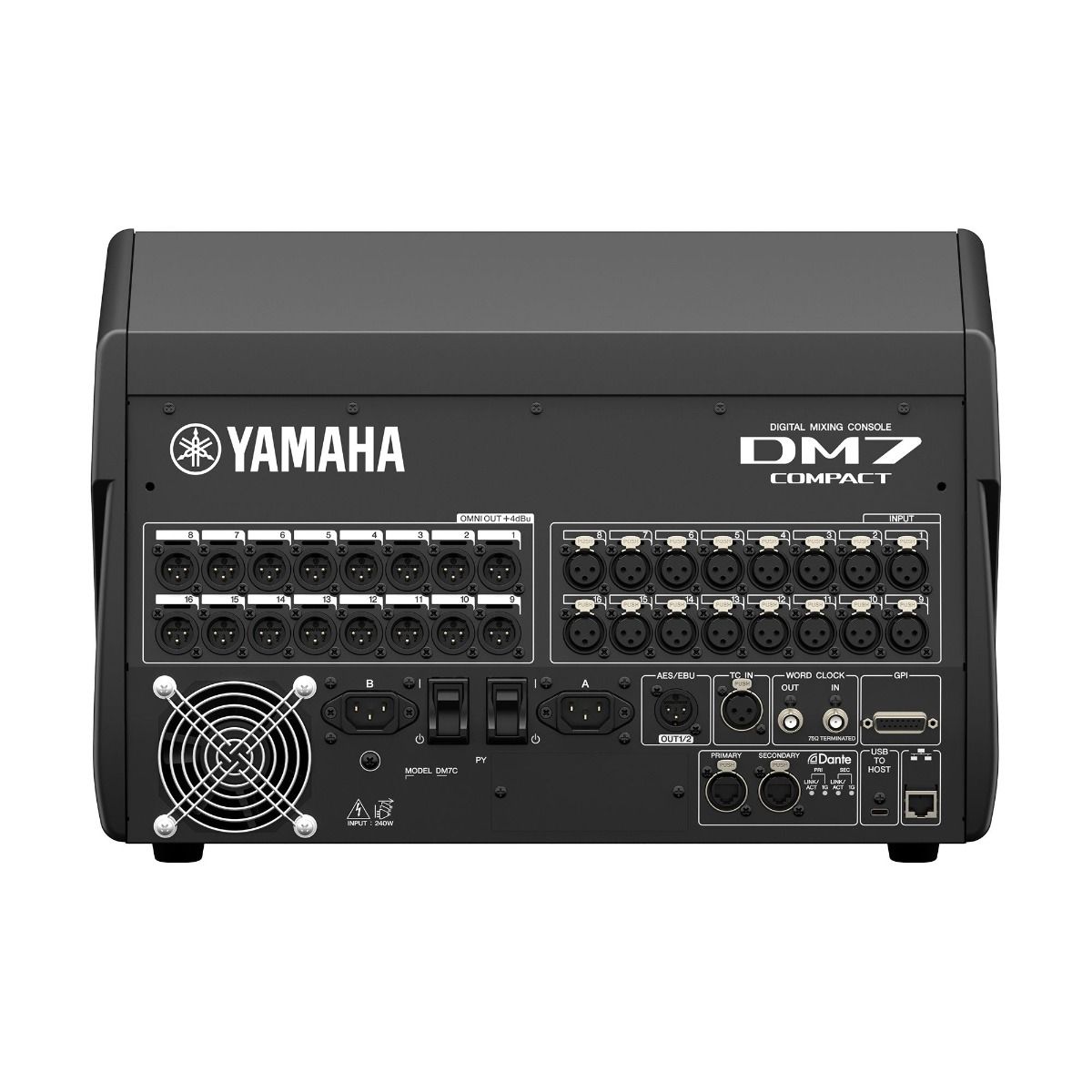

I/O Connectors
Analog Input: 16
Analog Output: 16
Dante: Primary / Secondary
AES/EBU Input: 0
AES/EBU Output: 1 (2ch)
Expansion Slot (PY Slot): 1
Word Clock I/O: In / Out
MIDI: No (MIDI protocol supported on USB to HOST)
GPI: 5 in / 5 out
USB TO DEVICE: 2 (File Save / Load, 2 Track Rec / Play)
USB TO HOST: 1 (USB Type-C, USB2.0)
Ethernet: Yes
Meter Bridge: On screen
Lamp: 0 (Bulit-in LED Strip Light)
Video Out: No
TC In: Yes
Phones: 1
AC: 2 (V-Lock Type)
External Redundant Power Supply: Built-in dual power supply
Scene Memory
Number of Scenes: 500
Recall Safe: Yes
Focus Recall: Yes
Fade Time: Yes
Preview: Yes: Future Update
Selective Load / Save: Yes
Global Paste: Yes
Event List: No
Overlay: No
Isolate: No
Tactile Control Keys: No
Input Channel Functions
Input A/B: Yes
Gain Compensation: Yes
Digital Gain: Yes (-96 dB to +24 dB)
Attenuator: Yes (-96 dB to +24 dB)
HPF: 20 Hz to 2,000 Hz, -6/-12/-18/-24 dB/oct Selectable
PEQ: 4 Band Full PEQ (4 algorithms, RTA overlay supported)
LPF: 20 Hz to 20 kHz, -6/-12 dB/oct
Dynamics 1: Legacy Comp / Comp260 / Expander / Gate / Ducking / De-Esser
Dynamics 2: Legacy Comp / Comp260 / Expander / Gate / Ducking / De-Esser / FET Limiter / Diode Bridge Comp
Input Delay: Yes (0 ms to 1,000 ms)
Pan: Center Nominal / LR Nominal
DCA Group: 24 (Output DCA supported)
DCA Rollout: Yes
MUTE Group: 12
Number of Inserts: 4 slots on 1 insert point
Dan Dugan Automixer: Yes (Up to 64ch)
Direct Out: Yes
Output Channel Functions
PEQ: 8 Band Full PEQ
GEQ: Virtual Rack (EQ Rack)
Dynamics 1: Legacy Comp / Comp260 / Expander / Gate / Ducking / De-Esser / FET Limiter / Diode Bridge Comp
Output Channel Delay: Yes (0 ms to 1,000 ms)
MUTE Group: 12
Number of Inserts: 4 slots on 1 insert point
Premium Rack
Number of DSP Resources: 64
Mountable Plug-ins: RND Portico5033 / RND Portico5043 / Portico 5045 / U76 / Opt-2A / Comp276 / Buss Comp 369 / MBC4 / DaNSe / EQ-1A / Equalizer601 / Dynamic EQ / Dynamic EQ4 / REV-X / OpenDeck / Analog Delay / Max100 / Vintage Phaser / Dual Phaser / HQ.Pitch
Effect Rack
Number of DSP Resources: 16
Number of Effect Types: 43
EQ Rack
Number of DSP Resources: 32
Mountable Devices: 31BandGEQ / Flex15GEQ / 8Band PEQ (RTA overlay supported)
Dante
Number of I/O Channels: 144 in / 144 out
Number of I/O devices that can be discovered from the console: 127 *1
Number of I/O devices that can be mounted: 24
Number of I/O devices with HA remote control: 24
Dante Patch from Console: Yes
USB to Host
Number of Audio I/O Channels: 18 in / 18 out
USB MIDI: Yes
Monitor
Solo Mode: Yes
Oscillator: Sine Wave 1ch / Sine Wave 2ch / Pink Noise / Burst Noise
Other Functions
Port to Port: Yes
Timecode Reader/Display: Yes
Timecode Chase: No
GPI: Yes (5 in / 5 out)
MIDI: Yes (USB MIDI)
OSC Server: Yes
DAW Remote: Yes
Nuendo Live: Control Integration: Yes
Virtual Soundtrack: Yes
Wireless Mic Monitoring: Yes
RTA: Yes
Delay Compensation: Yes
Outport Pot Delay: Yes(Up to 20 ports)*Future Update
Sub In: Yes
User Levels: Yes
Channel Link: Yes
Temporary Channel Link:Yes *Future Update
Multi Language Channel Names: Yes
Mix/Matrix to Input: Yes
Split Mode: Yes
Assist: Yes (HA / Naming / Fader)

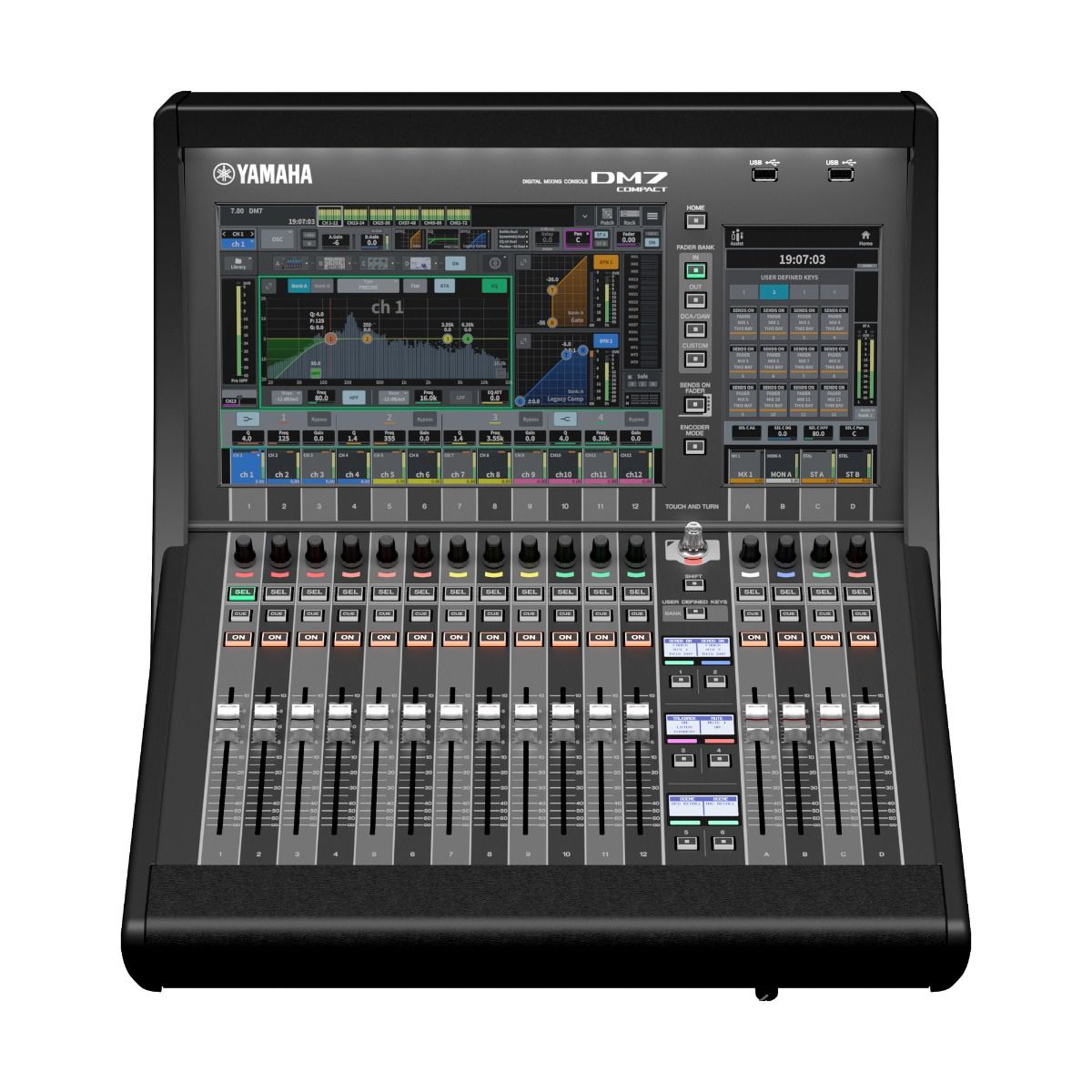

User Interface
Displays: 12.1” multi-touch x 1, 7” multi-touch x 1
Faders: 12 + 4
Channel / Screen Encoders: Yes
Channel Name / Color Displays: No (on-screen)
Custom Fader Banks: Yes
Shift Keys: Yes
User Defined Keys: Surface: 6 (6 keys x 4 banks), Utility Screen (On-screen): 12 (12 keys x 4 banks)
User Defined Knobs: Yes (by 4 encoders below the Utility screen)
Touch and Turn Knobs: Yes
Monitor Level Knobs: No
Arm Rest: Yes
Rack Mountable: Yes
Software
Editor: DM7 Editor (Win/Mac)
StageMix: DM7 StageMix
MonitorMix: Yes
Console Fire Converter: Yes
ProVisionare Control/Touch: Yes
Software Package: Broadcast Package, Theatre Package
Dimensions
W: 468 mm (18.5")
H: 324 mm (12.8") *including the rubber feet
D: 564 mm (22.2")
Net weight: 16.5 kg (36.4 lb)
Included Accessories: Owner’s Manual, AC power cords, Dust cover, Cable hook (for USB TO HOST), Nuendo Live, VST Rack Elements
