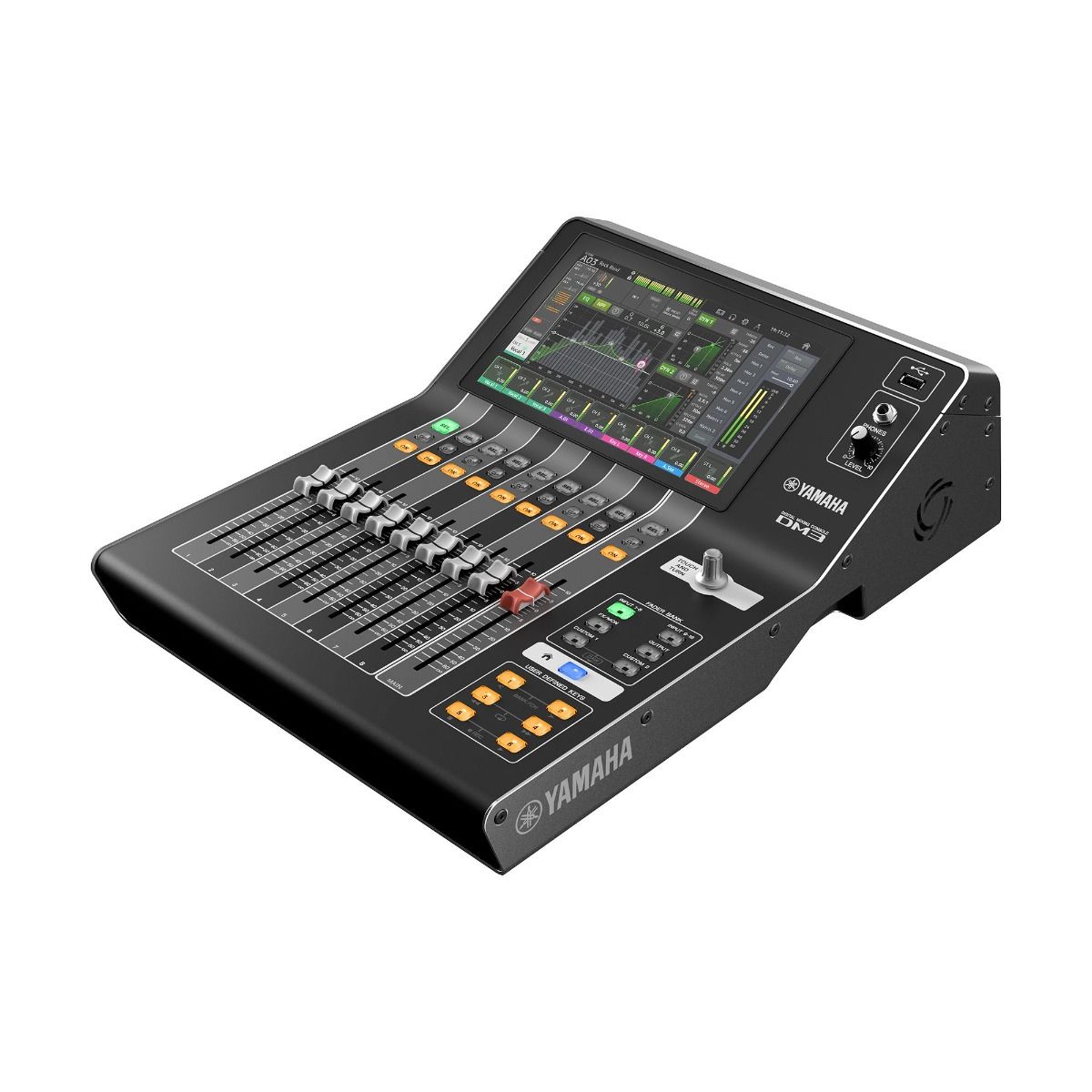

Yamaha - DM3S
The portable DM3 Standard compact digital mixing console features versatile capabilities that make it perfect for a wide range of applications. The DM3 Standard offers superb sound quality, fast and easy setup and operation, and professional-level features.
- 8 + 1 fader configuration
- 9-inch multi-touch screen
- Input mixing channels: 16 mono + 1 stereo + 2 FX return
- Busses: 1 Stereo, 6 Mix, 2 FX, 2 Matrix (Supports Input to Matrix)
- Local I/O: 16 Mic/Line (12 XLR + 4 XLR/TRS Phones Combo) inputs, and 8 (XLR) outputs
- USB: 18 inputs, and 18 outputs
- 18 Effects, and GEQ on Mix 1-6 and Stereo channels
- Sampling rate: 48kHz/96kHz
- Dimensions (W x H x D): 320 mm × 140 mm × 455 mm
- Net weight: 6.5 kg
| Mixing Capacity | Input Channels | 16 mono + 1 stereo + 2 FX return |
|---|---|---|
| Mix Buses | 6 | |
| Matrices | 2 (Supports Input to Matrix) | |
| Stereo Buses | 1 | |
| FX Buses | 2 | |
| Cue Buses | 1 | |

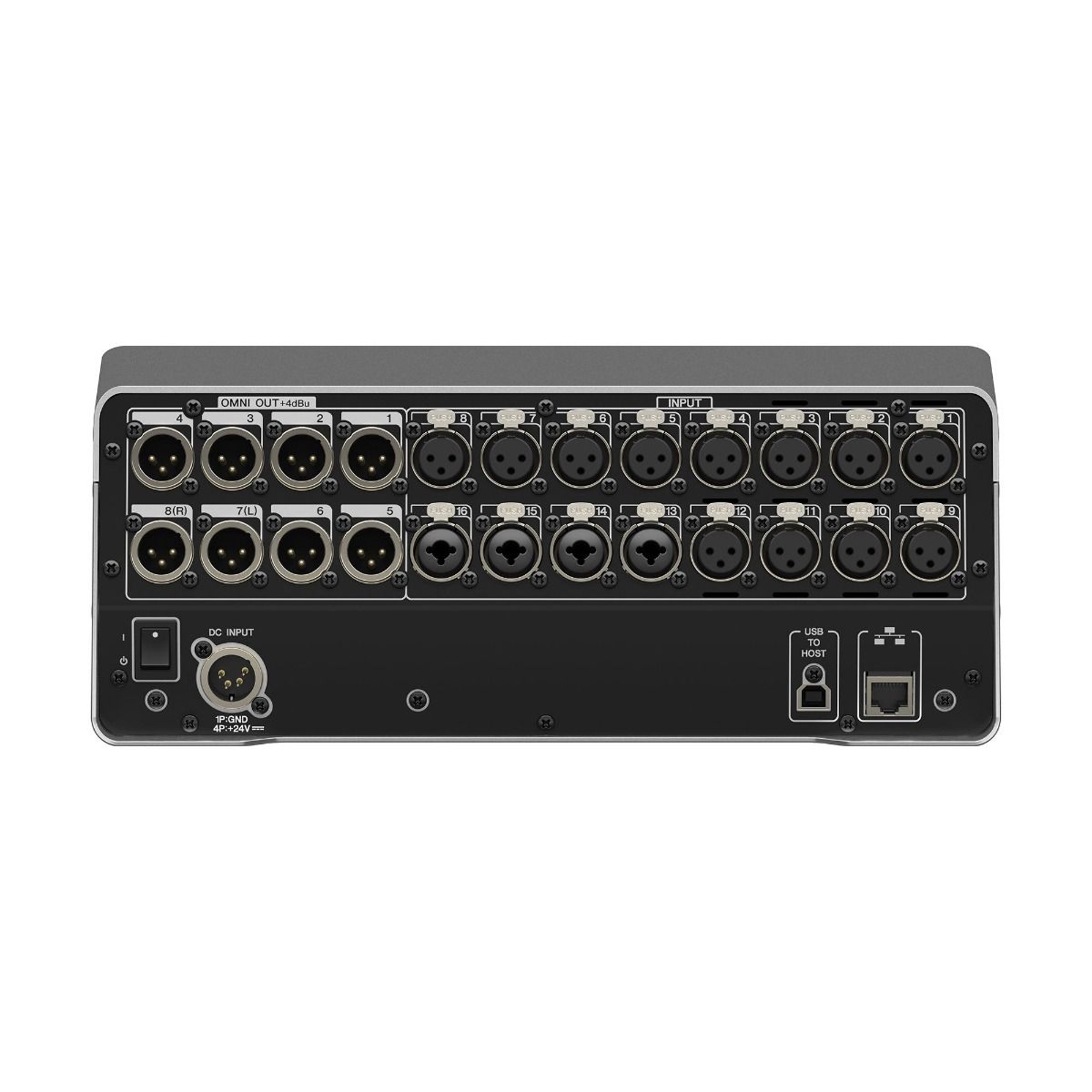

| I/O Connectors | Analog Input | 16 Mic/Line (12 XLR + 4 XLR/TRS Phones Combo) |
| Analog Output | 8 (XLR) | |
| Dante | - | |
| Network | 1 (RJ-45) | |
| USB TO HOST | 1 (USB Type-B, USB2.0) | |
| USB TO DEVICE | 1 (USB Type-A) | |
| Phones | 1 (TRS Phones) | |
| DC | 1 (XLR 4pin, DC power IN) | |

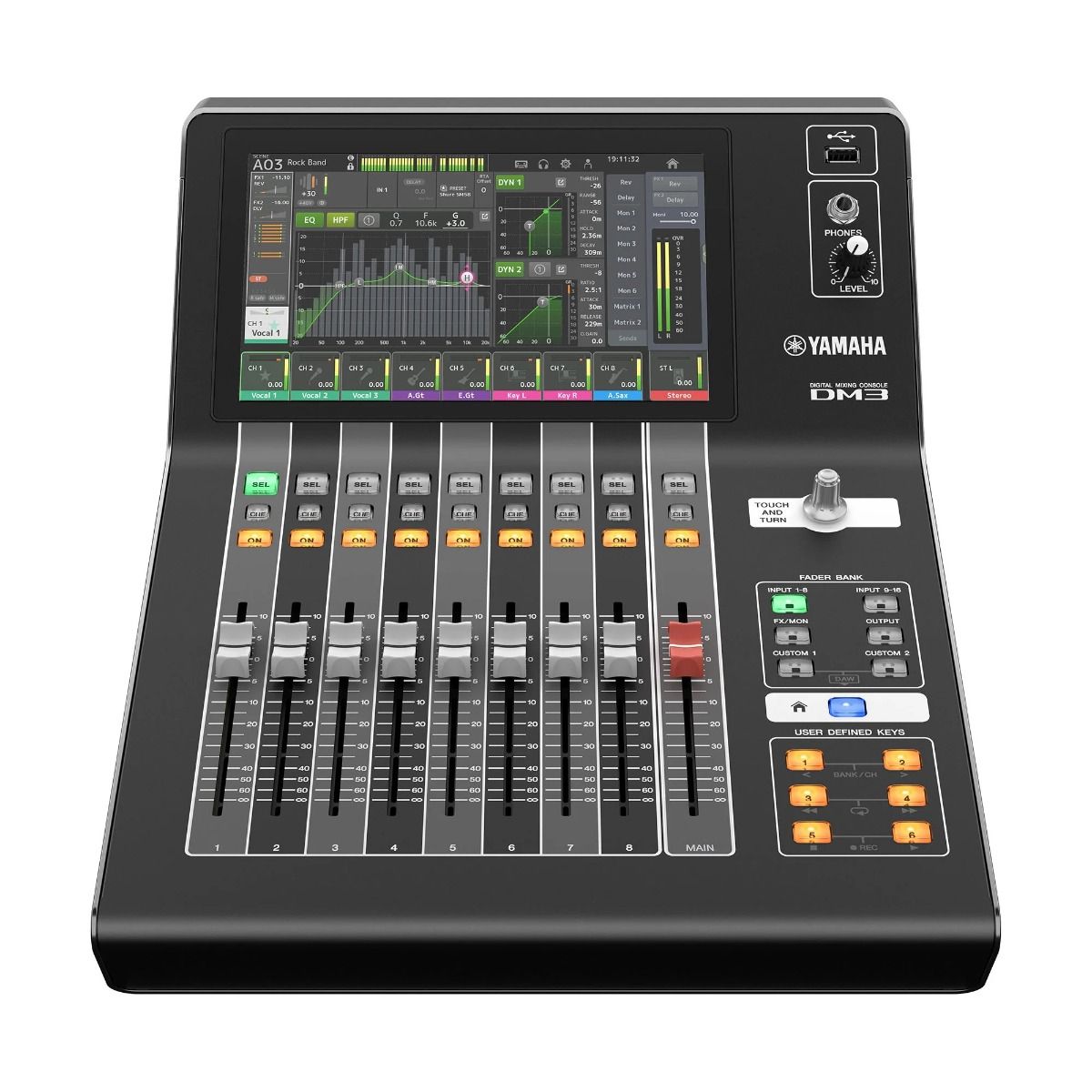

| User Interface | 1x 9-inch multi-touch screen, 9x faders (8 channels + 1 main), 1x "Touch and Turn" rotary encoder | |
| Recording & Playback | PC/Mac | Recording 18 track, Playback 18 track |
| USB storage device | Recording 2 track (USB hard disk / SSD / flash memory), Playback 2 track (USB hard disk / SSD / flash memory) | |
| Sampling frequency rate | 96 kHz / 48 kHz | |
| Signal delay | Less than 1.3 ms, (CH INPUT to OMNI OUT, Fs=96 kHz) | |
| Frequency response | +0.5, -1.0 dB 20 Hz-20 kHz, reference to the nominal output level@1 kHz, INPUT to OMNI OUT | |
| Total harmonic distortion | Less than 0.01 % 20 Hz - 20 kHz@+4 dBu into 10 kΩ, INPUT to OMNI OUT, Input Gain= Min*1 | |
| Hum & noise level | Equivalent input noise | -126 dBu typ., Input Gain= Max. |
| Residual output noise | -84 dBu, ST main off*2 | |
| Dynamic range | 110 dB typ., DA Converter, 106 dB typ., INPUT to OMNI OUT, Input Gain=Min. | |
| Crosstalk | -100 dB, adjacent INPUT/OMNI OUT channels, Input Gain= Min. @1 kHz*3 | |
| Power requirements | DC24 V/2.5 A, PA-L500 (100 V-240 V, 50 Hz/60 Hz) | |
| Power consumption | 43 W | |
| Dimensions | W | 320 mm (12.6") |
| H | 140 mm (5.6") | |
| D | 455 mm (18.0") | |
| Net weight | 6.5 kg (14.3 lb) | |
| Included Accessories | Owner's Manual, Power Adapter, Download Information | |
| Accessories | RK-DM3 | |
| Operating temperature | 0 - 40 °C | |
| Storage temperature | -20 - 60 °C | |
- *1 Total Harmonic Distortion is measured with a –18 dB/octave filter@80 kHz.
- *2 Hum & Noise are measured with an A-Weight filter.
- *3 Crosstalk is measured with a –30 dB/octave filter@22 kHz.
| Merk | Yamaha |
|---|
