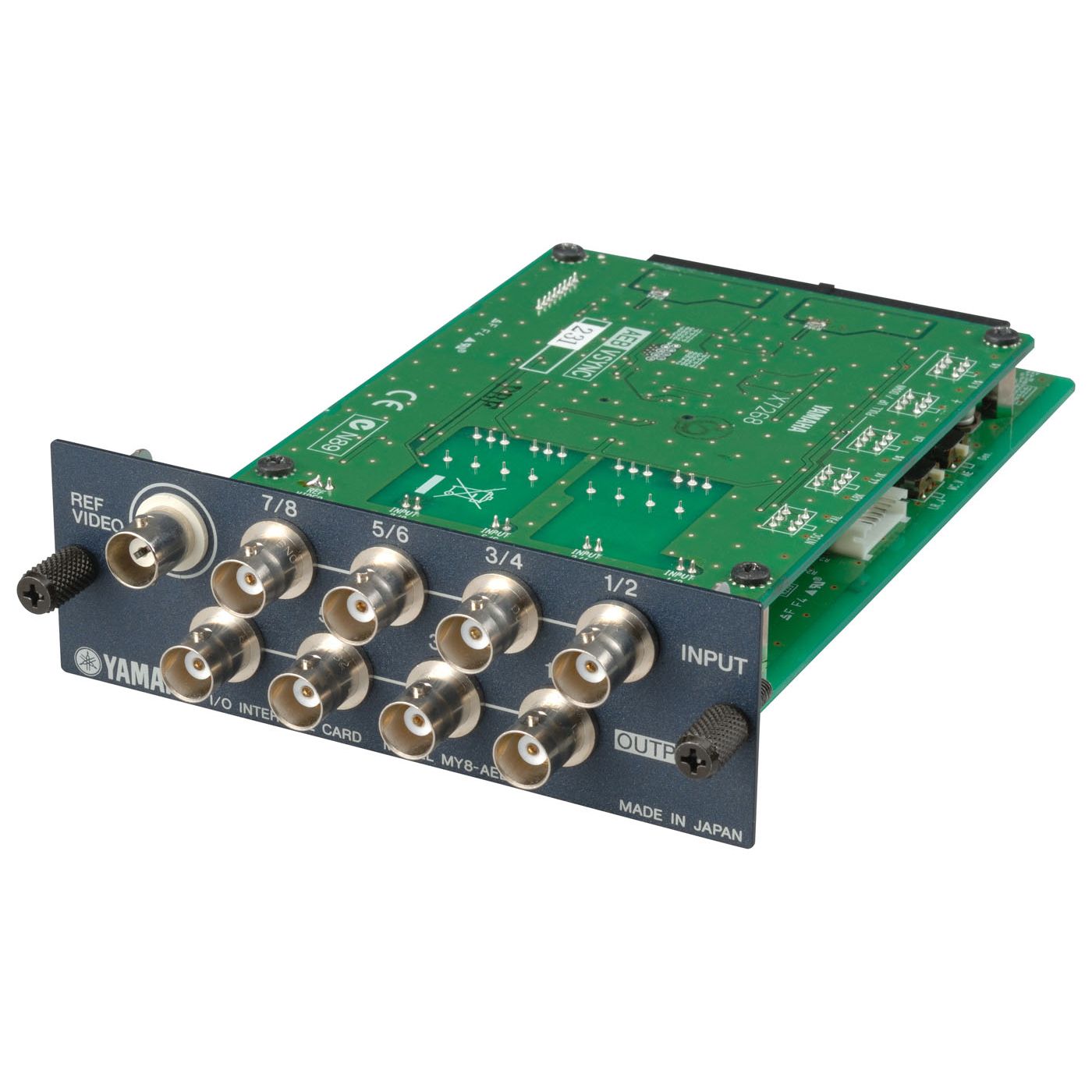

The MY8-AEB is an eight-channel digital input/output card that complies with the AES 3id-1995 standard. It provides video input jacks that allow the host device in which the MY8-AEB is installed to be synchronized to a video signal.
In addition to 8 BNC connectors (4 stereo inputs and 4 stereo outputs) the MY8-AEB has a REF Video input that can be used to receive a PAL or NTSC format Reference video (Black Burst) signal that will provide the synchronization word clock for the device into which the card is installed.
- Channel Count: 8IN / 8OUT / 1REF Video IN
- Format: AES/EBU (AES-3id)
- Resolution: 24 bit
- Connector: 8 x BNC(4 x AES In, 4 x AES Out)
1 x BNC (Reference Video In with "eXi-Clock" sync capability)
| Merk | Yamaha |
|---|
